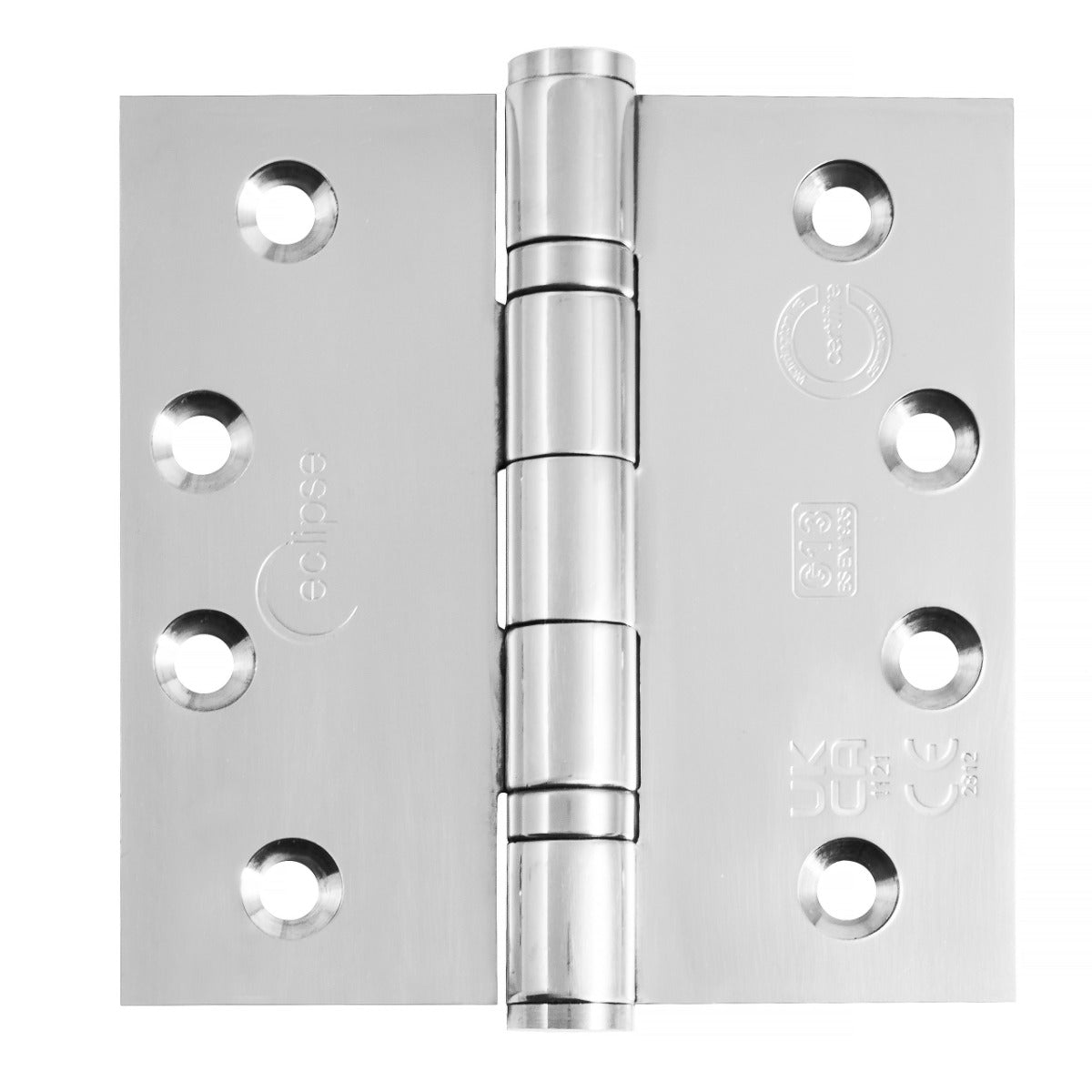

Ball Bearing Broad Butt Projection Hinges - Grade 13 - Fire Rated - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - 102mm x 102mm - Polished Stainless Steel
Product Code: 50539.1

Ball Bearing Broad Butt Projection Hinges - Grade 13 - Fire Rated - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - 102mm x 102mm - Polished Stainless Steel

4.9 · 1954 verified reviews Verified on Trustpilot

Finish:

View full specifications
Pair
Klarna. Pay in 3 interest-free payments of .

Ball Bearing Broad Butt Projection Hinges - Grade 13 - Fire Rated - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - 102mm x 102mm

£13.46

  • Free delivery over £100
  • 30-day returns
  • Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.

Product Details

  • Broad butt projection hinges for double, patio and French doors
  • Hinges allow doors to fold back on its self 180 degrees
  • Ball bearing design
  • One hour fire rated - suitable for use on FD30 and FD60 fire doors.
  • Tested and passed to British standard EN.1935 2002 suitable for doors up to 120kg in weight

Finish

  • Polished Stainless Steel

Dimensions

Available in 1 Size only

(102mm x 102mm x 3mm)


20932.1
Dimension On Diagram
Height
102mm
A
Width
102mm
B
Leaf Width
43mm
C
Projection given
50mm
D
Thickness
3mm
N/A

Important Info Before You Buy

  • Broad butt projection hinges are used to help project or "throw" a door pastan obstruction so it can fold back on it's self 180degrees


  • Suitable for wooden doors
  • Stainless steel base material, suitable for internal or external use.
  • The grade 13 certification allows the hinges to be used on doors up to 120kg in weight and is up to 1 hour fire resistant
  • To meet fire regulations 3 hinges must be fitted per door and intumescent pads must be fitted behind each leaf.

Polished Stainless Steel

  • Non stock product - Please allow 2-4 days for delivery
  • Free delivery on orders over £100 (£5.95 below).
  • 30-day returns
