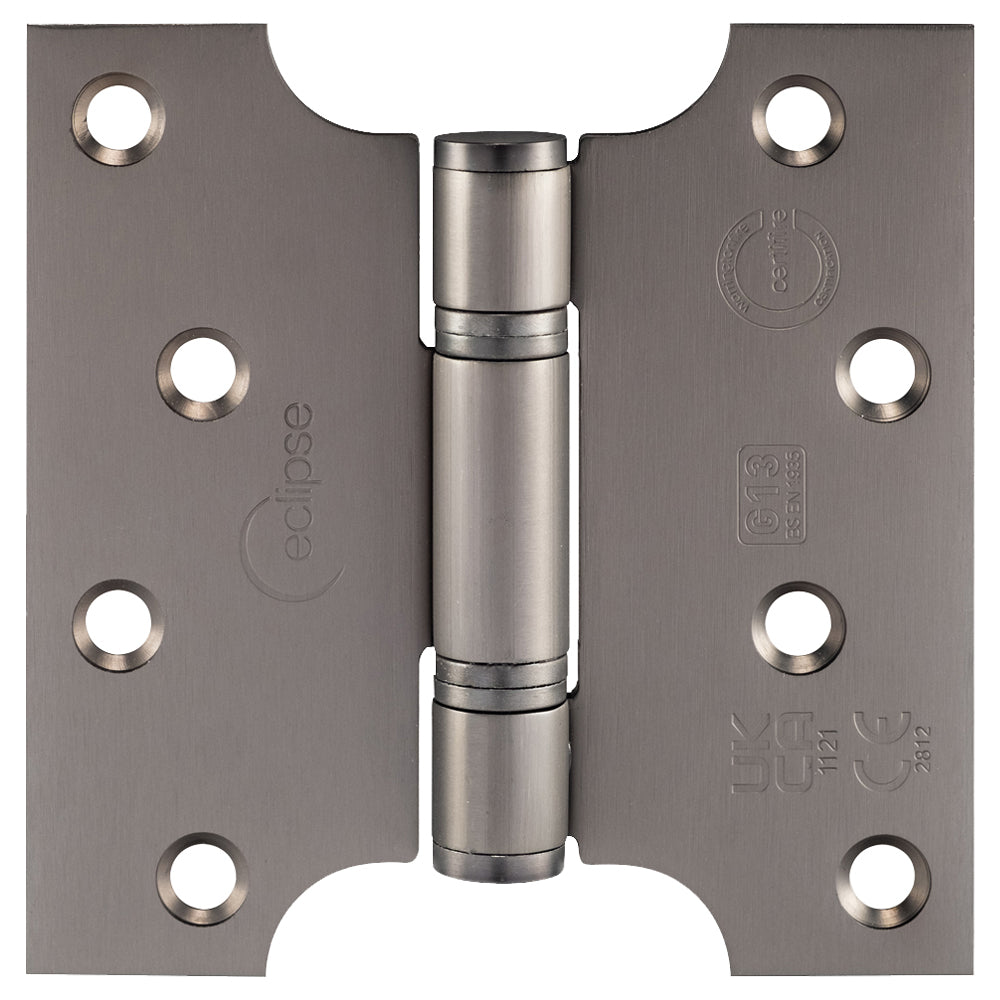

Thrust Bearing Parliament Hinges - Grade 13 - Fire Rated - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - 102mm x 50mm x 102mm - Dark Bronze (Lacquered)
Product Code: 50547.1

Thrust Bearing Parliament Hinges - Grade 13 - Fire Rated - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - 102mm x 50mm x 102mm - Dark Bronze (Lacquered)

4.9 · 1954 verified reviews Verified on Trustpilot

Finish:

View full specifications
Pair
Klarna. Pay in 3 interest-free payments of .

Thrust Bearing Parliament Hinges - Grade 13 - Fire Rated - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - 102mm x 50mm x 102mm

£44.90

  • Free delivery over £100
  • 30-day returns
  • Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.

Product Details

  • Thrust bearing arliament projection hinges for double, patio and French doors
  • Projects doors clear of architraves, window boards or down pipes
  • Hinges allow doors to fold back 180 degrees
  • Suitable for doors up to 120kg (weight limit based on 3 x hinges)
  • Heavy duty - for high use fire doors
  • For exterior / interior use
  • BS EN grade 13 - CE Marked / UKCA Marked
  • Suitable for 60 minute fire doors, when used in conjunction with intumescent hinge pad liners,
  • Measurements are leaf height x inside clearance x fully open width
  • Inside clearance measurement is between the wings of the hinge and is the maximum projection you can achieve on lightweight doors
  • For glazed or solid doors, inset the hinge leaf an additional 15% each side, for example 30% less projection
  • 25 year guarantee

Finish

  • Dark Bronze (Lacquered)

Dimensions

Available in 1 Sizes

(102mm x 102mm x 4mm)


Dimension On Diagram
Height
102mm
A
Width
102mm
B
Leaf Width
26mm
C
Projection given
50mm
D
Thickness
3mm
N/A
  • Non stock product - Please allow 2-4 days for delivery
  • Free delivery on orders over £100 (£5.95 below).
  • 30-day returns

Describe this product detail here.
