Product Code: 48227.1

ANSI Pattern Electronic Release - FD30 / FD60 Fire Rated - Stainless Steel / Black

4.9 · 1954 verified reviews Verified on Trustpilot
View full specifications
Each
Klarna. Pay in 3 interest-free payments of .

ANSI Pattern Electronic Release - FD30 / FD60 Fire Rated - Stainless Steel / Black

£105.30

  • Free delivery over £100
  • 30-day returns
  • Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.

Product Details

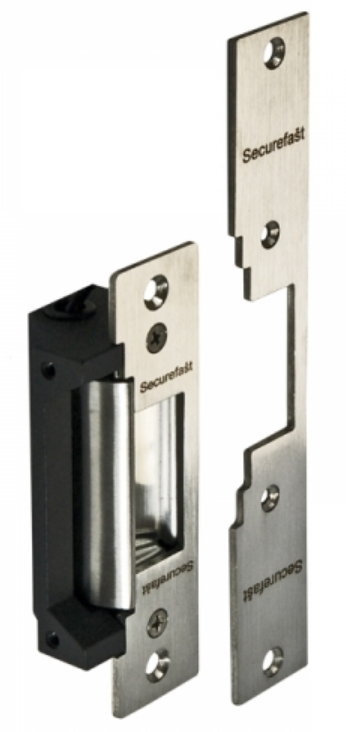

  • The AL900 series electric releases are an ANSI style door release, complete with stainless steel short or long faceplates for use in metal or timber frame applications.

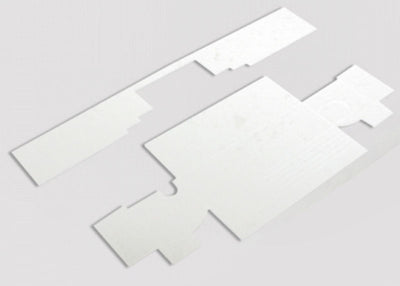

  • Fire rated* - suitable for use on FD30 and FD60 fire doors * when used with the intumescent kit 48228 (see related products)
  • The electric release is designed to work with most leading brand mortice night latch locks.
  • Fail Locked/Unlocked with long and short face plate.
  • This electronic releases can also be set 12V or 24V by simply reconfiguring the wires in a different order.

Finish

  • Satin Stainless Steel
  • Black Dust Box

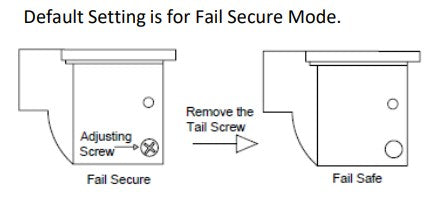

Changing from Fail Secure to Fail Safe

  • This electric release is supplied as fail secure operation but can easily be changed to fail safe by the simple removal of a screw.

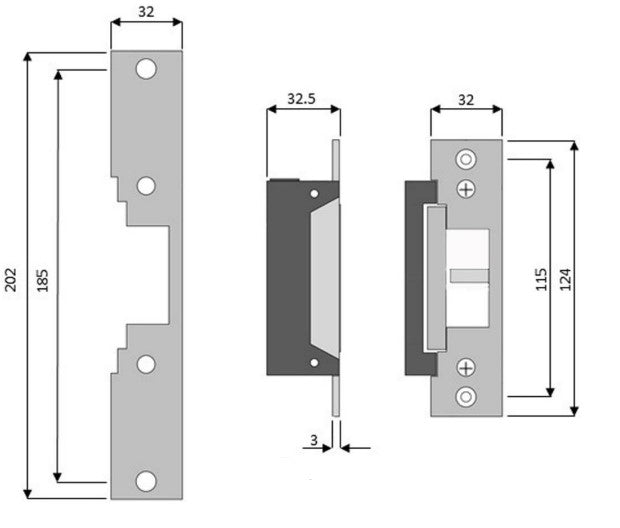

Dimensions

  • Height - 202mm
  • Width - 32mm
  • Depth - 33mm
  • Non stock product - please allow 3-7 days for delivery
  • Free delivery on orders over £100 (£5.95 below).
  • 30-day returns

Describe this product detail here.
