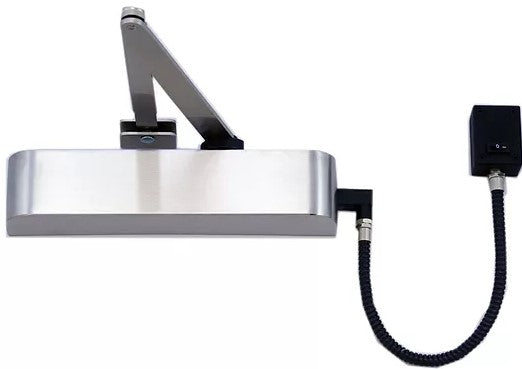

Overhead Door Closer - EN1155 Fixed Power Size 4 - Electromagnetic Hold Open & Swing Free - Fire Rated - CE Marked - Certifire Approved Approved
Product Code: 40272.1

Overhead Door Closer - EN1155 Fixed Power Size 4 - Electromagnetic Hold Open & Swing Free - Fire Rated - CE / UKCA Marked - Certifire Approved Approved

4.9 · 1954 verified reviews Verified on Trustpilot
View full specifications
Each
Klarna. Pay in 3 interest-free payments of .

Overhead Door Closer - EN1155 Fixed Power Size 4 - Electromagnetic Hold Open & Swing Free - Fire Rated - CE / UKCA Marked

£246.00

  • Free delivery over £100
  • 30-day returns
  • Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.

Product Details

Finishes

  • Silver
  • Satin stainless steel
  • Polished stainless steel
  • Polished brass plates
  • Matt black - special order
  • Antique brass - special order
  • Satin brass - special order
  • Matt / dark bronze - special order

Fixing Positions & Mounting Options:

  • Out of the box this door closer can be fitted in three fixing positions:

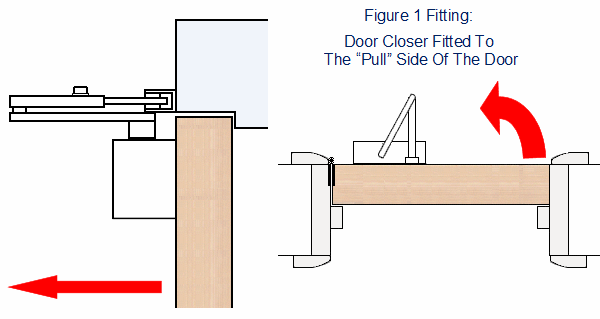

  • Figure 1 - pull side mounting - (covered under the CE mark - suitable for use on fire doors).
    • Closer fitted to the pull side of the door
    • Body fitted to the door with arms fitted to the door frame.
    • In this position the closer arms will project out from the door into the room.

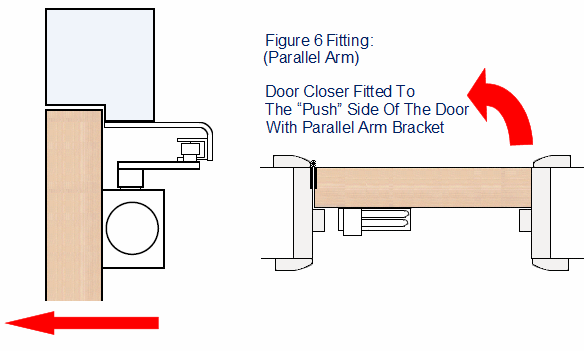

  • Figure 6 - push side mounting - (covered under the CE mark - suitable for use on fire doors).
    • Closer fitted to the push side of the door.
    • Body fitted to the door with arms fitted to the door frame via a parallel arm bracket (supplied with each unit).
    • In this position the closer arms will lie flat against the door running parallel with the door frame.
    • Sometimes known as figure 66.






Fixed Power Size 4:

EN Power Size Setting Maximum Door Width (mm) Maximum Door Weight (kg)
4 1100mm 80kg



Adjustable Closing Speed:

  • The closing speed can be adjusted by turning a small screw in the body of the closer.
  • By turning the screw in the body the rate at which oil flows through the closer changes in turn controlling how fast the closer will shut the door.
  • Speed adjustment can be controlled from approximately the first 180 degrees down to the last 15 degrees of the closing cycle.



Adjustable Latch Action:

  • The last 15 degrees of the closing cycle is known as the latch action (or snap action), it's designed to help give a door closer a little extra force to help it overcome any door seals, or latches that might prevent the door from closing within the frame.
  • The latch action can be adjusted by turning a screw in the body of the closer.
  • By turning the latch action off or very low the door closer will softly close into the frame, by turning the latch action to it's maximum setting the door closer will push into the door frame with extra force.





Closer Dimensions:

  • Body Length - 236mm
  • Body Height - 55mm
  • Body Depth - 38mm
  • Cover Length - 240mm
  • Cover Height - 69mm
  • Cover Depth - 49mm



Opening Forces - BS 8300:

  • This overhead door closer has hold-open and swing-free functions making it suitable for use in applications where ease of access is important and compliance with the requirements of The Equalities Act.
  • There is no minimum door size for this closerto help meet the requirements laid down by The Equalities Act.



Electrical Details:

€¢ Current Draw: 95 Milliamp
€¢ Voltage: 24v DC

Silver

  • Non stock product - please allow 3-7 days for delivery
  • Free delivery on orders over £100 (£5.95 below).
  • 30-day returns

Describe this product detail here.

G Johns & Sons Ltd

G Johns & Sons Ltd · Est. 1888 · GAI · RegAI Registered

020 8360 7771 · sales@gjohns.co.uk

Scan to view product online

Scan for product page

Overhead Door Closer - EN1155 Fixed Power Size 4 - Electromagnetic Hold Open & Swing Free - Fire Rated - CE / UKCA Marked - Certifire Approved Approved

SKU TS7.004.SR.MCA.SILVER  ·  Door Closers  ·  £246.00 inc VAT

Technical

Specification & Dimensions

Technical Drawings

Downloads

DoP-BDC7004-TS7004-Emag-Closer-Declaration-Of-Performance CF5023-TS7-Electro-Magnetic-Hold-Open-Swing-Free-Door-Closer-Certifire-Certifcate
Need it confirmed for your project? Call our team on 020 8360 7771.
