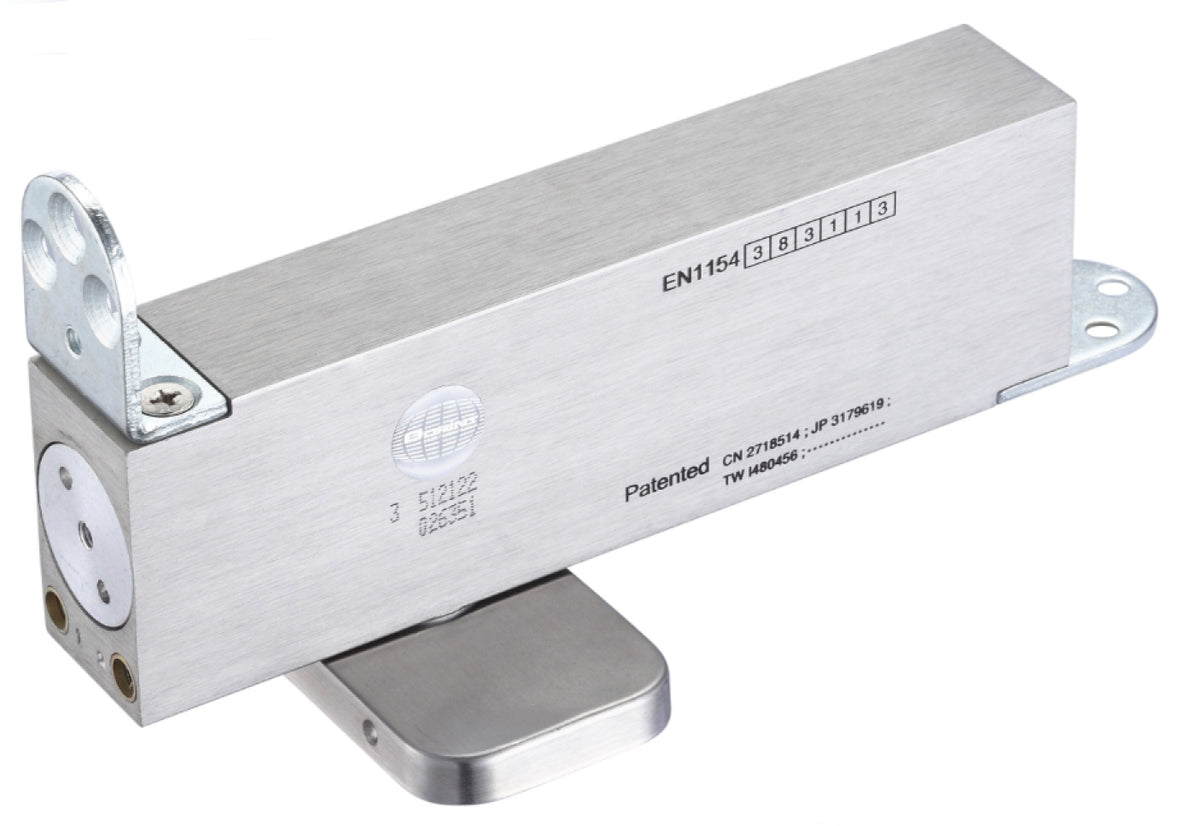

Double Action Bottom Of Door Concealed Door Closer - CE Marked - Fire Rated - EN 1154 Power Size 3 - Satin Stainless Steel
Double Action Bottom Of Door Concealed Door Closer - CE Marked - Fire Rated - EN 1154 Power Size 3 - Satin Stainless Steel

1/2

Product Code: 44318.1

Double Action Bottom Of Door Concealed Door Closer - CE / UKCA Marked - Fire Rated - EN 1154 Power Size 3 - Satin Stainless Steel

4.9 · 1954 verified reviews Verified on Trustpilot
View full specifications
Set
Klarna. Pay in 3 interest-free payments of .

Double Action Bottom Of Door Concealed Door Closer - CE / UKCA Marked - Fire Rated - EN 1154 Power Size 3 - Satin Stainless Steel

£241.22

  • Free delivery over £100
  • 30-day returns
  • Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.

Product Details

  • Double-action self-closing pivot door closer.

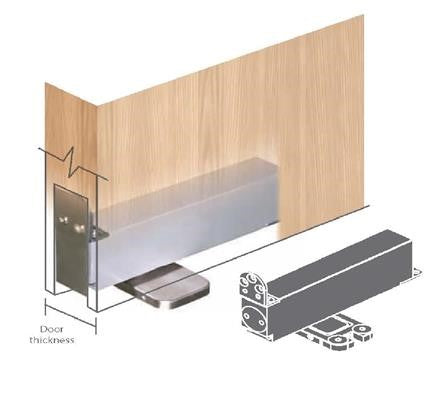

  • Closer is rebated (concealed) into the bottom of the door.
  • Allows the door to swing in both directions.
  • Tested for use on FD30 / FD60 fire doors.

Dimensions

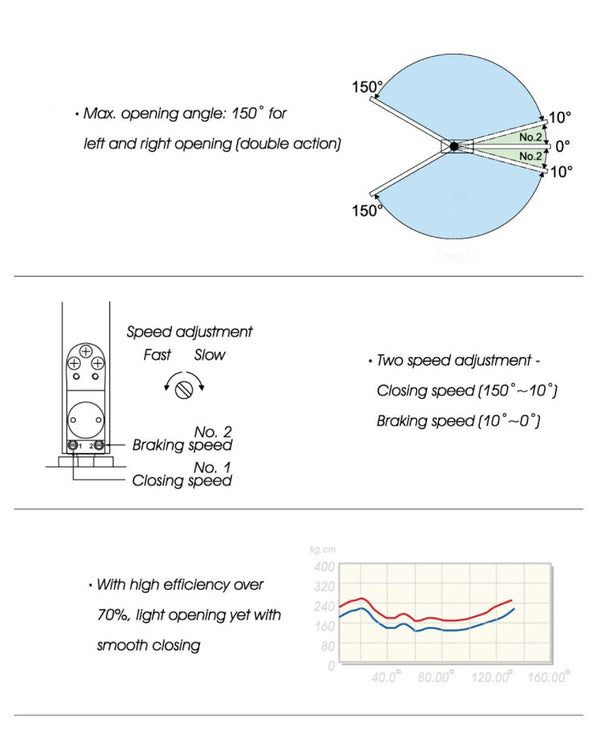

Item Code Minimum Door Thickness Max Door Weight Max Angle Of Opening Adjustable Closing Speed Adjustable Braking Speed
44318.1 40mm 60kg 150º  150º- 10º 10º -“ 0º



Finish

  • Satin stainless steel cover plate

Satin Stainless Steel

  • Non stock product - please allow 3-7 days for delivery
  • Free delivery on orders over £100 (£5.95 below).
  • 30-day returns

Describe this product detail here.

G Johns & Sons Ltd

G Johns & Sons Ltd · Est. 1888 · GAI · RegAI Registered

020 8360 7771 · sales@gjohns.co.uk

Scan to view product online

Scan for product page

Double Action Bottom Of Door Concealed Door Closer - CE / UKCA Marked - Fire Rated - EN 1154 Power Size 3 - Satin Stainless Steel

SKU NS.CID.001  ·  Concealed Door Closers  ·  £241.22 inc VAT

Technical

Specification & Dimensions

Technical Drawings

Downloads

Fire Test Report - FD60 Test CE Performance Data Cert NS.CID.001 Fire Test ReportFire Test Report ISO90001 NS.CID Concealed-Double-Action-Closer-Specification-Sheet Concealed-Double-Action-Closer-Fitting-Instructions Concealed-Double-Action-Closer-Declaration-Of-Performance-DOP
