Product Code: 43536.1

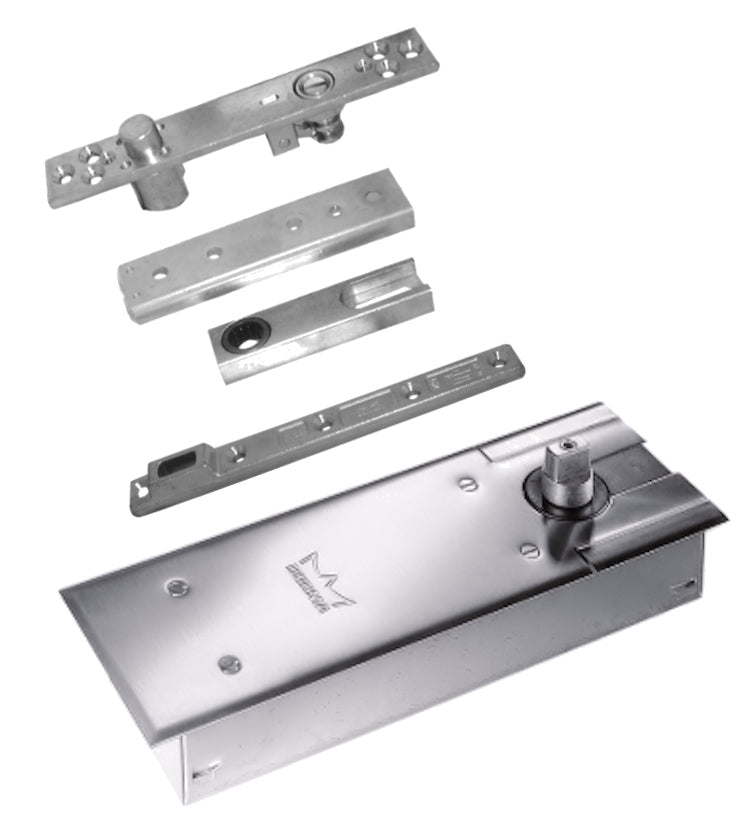

Double Action Floor Spring Door Closer - With Mechanical Hold Open At 90 Degrees - Adjustable Power Size 1-4 - Supplied With Cover Plate & Double Action Accessories
4.9 · 1954 verified reviews Verified on Trustpilot
:
Double Action Floor Spring Door Closer - With Mechanical Hold Open At 90 Degrees - Adjustable Power Size 1-4
£415.90
Double Action Floor Spring Door Closer - With Mechanical Hold Open At 90 Degrees - Adjustable Power Size 1-4
£415.90
- Free delivery over £100
- 30-day returns
- Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.
RegAI
Need further information?
Contact one of the team for advice
- Call - 020 8360 7771
- Email - sales@gjohns.co.uk
Product Details
Floor Plate Finish Options:
- Satin stainless steel.
- Satin brass.
Double Action:

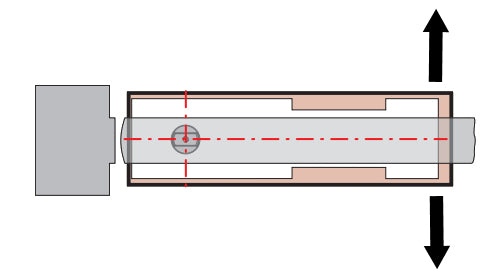

- Allows the door to swing through 175 degrees (allows the door to swing in both directions).
Power Adjustment Via Spring:
- Separate power adjustment, by means of an allen key at the end of the closer body, this closer can be adjusted to suit door widths up to 1110mm wide and up to 120kg in weight (EN power size 1-4)

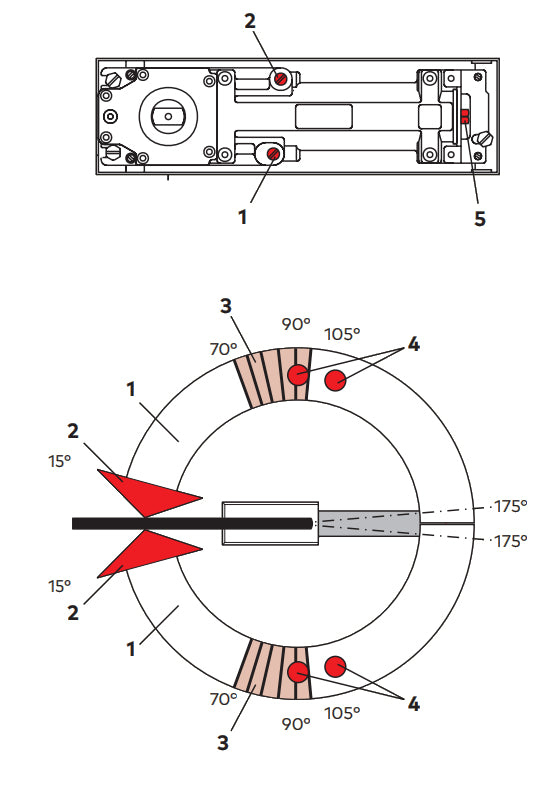

Functions:
- 1. Adjustable closing speed in the range 175° – 15°.
- 2. Adjustable closing speed in the range 15° – 0°.
- 3. Mechanical backcheck (from approx. 70°).
- 4. Hold open function at 90 degrees. For hold open function at 105 degress please contact us.
- 5 Adjustable spring strength (EN 1–4).

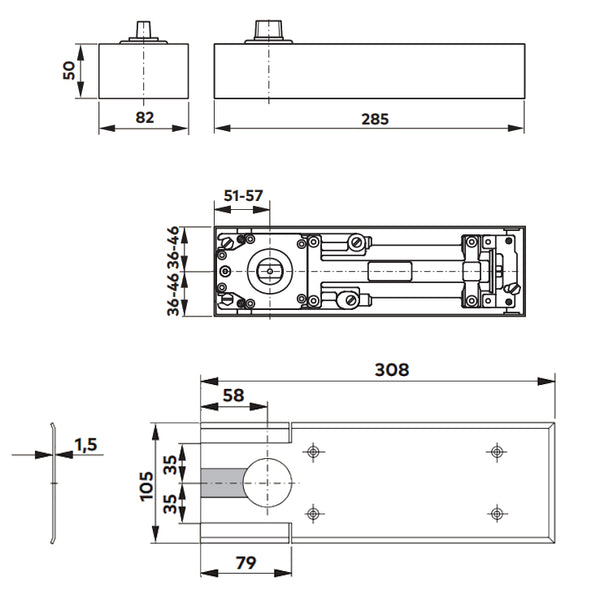

Floor Spring Dimesions:
- Body Length - 285mm
- Body Height - 50mm
- Body Width - 82mm
- Cover Length - 308mm
- Cover Width - 105mm
- Cover Thickness - 1.5mm
Opening Forces - BS 8300:
The opening force (0-30 degrees) is less than 30N.
The opening force (30-60 degrees) is less the 22.5N
- Free delivery on orders over £100 (£5.95 below).
- 30-day returns
