Double Door Lobby / Corridor With Free Swing Door Closers - Ironmongery Kit - Suitable For FD30 & FD60 Fire Doors - Satin Stainless Steel Ironmongery

Our double lobby / corridor kit with electromagnetic swing free door closers is ideal to specify or purchase for double doors in care homes, offices, schools, hotels and hospitals, that require fire doors to be free swinging during normal use.

This non locking kit is supplied with pull handles and push plates to open the door with and electromagnetic swing free door closers.

Supplied with unique swing-free door closers developed specifically to meet the needs of care home facilities. In a class of its own, these closers offers pecific features that reduce the risk of injury to residents as well as eradicating the need to wedge doors open.

ANTI-SLAM: The swing-free mode on closers can allow a door to slam shut. Whether this is accidental, deliberate, or just caused by a draught, it poses a real risk to frail residents. This closer has been specifically developed with an anti-slam function that controls and slows the motion of the door.

DRIFT RESISTANCE: Offers a low-level control on the door, which stops it from drifting from its open position – eradicating the need to wedge doors open, yet still allowing the door to operate freely to the user.

High performance ironmongery including grade 14, concealed nylon bearing fire rated hinges (maintenance free with no grease) and a high quality EN1154 2-5 power overhead door closer.

Products tested for use on 30 minute FD30 and 60 minute FD60 timber fire rated doors and frames.

• Our FD30 kit is supplied with 1mm thick intumescent hinge pad liners
• Our FD60 kit is supplied with 2mm thick intumescent hinge pad liners.

Items supplied in our FD30 fire door kit:

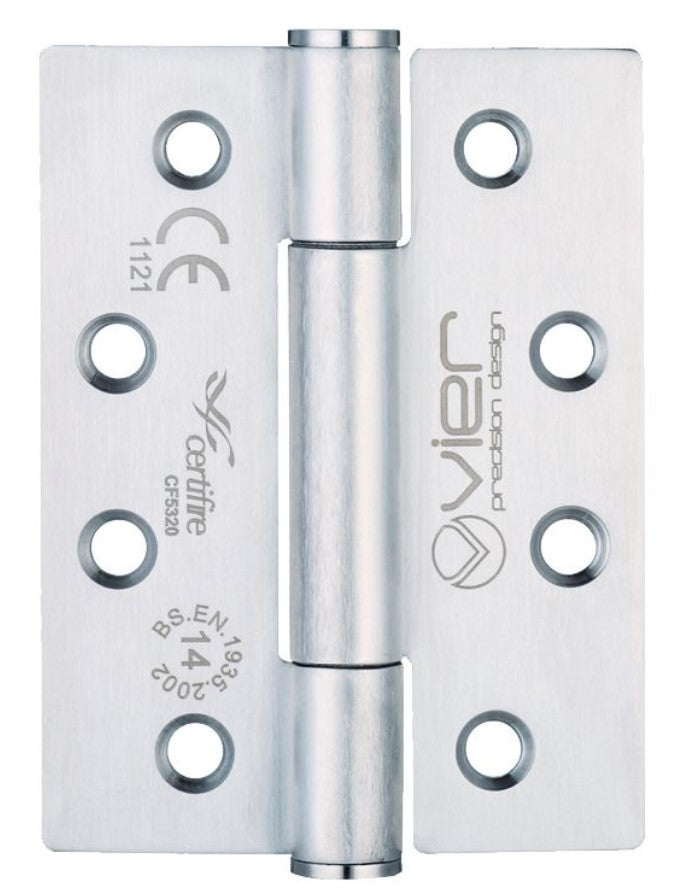

• 6 x (3 Pairs) - 41734.1 - Concealed Nylon Bearing Grade 14 Hinges - Self Lubricating - CE Marked / UKCA Marked - Fired Rated - Certifire Approved - 160kg Weight Limit - 102mm x 76mm - Satin Stainless Steel

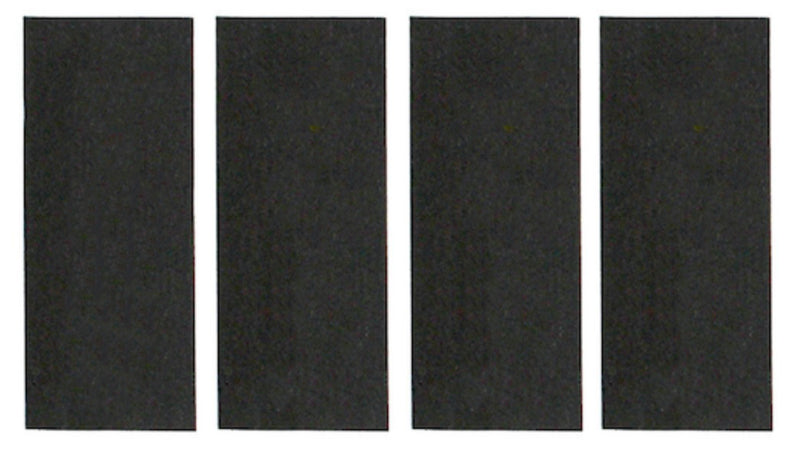

• 12 x 40897.1 - Intumescent Hinge Pad Liners - 100mm x 30mm x 1mm - For Use On FD30 Fire Rated Doors - Monoammonium Phosphate

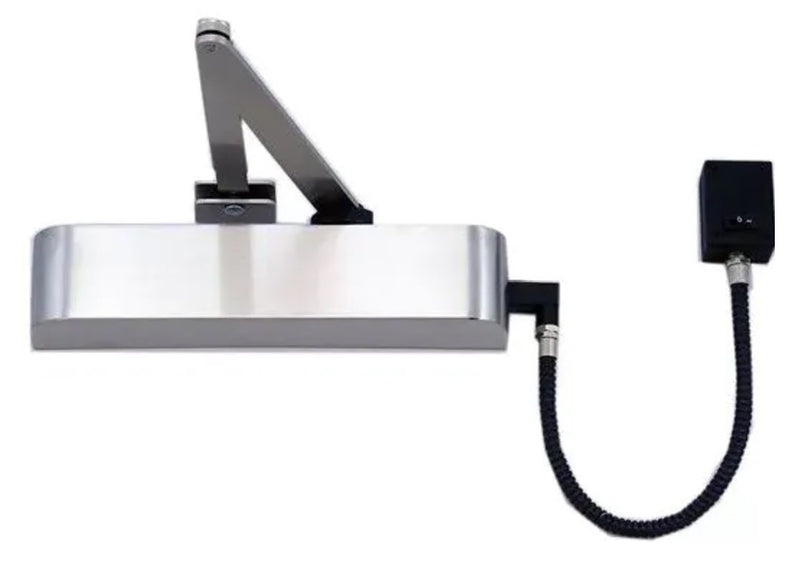

• 2 x 49674.1 - Overhead Door Closer With Electromagnetic Swing Free & Anti-Slam Feature - BS EN 1154 Power Size 4 - CE Marked / UKCA Marked - Certifire Approved - Satin Stainless Steel Cover & Arms

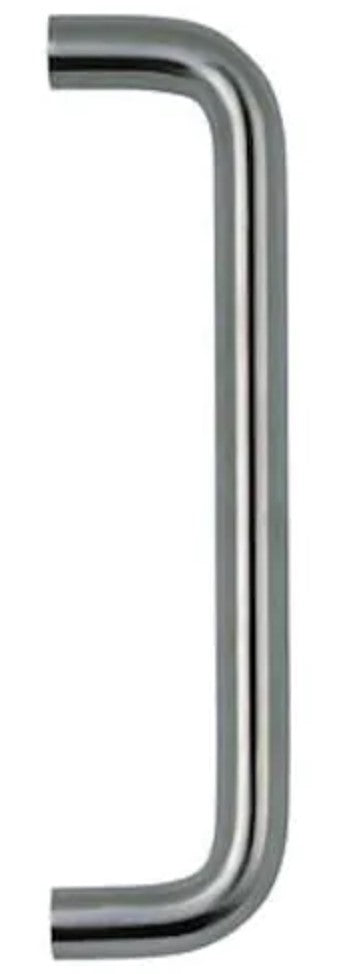

• 2 x 31212.3 - D Shaped Pull Handle - Bolt Through Fixing - Satin Stainless Steel - 300mm Centres x 19mm Diameter - Suitable For Use With FD30 / FD60 Fire Doors

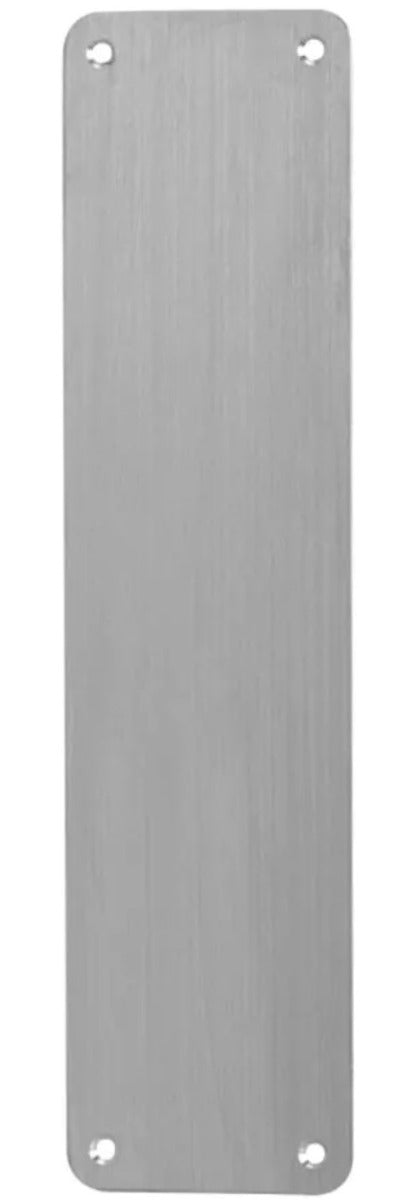

• 2 x 20580.2 - Radius Corner Finger Plate - Satin Stainless Steel - 350mm x 75mm - Suitable For Use With FD30 / FD60 Fire Doors
• 4 x 43466.1 - Automatic Fire Door Keep Clear - Circular Screw Fix Sign - Satin Stainless Steel Edge With Blue Background

Items supplied in our FD60 fire door kit:

• 6 x (3 Pairs) - 41734.1 - Concealed Nylon Bearing Grade 14 Hinges - Self Lubricating - CE Marked / UKCA Marked - Fired Rated - Certifire Approved - 160kg Weight Limit - 102mm x 76mm - Satin Stainless Steel
• 12 x 40897.2 - Intumescent Hinge Pad Liners - 100mm x 30mm x 2mm - For Use On FD60 Fire Rated Doors - Monoammonium Phosphate
• 2 x 49674.1 - Overhead Door Closer With Electromagnetic Swing Free & Anti-Slam Feature - BS EN 1154 Power Size 4 - CE Marked / UKCA Marked - Certifire Approved - Satin Stainless Steel Cover & Arms
• 2 x 31212.3 - D Shaped Pull Handle - Bolt Through Fixing - Satin Stainless Steel - 300mm Centres x 19mm Diameter - Suitable For Use With FD30 / FD60 Fire Doors
• 2 x 20580.2 - Radius Corner Finger Plate - Satin Stainless Steel - 350mm x 75mm - Suitable For Use With FD30 / FD60 Fire Doors
• 4 x 43466.1 - Automatic Fire Door Keep Clear - Circular Screw Fix Sign - Satin Stainless Steel Edge With Blue Background

Please note although the above items have been fire tested and where required CE/ UKCA Marked, it's important to check the limitations or requirements of the fire test evidence for the fire door you are planning to install. Please call or email for further information.

Fire test certificates can be viewed and downloaded in the "Product Attachments Tab"

Items not included within this kit but may be required:

• Floor mounted door stop.
• Wall mounted door stop.
• Finger guards (commonly used in schools, hotels and hospitals).

Satin Stainless Steel
