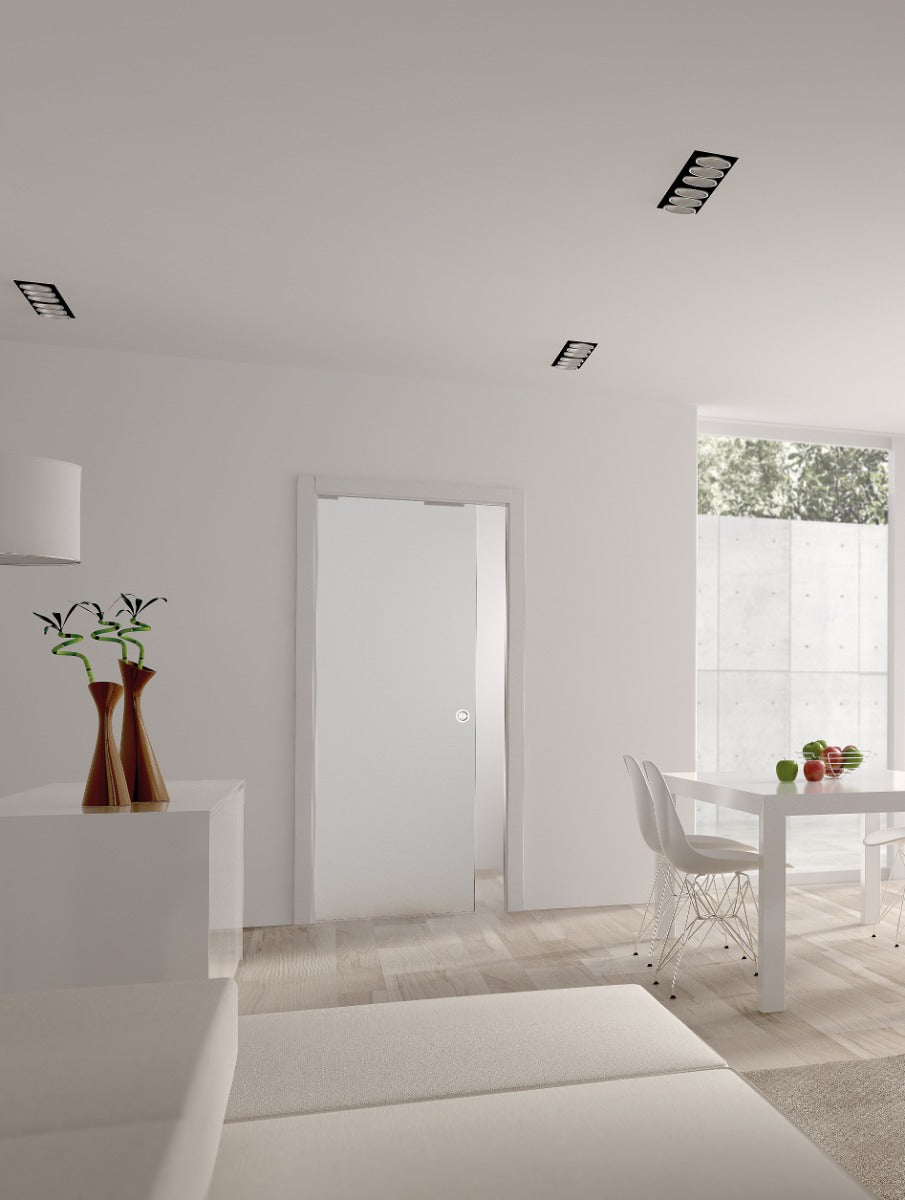

Eclisse Glass Sliding Pocket Door System - Single Door Kit Supplied With Glass Door - 100mm Finished Wall Thickness
Eclisse Jamb Kit

1/2

Product Code: 41117.1

Eclisse Glass Sliding Pocket Door System - Single Door Kit Supplied With Glass Door - 100mm Finished Wall Thickness

4.9 · 1954 verified reviews Verified on Trustpilot
View full specifications
Kit
Klarna. Pay in 3 interest-free payments of .

Eclisse Glass Sliding Pocket Door System - Single Door Kit Supplied With Glass Door

£598.80

  • Free delivery over £100
  • 30-day returns
  • Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.

Product Details

  • Eclisse single sliding pocket glass door kit.
  • Sliding door kit allows the supplied 8mm thick glass interior door to slide into a "pocket" within the wall cavity.
  • Each set includes all the main components needed to install a long lasting, smooth running sliding glass door including steel wrapped studs used to create the wall cavity or "pocket" for the door to slide into.
  • This high quality sliding glass door gear kit is suitable for residential and commercial applications. The unique design allows the 8mm glass door supplied to be installed with a finished wall of 125mm.
  • Supplied as a kit to create the pocket, which can be fully fitted in under 60 minutes by a skilled installer.
  • This is a complete pocket door kit and is supplied with a frosted 8mm thick glass door.
  • Unlike other pocket door systems on the market the Eclisse system comes supplied complete with timber lining - jamb kits, rubber bumpers and brush seals.


Diagram showing the wooden jamb kit supplied with the Eclisse sliding pocket door system

Supplied Complete With Glass Door

  • 8mm thick tempered glass door - satin opaque finish.
  • Supplied with a set of satin stainless steel, 58mm diameter circular handles.
  • Please note the 8mm glass door is satin opaque finish on one side only. If you're fitting this door inside a bathroom or shower room the satin finish side should be fitted to the dry side (not the bathroom side),

Accessories

  • 43129.1 - BIAS anti-slam soft close mechanism.


Dimensions - Frame Sizes & Door Kit Sizes Available



Item Code Door Size (DW x DH) Max Passage Size (PW x PH) Overall Frame Size (W x H) Finished Wall Thickness
41117.1 762mm x 1981mm 737mm x 1971mm 1631mm x 2061mm 100mm*
  • * Single door kit to suit a 125mm finished wall thickness also available
  • Please note plasterboard is not provided with this kit and must be bought separately.

  • Non stock product - sent direct from factory - please allow 1-2 working days for delivery
  • Free delivery on orders over £100 (£5.95 below).
  • 30-day returns
