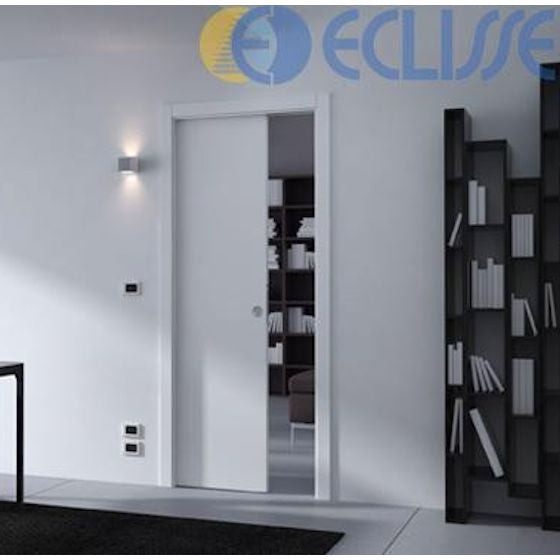

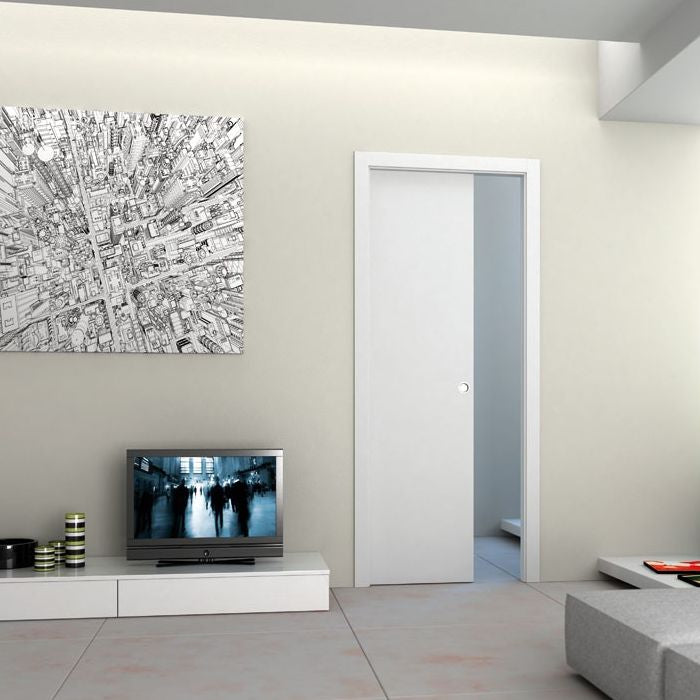

Eclisse Sliding Pocket Door Kit - Single Door - 100mm Finished Wall Thickness
4.9 · 1954 verified reviews Verified on Trustpilot
:
Eclisse Sliding Pocket Door Kit - Single Door
£304.80
Eclisse Sliding Pocket Door Kit - Single Door
£304.80
- Free delivery over £100
- 30-day returns
- Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.
RegAI
Need further information?
Contact one of the team for advice
- Call - 020 8360 7771
- Email - sales@gjohns.co.uk
Product Details
Accessories Available To Suit Eclisse System
- Soft Close Mechanism - to dampen softly close the sliding door
- Self-Closing Mechanism - automatically pulls the door closed each time the door has been opened.
- Motorised Units - to automatically open the door

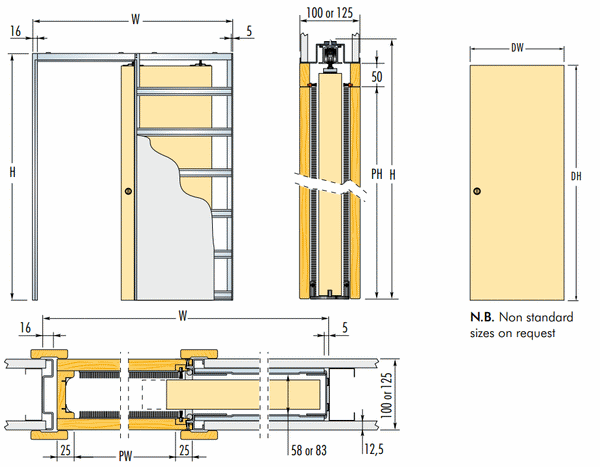

Dimensions - Frame Sizes & Door Kit Sizes Available
| Item Code | Door Size (DW x DH) | Max Passage Size (PW x PH) | Overall Frame Size (W x H) | Finished Wall Thickness |
|---|---|---|---|---|
| 40152.1 | 610mm x 1981mm - (2ft. 0in. x 6ft. 6in.) | 585mm x 1971mm | 1279mm x 2061mm | 100mm* |
| 40152.2 | 686mm x 1981mm - (2ft. 3in. x 6ft. 6in.) | 661mm x 1971mm | 1455mm x 2061mm | 100mm* |
| 40152.3 | 762mm x 1981mm - (2ft. 6in. x 6ft. 6in.) | 737mm x 1971mm | 1631mm x 2061mm | 100mm* |
| 40152.4 | 838mm x 1981mm - (2ft. 9in. x 6ft. 6in.) | 813mm x 1971mm | 1707mm x 2061mm | 100mm* |
| 40152.5 | 914mm x 1981mm - (3ft. 0in. x 6ft. 6in.) | 900mm x 1971mm | 1894mm x 2061mm | 100mm* |
| 40152.6 | 626mm x 2040mm | 600mm x 2030mm | 1294mm x 2120mm | 100mm* |
| 40152.7 | 726mm x 2040mm | 700mm x 2030mm | 1494mm x 2120mm | 100mm* |
| 40152.8 | 826mm x 2040mm | 800mm x 2030mm | 1694mm x 2120mm | 100mm* |
| 40152.9 | 926mm x 2040mm | 900mm x 2030mm | 1894mm x 2120mm | 100mm* |
| 40152.10 | 1026mm x 2040mm | 1000mm x 2030mm | 2094mm x 2120mm | 100mm* |

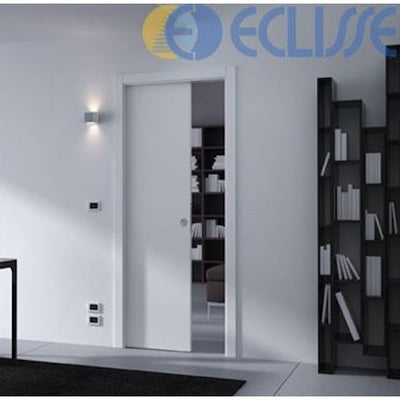

- * Single door kit to suit a 125mm finished wall thickness also available - see product 40153
- Please note plasterboard is not provided with this kit and must be bought separately.
- Free delivery on orders over £100 (£5.95 below).
- 30-day returns
Describe this product detail here.
