Product Code: 60198.1
Eclisse Syntesis - Architrave Free Sliding Pocket Door System - Single Door Kit - 125mm Finished Wall Thickness
4.9 · 1954 verified reviews Verified on Trustpilot
:
Eclisse Syntesis - Architrave Free Sliding Pocket Door System - Single Door Kit
£506.40
Eclisse Syntesis - Architrave Free Sliding Pocket Door System - Single Door Kit
£506.40
- Free delivery over £100
- 30-day returns
- Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.
RegAI
Need further information?
Contact one of the team for advice
- Call - 020 8360 7771
- Email - sales@gjohns.co.uk
Complete the job
Matching accessories & additional products
Buy the complete set — handle, latch, hinges, fire kit & stop, fitted right.
£554.34
Product Details
- The Eclisse Syntesis sliding door gear system is designed for use with sliding internal pocket hideaway doors that have no architraves or door jambs.
- A single sliding pocket door system for a c lean, contemporary, minimalist finish this sliding door kit is an ingenious system that allows you to eliminate the use of architraves. and jambs and just see the clean lines of the wall and door.
- The special corner profiles supplied with this system mean the edges are plastered in with the same plaster as the walls, the result being a consistent paint finish which will not age at different rates
- The Syntesis range has been designed to be the strongest of its type on the market, flex is reduced to a minimum using stronger profiles, reinforced joints and top quality materials. This is a product that will last!
- Suitable for use with doors up to 80kg
- Allows an interior door to slide into a "pocket" within the wall cavity.

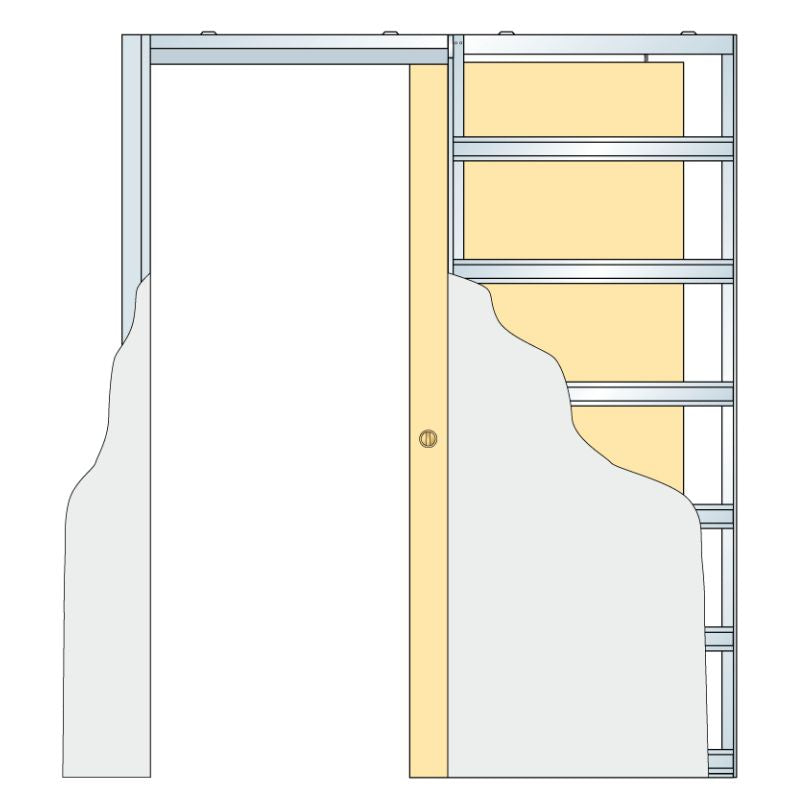

- Each set includes all the main components needed to install a long lasting, smooth running sliding door including steel wrapped studs used to create the wall cavity or "pocket" for the door to slide into.
- This high quality sliding door gear is suitable for residential and commercial applications. The unique design allows doors between 35mm-44mm thick to be installed with a finished wall of 125 mm.
- Suitable for use with timber doors. (Door not included).
Accessories
- 43129.1 - BIAS anti-slam soft close mechanism.

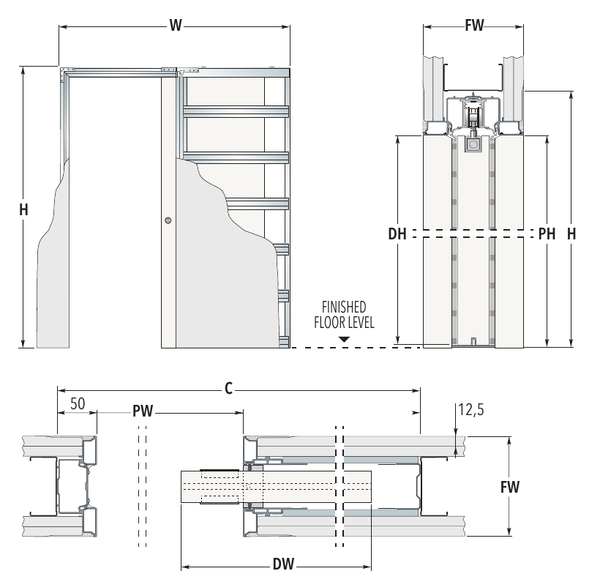

Dimensions - Frame Sizes & Door Kit Sizes Available
| Item Code | Door Size (DW x DH) | Passage Size (A x PH) | Overall Frame Size (W x H) | Finished Wall Thickness |
|---|---|---|---|---|
| 60198.1 | 610mm x 1981mm - (2ft. 0in. x 6ft. 6in.) | 584mm x 1989mm | 1384mm x 2049mm | 125mm |
| 60198.2 | 686mm x 1981mm - (2ft. 3in. x 6ft. 6in.) | 660mm x 1989mm | 1560mm x 2049mm | 125mm |
| 60198.3 | 762mm x 1981mm - (2ft. 6in. x 6ft. 6in.) | 736mm x 1989mm | 1736mm x 2049mm | 125mm |
| 60198.4 | 838mm x 1981mm - (2ft. 9in. x 6ft. 6in.) | 812mm x 1989mm | 1812mm x 2049mm | 125mm |
| 60198.5 | 914mm x 1981mm - (3ft. 0in. x 6ft. 6in.) | 888mm x 1989mm | 1988mm x 2049mm | 125mm |
| 60198.6 | 626mm x 2040mm | 600mm x 2048mm | 1400mm x 2108mm | 125mm |
| 60198.7 | 726mm x 2040mm | 700mm x 2048mm | 1600mm x 2108mm | 125mm |
| 60198.8 | 826mm x 2040mm | 800mm x 2048mm | 1800mm x 2108mm | 125mm |
| 60198.9 | 926mm x 2040mm | 900mm x 2048mm | 2000mm x 2108mm | 125mm |
- Please note plasterboard is not provided with this kit and must be bought separately.

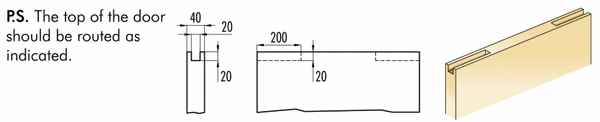

- Please note the Syntesis kit must be routered 200mm x 20mm into two positions in the top of your door, please make sure the top rail of you chosen door is deep enough to accommodate this routing.
- Free delivery on orders over £100 (£5.95 below).
- 30-day returns
Describe this product detail here.
