Euro Profile Cylinder Sash Lock - Key / Thumb-Turn Operated BS 8621 Rated - Satin Stainless Steel
Euro Profile Cylinder Sash Lock - Key / Thumb-Turn Operated BS 8621 Rated - Satin Stainless Steel
Euro Profile Cylinder Sash Lock - Key / Thumb-Turn Operated BS 8621 Rated - Satin Stainless Steel
Euro profile thumbturn sash lock technical drawing with strike plate, forend, cylinder and turn, and escutcheons, dimensions in mm
Euro profile sash lock available sizes: 64 mm case depth with 44 mm backset, 76 mm case depth with 57 mm backset

1/5

Product Code: 30892.1

Euro Profile Cylinder Sash Lock - Key / Thumb-Turn Operated BS 8621 Rated - UL Certified - Tested For Use With FD30 / FD60 Fire Doors - Satin Stainless Steel

4.9 · 1954 verified reviews Verified on Trustpilot
View full specifications
Set
Klarna. Pay in 3 interest-free payments of .

Euro Profile Cylinder Sash Lock - Key / Thumb-Turn Operated BS 8621 Rated - Tested For Use With FD30 / FD60 Fire Doors

£106.92

  • Free delivery over £100
  • 30-day returns
  • Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.

Product Details

  • Euro profile British Standard rated cylinder sash lock with internal thumb-turn operation.
  • Kite marked security lock for external doors. Tested to the British standard BS 8621.
  • Keyless egress (door can be locked and unlocked from the inside without the use of a key).
  • Meets fire regulations for locking front doors to flats in multi-dwelling buildings. (In an emergency situation the user can always escape and unlock the door without the use of a key).
  • Insurance approved, BS 8621 rated.

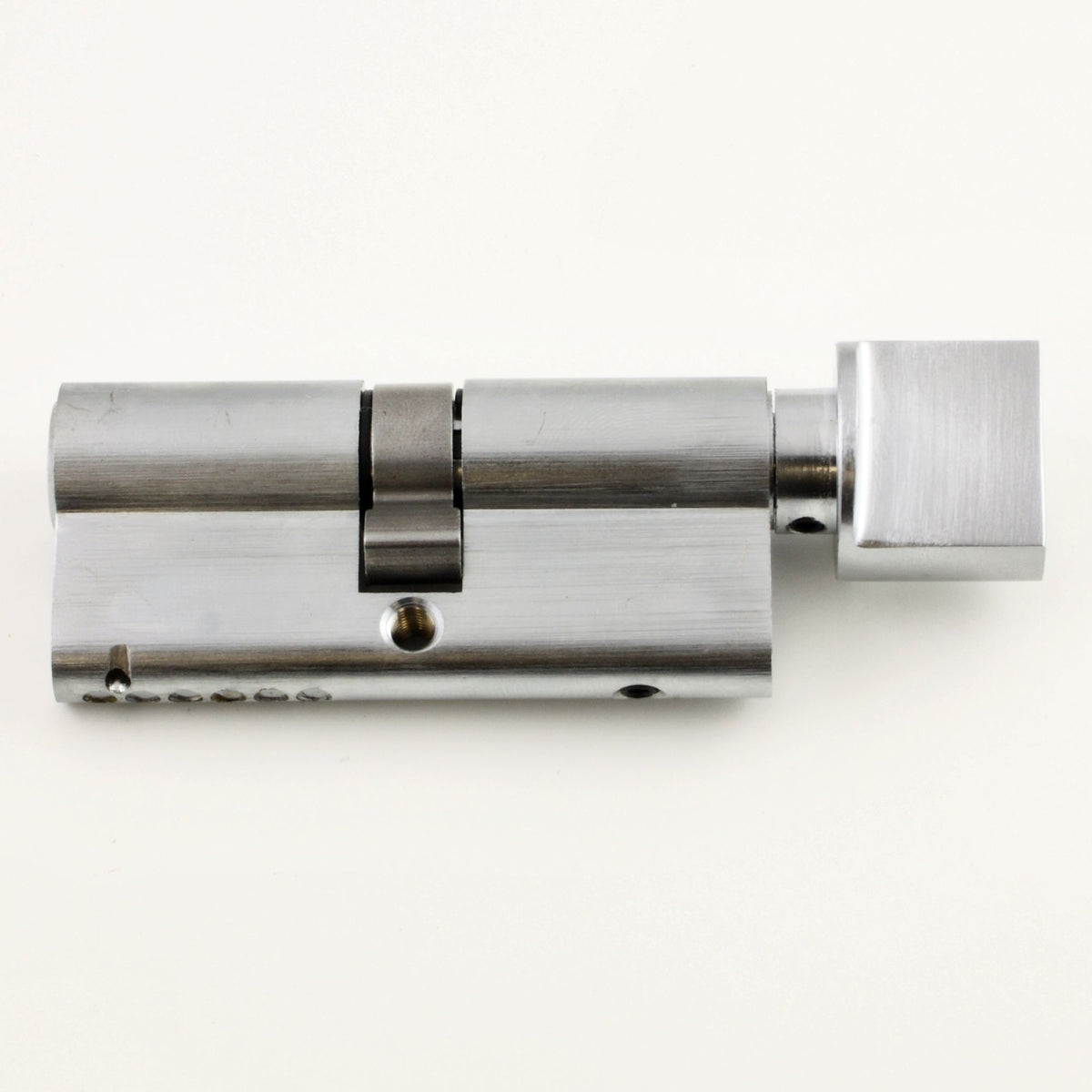

  • Key operation from the outside and thumb-turn operation from inside of the door via Euro profile key / turn cylinder.

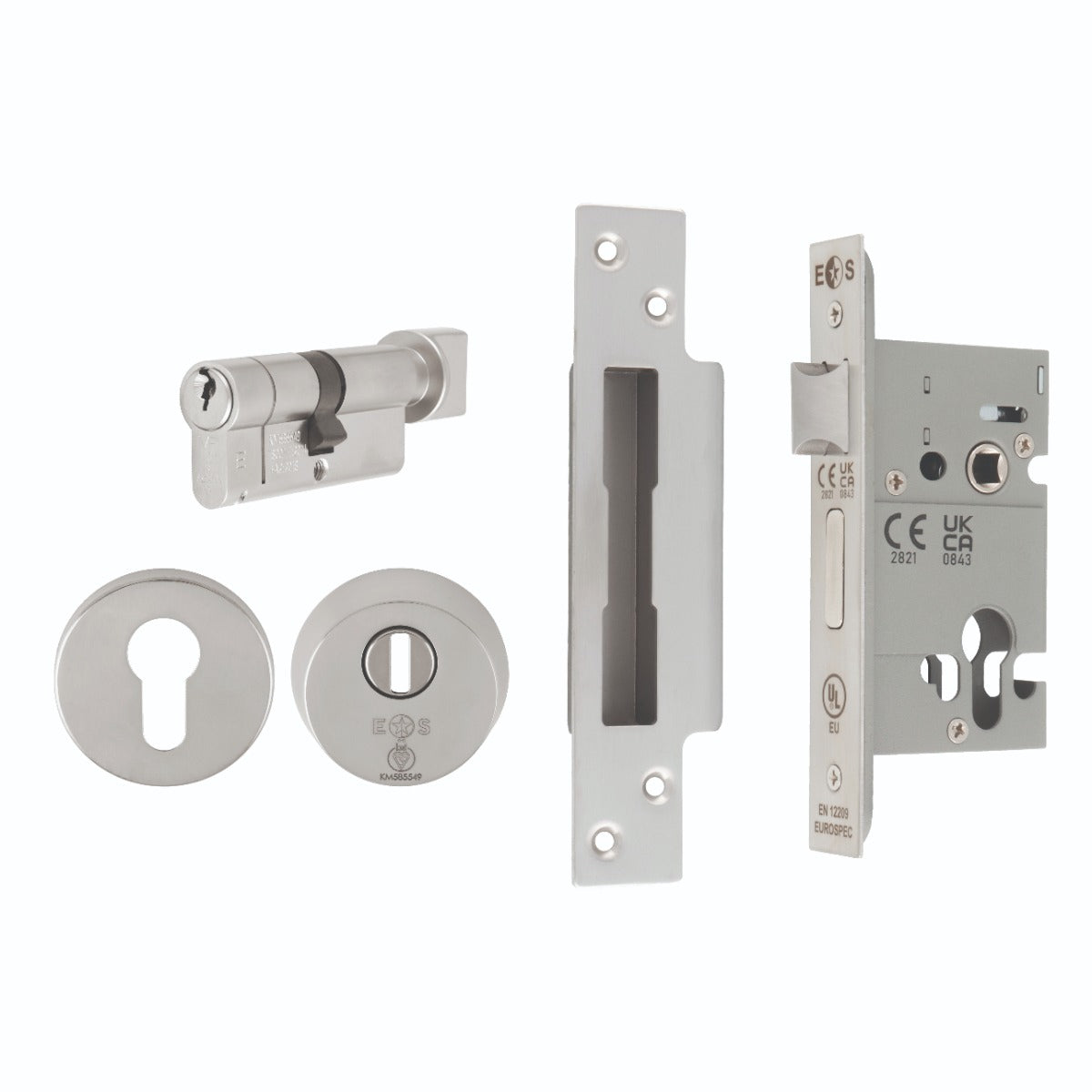

  • Complete set comes supplied with 1x mortice lock, 1x 70mm euro profile 6 pin cylinder and 2x security escutcheons.
  • Satin stainless steel finish with matching security escutcheons.
  • Police preferred specification - Secured By Design (SBD) approved with anti-pick and ant-drill pins.

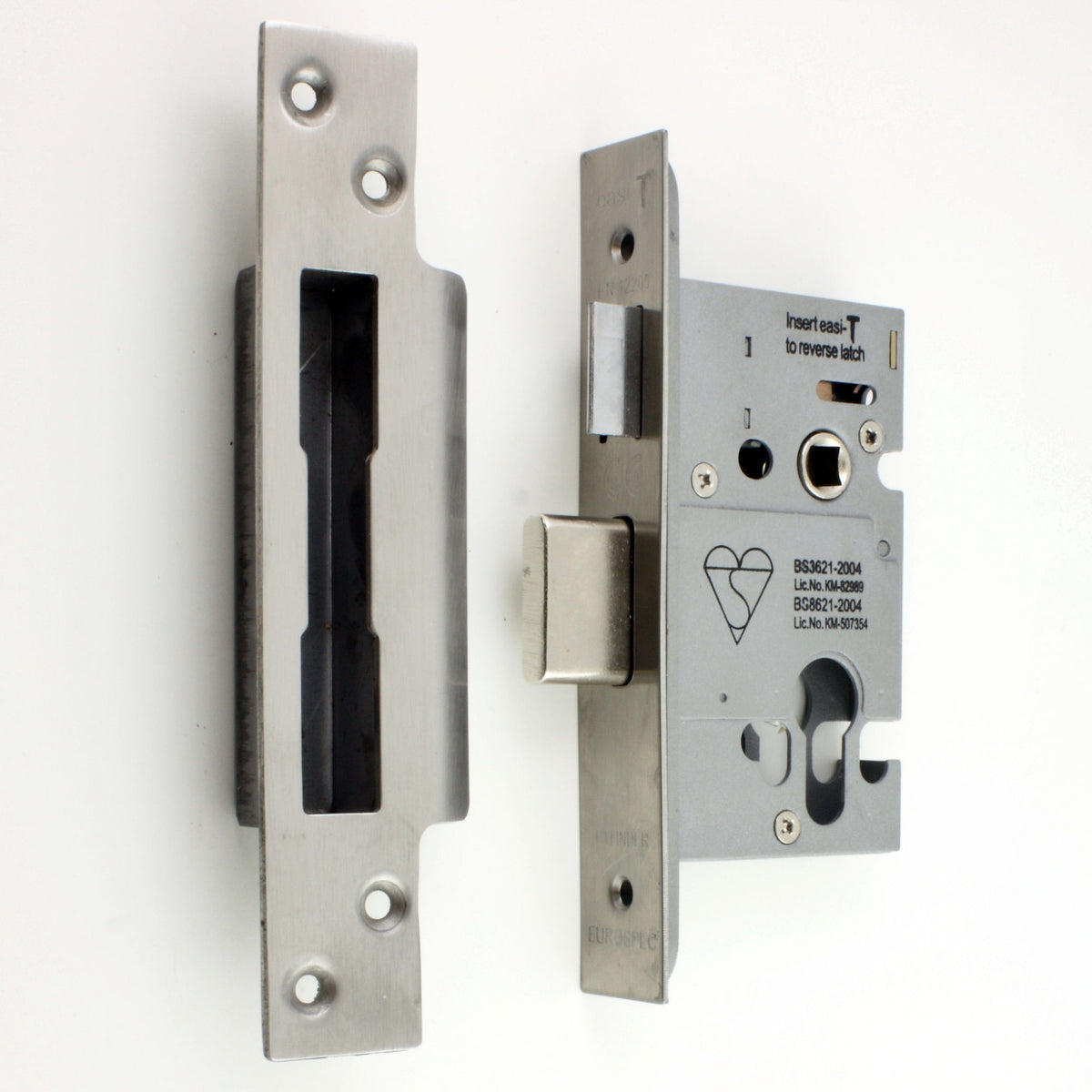

  • Mortice lock available in two sizes 64mm or 76mm (case depth).
  • Supplied with 3 keys

Finish

  • Satin stainless steel (cylinder satin chrome).



Dimensions







Item Code Lock Case Depth (A) Backset To Keyhole (B) Cylinder Length
30892.1 64mm 44mm 70mm
30892.2 76mm 57mm 70mm

Rebate Kits For Double Rebated Doors

  • ARB5305SSS - 13mm satin stainless steel rebate kit for Eurospec euro profile BS rated cylinder sash lock.


Satin Stainless Steel

  • Stock item - please allow 1-3 days for delivery
  • Free delivery on orders over £100 (£5.95 below).
  • 30-day returns

Describe this product detail here.

G Johns & Sons Ltd

G Johns & Sons Ltd · Est. 1888 · GAI · RegAI Registered

020 8360 7771 · sales@gjohns.co.uk

Scan to view product online

Scan for product page

Euro Profile Cylinder Sash Lock - Key / Thumb-Turn Operated BS 8621 Rated - UL Certified - Tested For Use With FD30 / FD60 Fire Doors - Satin Stainless Steel

SKU ESB5025/CT/SSS  ·  Door Hardware  ·  £106.92 inc VAT

Technical

Specification & Dimensions

Technical Drawings

Downloads

CBCEDOP301-DOP-For-BS-Rated-5-Lever-BS-Euro-Locks UL-EU-01342-EN-Fire-Test-Certificate-For-BS-Rated-5-Lever-BS-Euro-Locks
Need it confirmed for your project? Call our team on 020 8360 7771.
