Flush Bolt To Suit Huskyfold 30 Kits - 110mm x 24mm - Satin Nickel

Flush Bolt For Huskyfold 30 Bi-Folding Door Kits:

• Non-locking flush bolt designed for use with our Huskyfold 30 bi-folding door kits.
• Holds the folding door leaf in position when the doors are closed, keeping the doors stable and aligned.
• Morticed (routed) into the edge of the door for a neat, concealed finish.
• Suitable for internal use only.

How Many Do I Need?

• 1 flush bolt - for 2+0, 2+1 and 3+0 configurations.
• 2 flush bolts - for 2+2, 3+1 and 4+0 configurations.
• The flush bolt position for each configuration is shown on the layout drawing on each Huskyfold 30 kit.

Dimensions:

• Faceplate - 110mm x 24mm (with bolt extended the overall length is approx. 125mm).
• Fixing hole centres - 98mm.
• Body depth - 9mm.
• Bolt - 4mm thick.
• Keeper plate - 56mm x 16mm with 40mm fixing centres, 17mm deep.

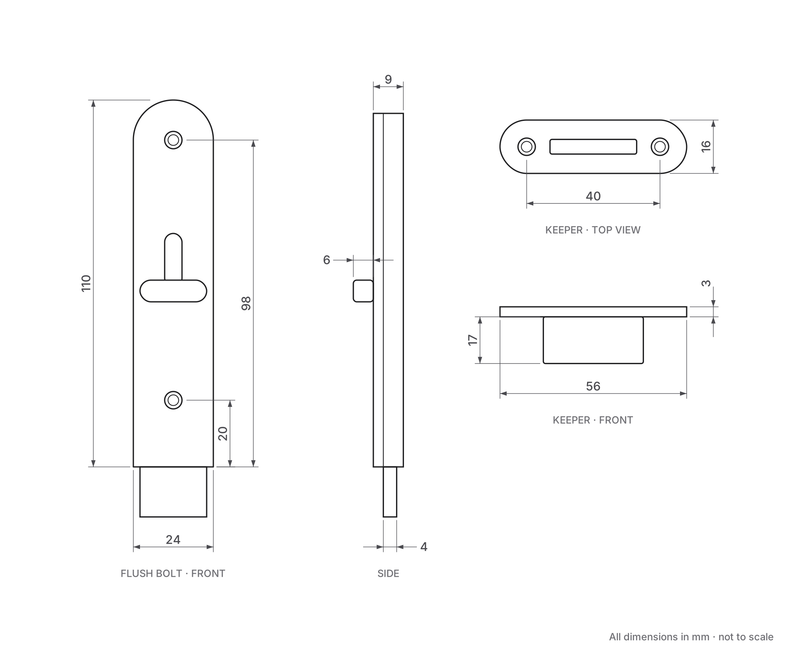

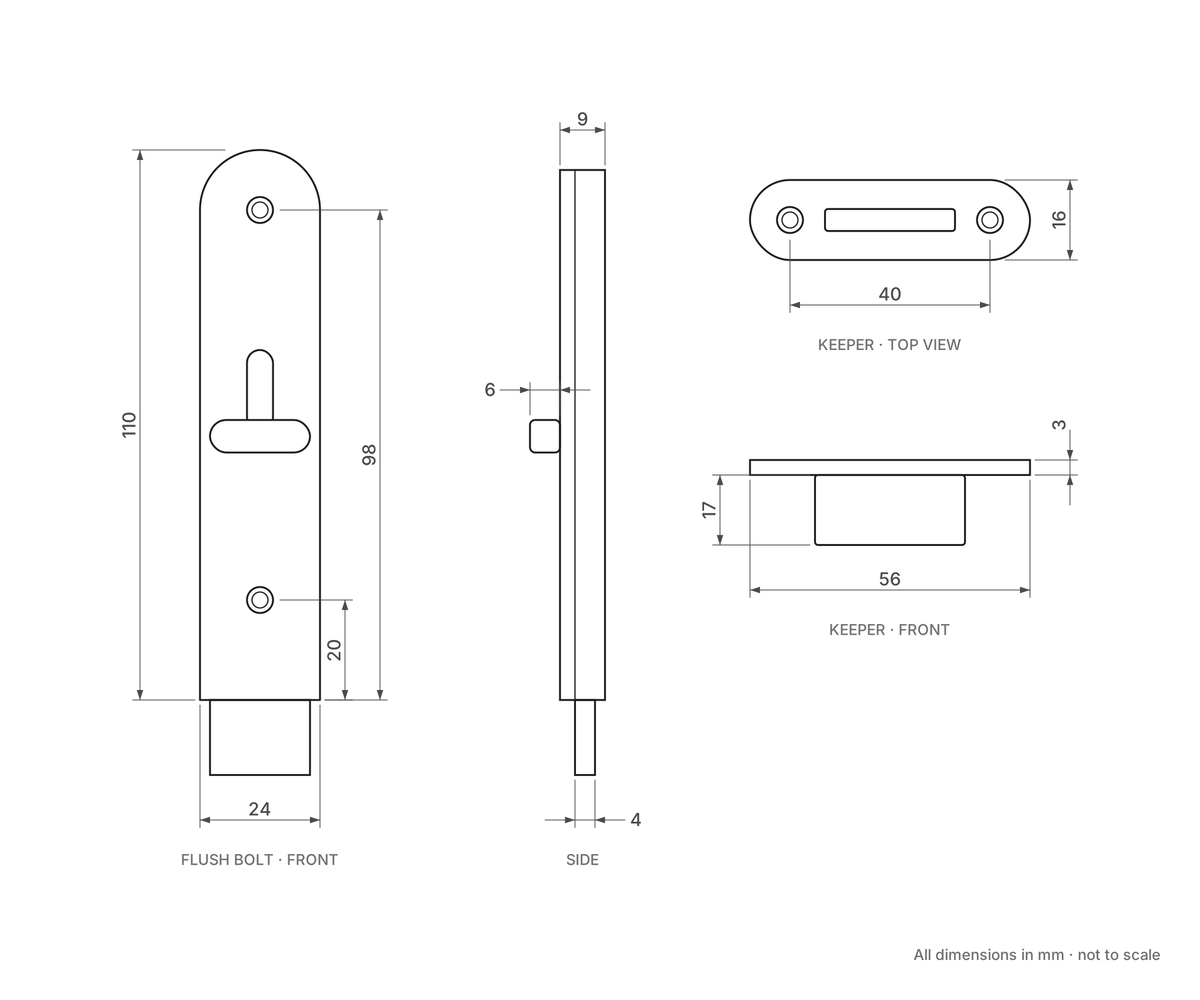

• Please see the technical drawing for full dimensions.

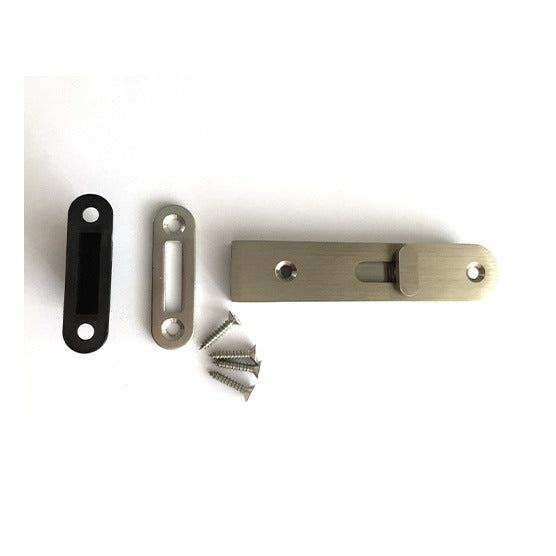

Items Supplied:

• 1x Flush bolt.
• 1x Keeper.

Satin Nickel

• Non stock product - please allow 3-7 days for delivery
• Free delivery on orders over £100 (£5.95 below).
• 30-day returns
