Horizontal Bar Panic Bolt Set - For Single Fire Escape Exit Doors
Horizontal Bar Panic Bolt Set - For SINGLE Fire Escape Exit Doors - G Johns & Sons Ltd - Architectural Ironmongery

1/2

Product Code: 30763.1

Horizontal Bar Panic Bolt Set - For Single Fire Escape Exit Doors - Suitable For Use With FD30 / FD60 Fire Doors

4.9 · 1954 verified reviews Verified on Trustpilot
View full specifications
Each - ( To Suit 1 x Single Door )
Klarna. Pay in 3 interest-free payments of .

Horizontal Bar Panic Bolt Set - For Single Fire Escape Exit Doors - Suitable For Use With FD30 / FD60 Fire Doors

£122.66

  • Free delivery over £100
  • 30-day returns
  • Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.

Product Details

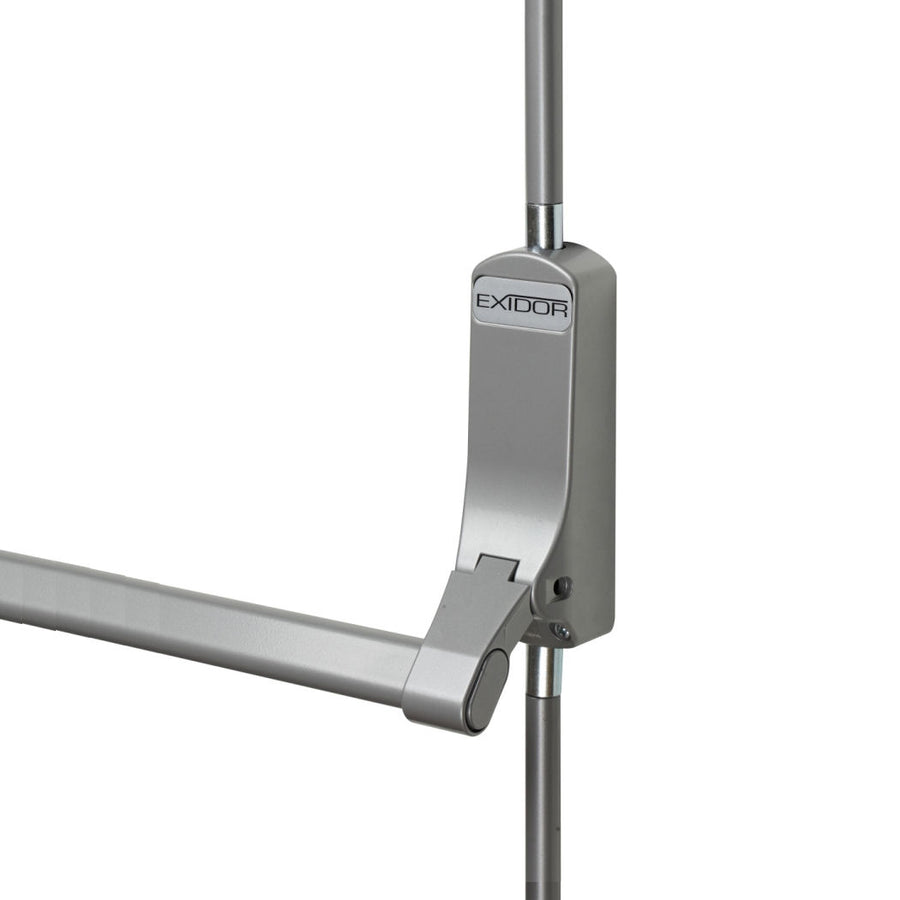

  • The Exidor 294 is an elegant and highly functional panic bolt set for use on single fire escape and single emergency exit door applications.

  • Horizontal panic bar design with top and bottom vertical shoot bolts.

  • From the Exidor 200 range.

  • Silver (SE) finish.

  • Tested to BS EN 1125 this emergency exit hardware is suitable for use on fire exit and fire escape doors in public buildings and public areas including - schools, hospitals, churches, shopping centers or any area which may hold 60 people or more.

  • Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors. Certificates available upon request.

  • Incorporated as standard is an automatic top trip which will hold the bolts "in" once the door has been opened and stops the bottom shoot from rubbing along the floor. Once the door is closed the top trip releases the bolts automatically back into their receiver plates to secure the door closed.

  • The main body is fitted with an anti-thrust device, which prevents leverage of both the top and bottom shoot bolts from their sockets.

  • Non-handed design suitable for use on ISO 5 and ISO 6 handed doors (left and right handed.)

  • Surface mounted with closed arm design.

    • Finish Details

  • Silver (SE) finish.

    • Dimensions

  • Body Height - 159mm
  • Body Width - 55mm
  • Projection Form Door - 100mm (Grade 2)
  • Max Door Height - 2440mm
  • Max Door Width - 1220mm

    • Optional extras available to suit this item

  • Pullman latches (to replace the top and bottom shoot bolts ideal for high use areas.)
  • Outside access devices (knob operated (Exidor 302) or lever operated (Exidor 322).
  • Dogging device (to leave the bolts held so the door is "unlatched")
  • Alarm box (sounds an alarm is horizontal bar is pressed.)
  • Metal door version available to special order.

    • Silver

    • Non stock product - please allow 3-7 days for delivery
    • Free delivery on orders over £100 (£5.95 below).
    • 30-day returns

    Describe this product detail here.

    G Johns & Sons Ltd

    G Johns & Sons Ltd · Est. 1888 · GAI · RegAI Registered

    020 8360 7771 · sales@gjohns.co.uk

    Scan to view product online

    Scan for product page

    Horizontal Bar Panic Bolt Set - For Single Fire Escape Exit Doors - Suitable For Use With FD30 / FD60 Fire Doors

    SKU 294SE  ·  Door Hardware  ·  £122.66 inc VAT

    Technical

    Specification & Dimensions

    Technical Drawings

    Downloads

    Certifire CF389 Certificate - For Exidor 200 Series Panic Bar Sets Tested To EN 1125 Declaration Of Performance - DoP Certificate - For Exidor Panic Hardware Sets
    Need it confirmed for your project? Call our team on 020 8360 7771.
