Product Code: 31271.1
Premium Sliding Door Gear System For Cupboard Doors - Doors Up To 70kg In Weight
4.9 · 1954 verified reviews Verified on Trustpilot
:
Premium Sliding Door Gear System For Cupboard Doors
£219.86
Premium Sliding Door Gear System For Cupboard Doors
£219.86
- Free delivery over £100
- 30-day returns
- Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.
RegAI
Need further information?
Contact one of the team for advice
- Call - 020 8360 7771
- Email - sales@gjohns.co.uk
Product Details

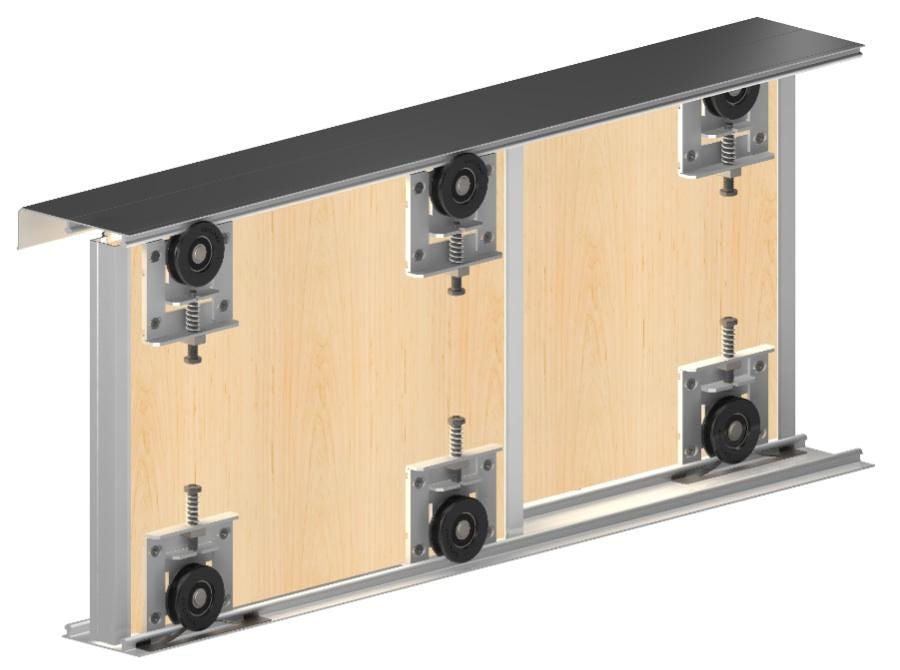

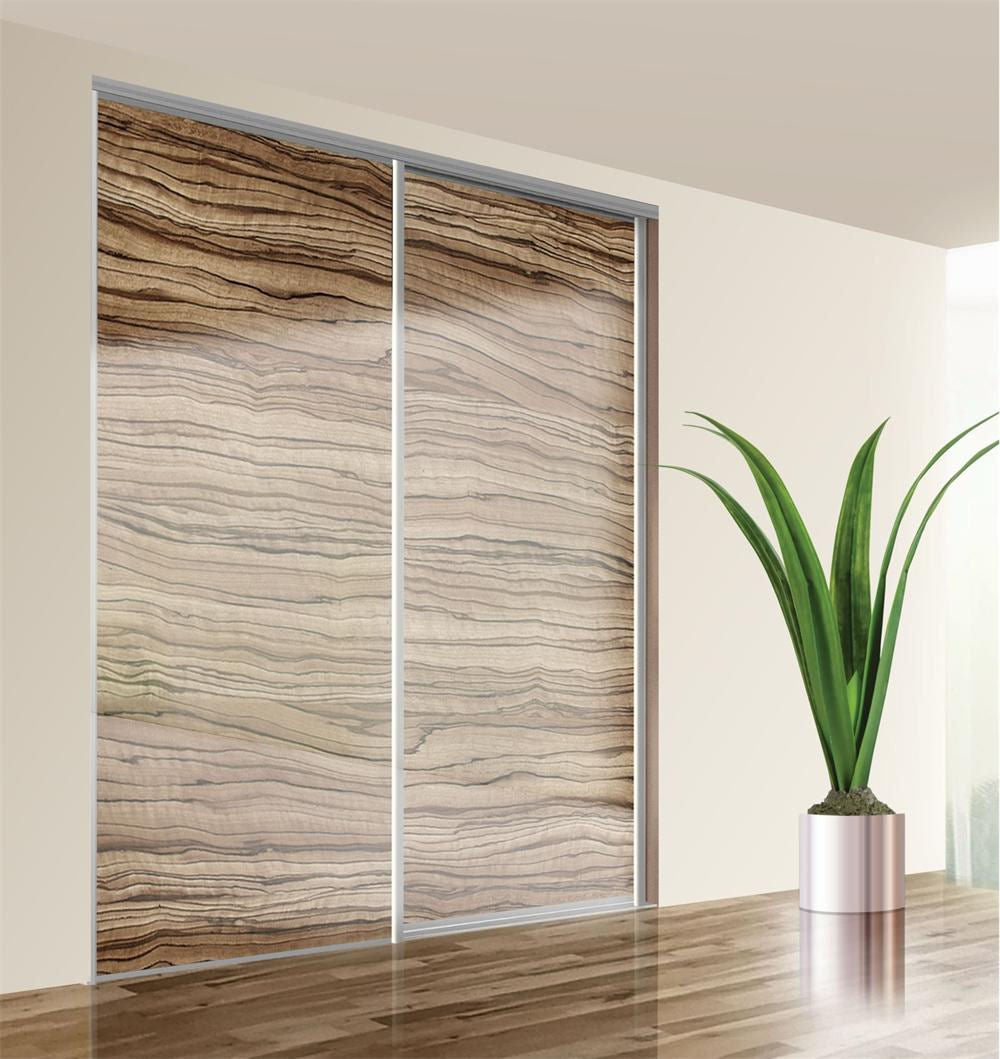

- This premium quality twin track sliding door system for use with two or three doors and is ideal for sliding wardrobe doors.

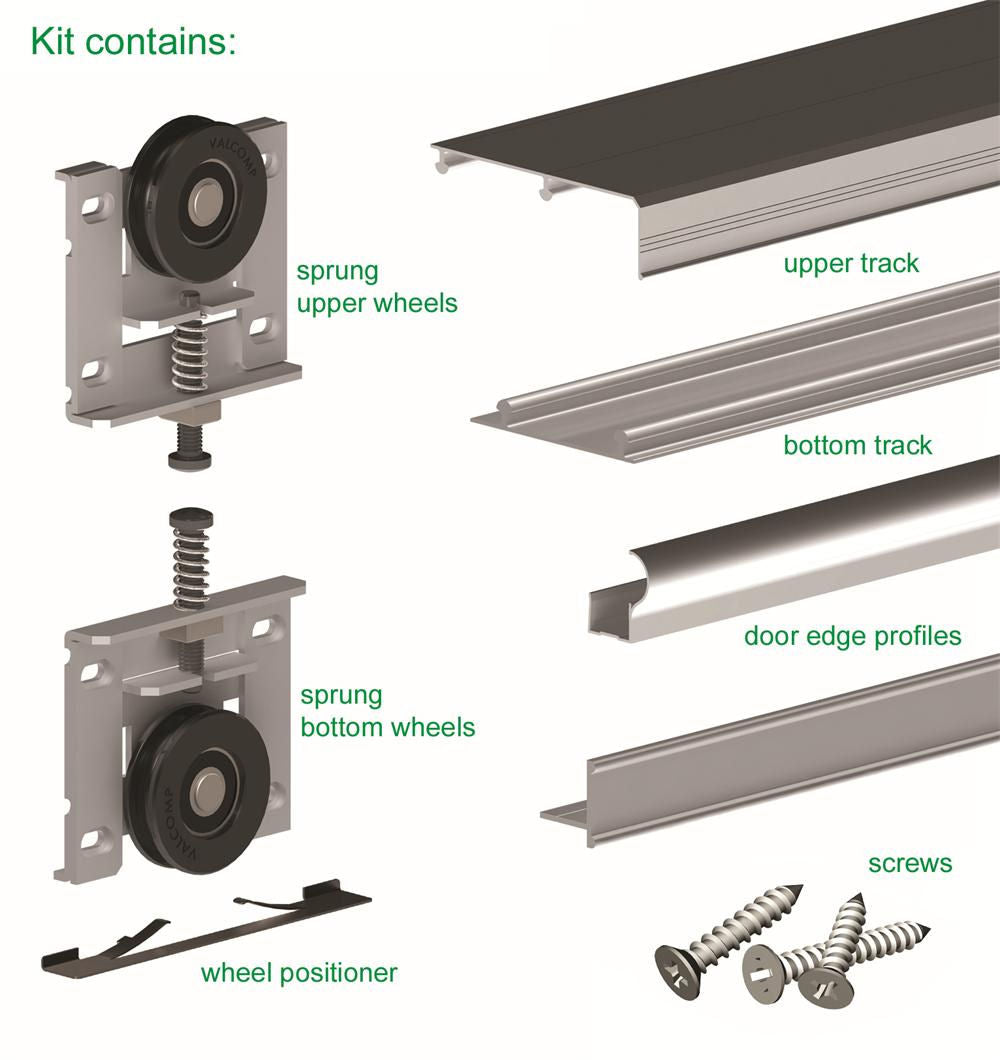

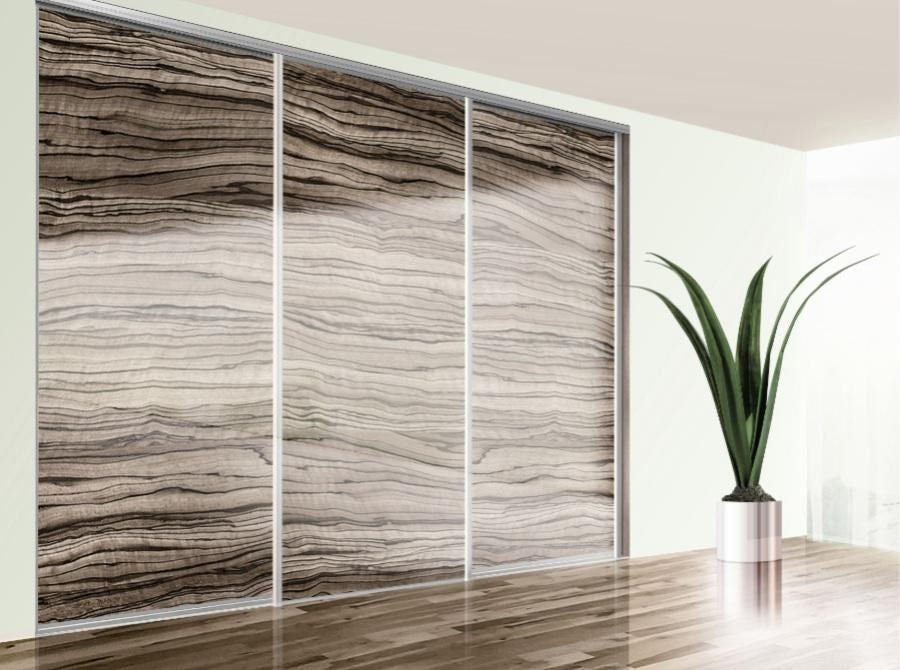

- It can be used for two or three wardrobe doors and not only includes high quality door running gear, but also includes track with an integrated masking plate plus a full set of decorative silver aluminium door edging profiles for the perfect finish.

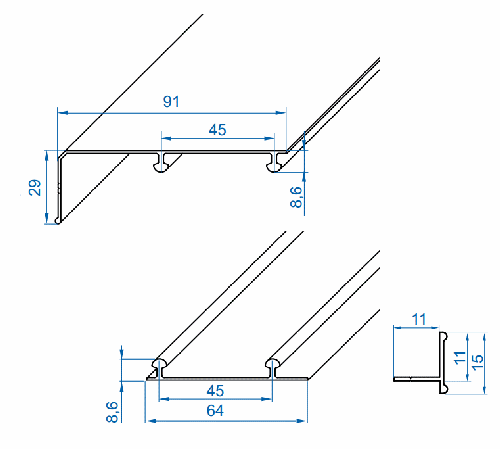

- Anodised aluminium track with integrated masking plate for a durable, highly decorative finish.
- Top and bottom mounted rollers on ball bearings, fitted to sprung chassis for extra smooth and quiet running.
- The sprung chassis makes fitting extremely easy and allows doors to be quickly removed and refitted.

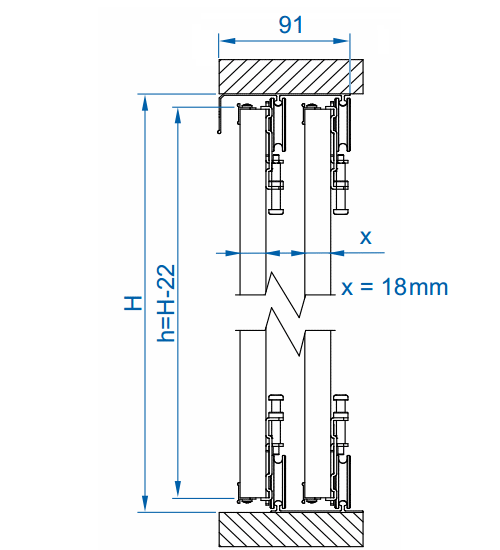

- Designed for use with 18mm MDF doors and will suit up to 70kg in weight.
- Tested to over 100,000 cycles - to BS EN152.
| Item Code | Overall Track Length (L) | To Suit No. Of Doors | Maximum Door Weight (W) | Minimum Door Thickness (X) | Maximum Door Thickness (X) |
|---|---|---|---|---|---|

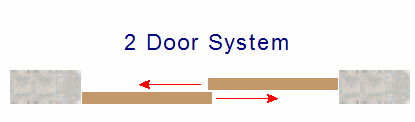

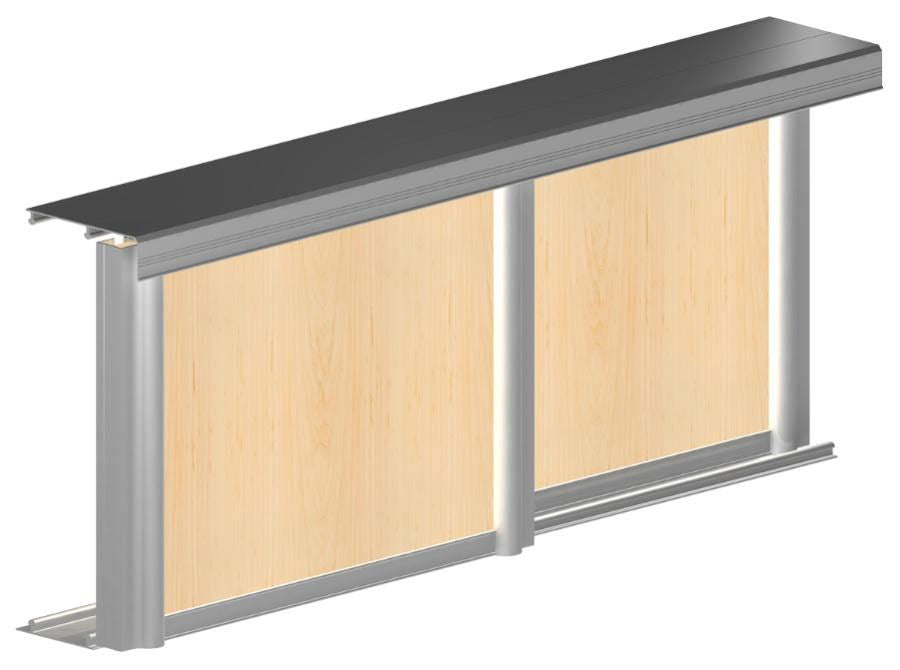

| 31271.1 | 1800mm | 2 | 70kg | 16mm | 18mm |

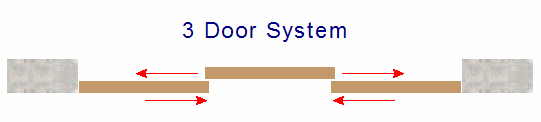

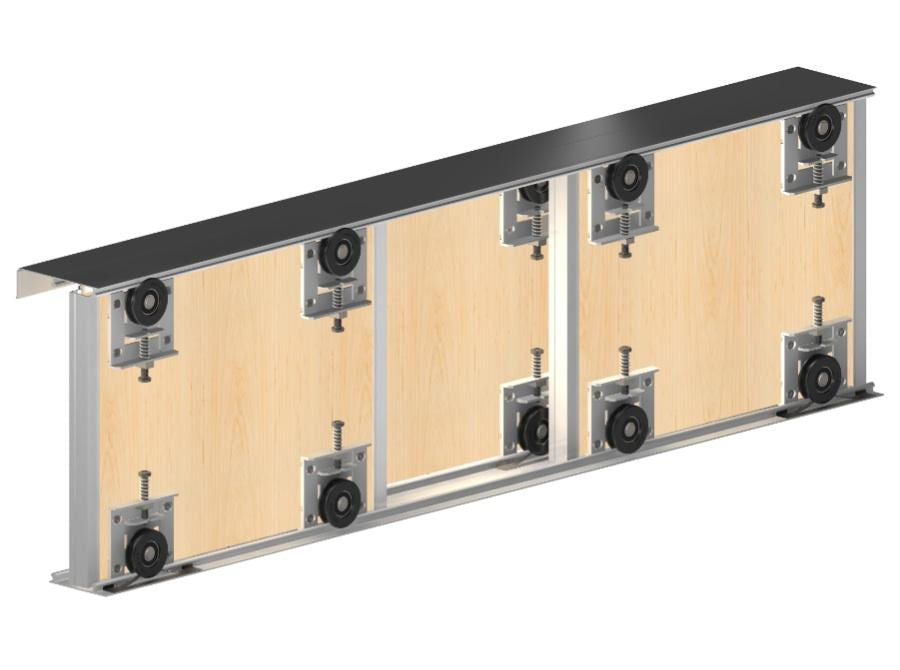

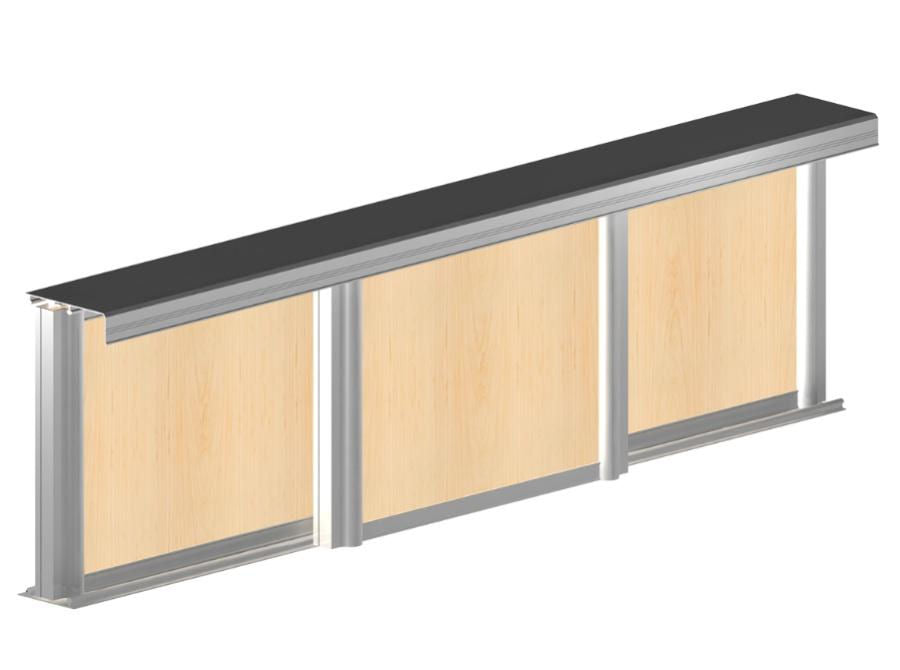

| 31271.2 | 2700mm | 3 | 70kg | 16mm | 18mm |
- Longer kits can be created by simply joining to kits "end on" (next to each other).
- Free delivery on orders over £100 (£5.95 below).
- 30-day returns
