Product Code: 43015.1
Rea - Barn Door Style Sliding Door Gear With Face Fix Straps - For Door Widths Up To 900mm Wide - Track Length 2000mm - Matt Black
4.9 · 1954 verified reviews Verified on Trustpilot
:
Rea - Barn Door Style Sliding Door Gear With Face Fix Straps - For Door Widths Up To 900mm Wide - Track Length 2000mm - Matt Black
£214.18
Rea - Barn Door Style Sliding Door Gear With Face Fix Straps - For Door Widths Up To 900mm Wide - Track Length 2000mm - Matt Black
£214.18
- Free delivery over £100
- 30-day returns
- Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.
RegAI
Need further information?
Contact one of the team for advice
- Call - 020 8360 7771
- Email - sales@gjohns.co.uk
Product Details

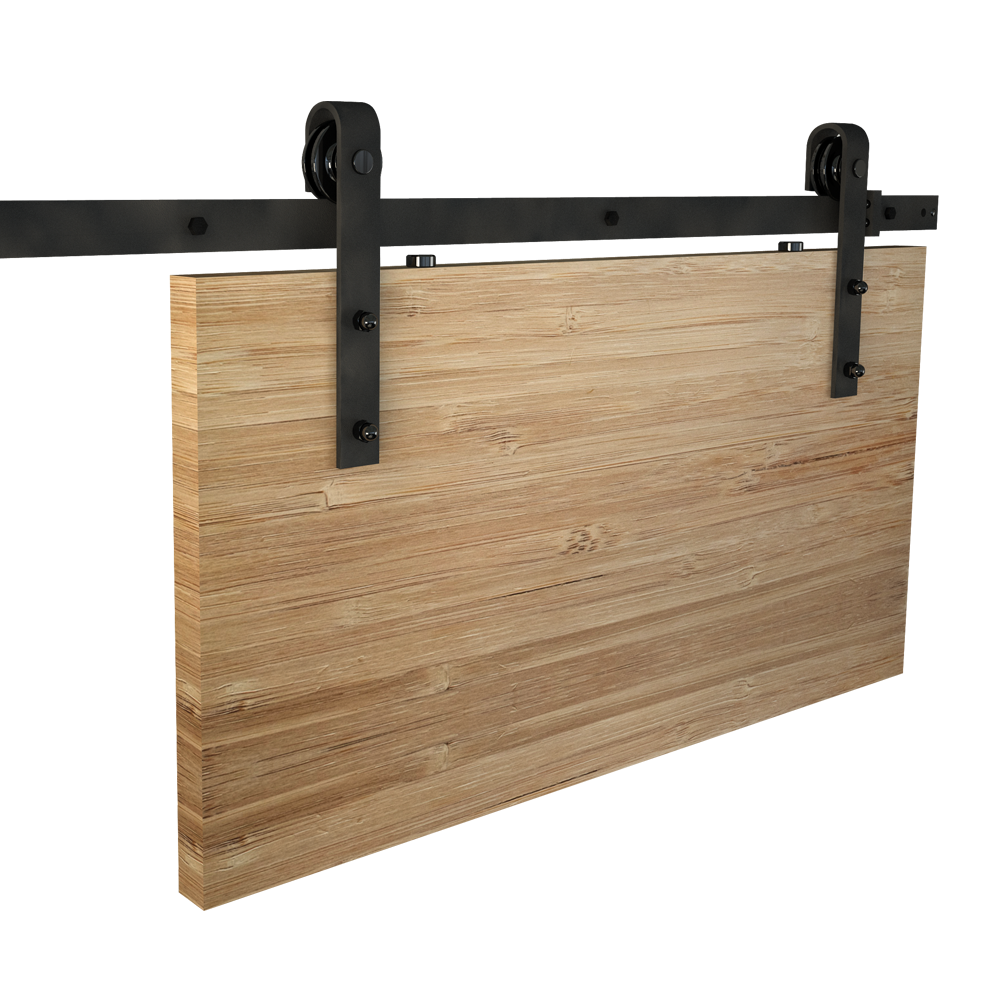

- The Rea sliding door system is a barn style sliding door track with face fix door straps in a matt black finish.
- Steel track with matt black ball bearing rollers.
- Designed for use with timber doors between 35mm - 45mm thick and up to 100kg in weight.
- Ideal for sliding doors between rooms, wall openings or for entrances to offices.

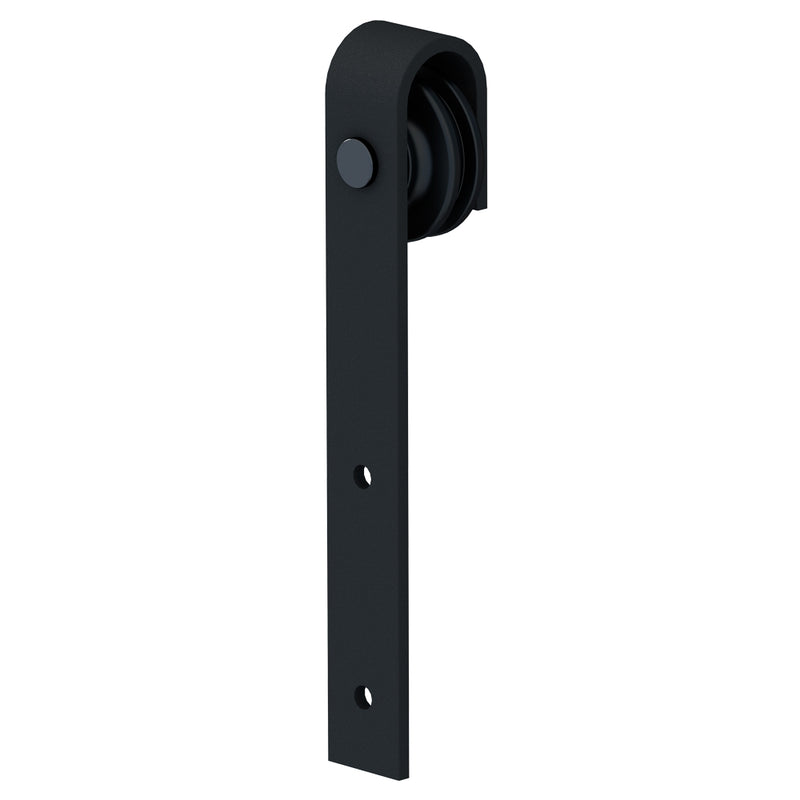

- Face fix strap design with ball bearing hangers that run along a matt black, rectangular shape top rail.
- A concealed floor mounted guide is centrally located to eliminate any swinging effect and allow a uniform movement during sliding.
- Each set includes all the main components needed to install a long lasting, smooth running wooden sliding door.
Dimensions And Track Lengths Available
| Item Code | Maximum Door Opening Width (D) | Overall Track Length (L) | Max Door Weight (W) | Door Thickness (T) |
|---|---|---|---|---|
| 43015.1 | 900mm | 2000mm | 100kg | 35mm - 45mm |

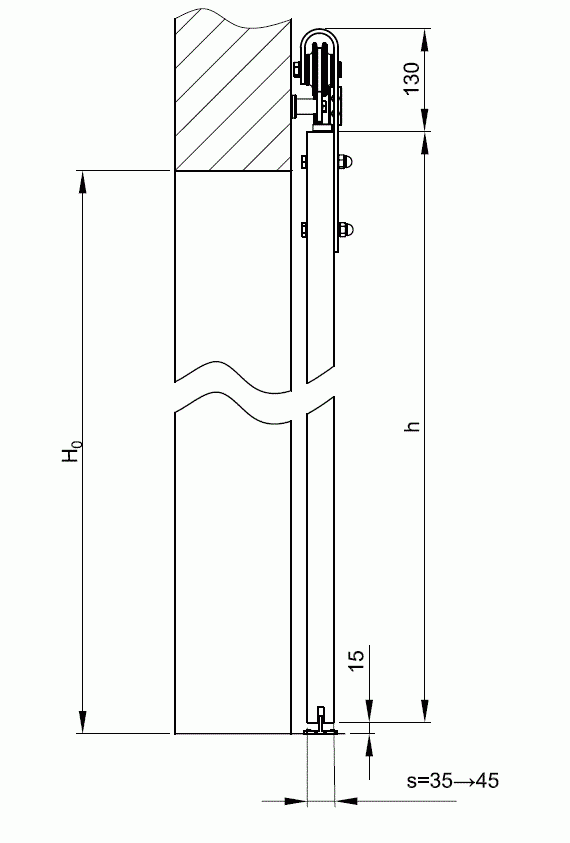

- Door height (h) is calculated as follows Ho (Opening Height) + 73mm
Optional Extras
- Soft close device - 43017
Bottom Floor Guide
- Supplied complete with a concealed floor guide, fixed to the floor next to the door frame, it runs in a groove in the door leaving the threshold free from obstructions.
- Free delivery on orders over £100 (£5.95 below).
- 30-day returns
Describe this product detail here.
