Product Code: 48189.1
Tritech Concealed Polymer Bearing Grade 14 Hinge - Self Lubricating - CE / UKCA Marked - Fired Rated - 100mm x 75mm - Satin Nickel
4.9 · 1954 verified reviews Verified on Trustpilot
Finish:
:
Tritech Concealed Polymer Bearing Grade 14 Hinge - Self Lubricating - CE / UKCA Marked - Fired Rated - 100mm x 75mm
£58.73
Tritech Concealed Polymer Bearing Grade 14 Hinge - Self Lubricating - CE / UKCA Marked - Fired Rated - 100mm x 75mm
£58.73
- Free delivery over £100
- 30-day returns
- Secure checkout — Shop Pay, Klarna, Apple & Google Pay
Specifying for a project? RegAI
Speak to one of our team for advice & guidance.
RegAI
Need further information?
Contact one of the team for advice
- Call - 020 8360 7771
- Email - sales@gjohns.co.uk
Product Details
- Tritech grade 14 concealed polymer bearing self-lubricating satin nickel hinge.
- Fire rated and CE Marked / UKCA Marked to BS EN 1935, supplied with intumescent liners pre-attached to the back of each hinge leaf.
- These Hi-Load hinges have been designed and tested for high use, heavy commercial grade doors
- Designed to "Fit and Forget" these hinges have excellent wear-ability with self-lubricating polymer bearings.
- Grease free, no dripping oil or black marks.
- Manufactured in the UK.
- Tested and passed to British standard EN.1935 2002 overall grade 14.
- Tested to grade 7 door mass suitable for doors up to 160kg in weight.
- The bearing avoid metal to metal movement by using polymer bushes in the knuckle, impregnated with a specially formulated lubricant, This construction eliminates the wear and regular maintenance required by other types of hinge.
- Special order - lead time 2-3 weeks.

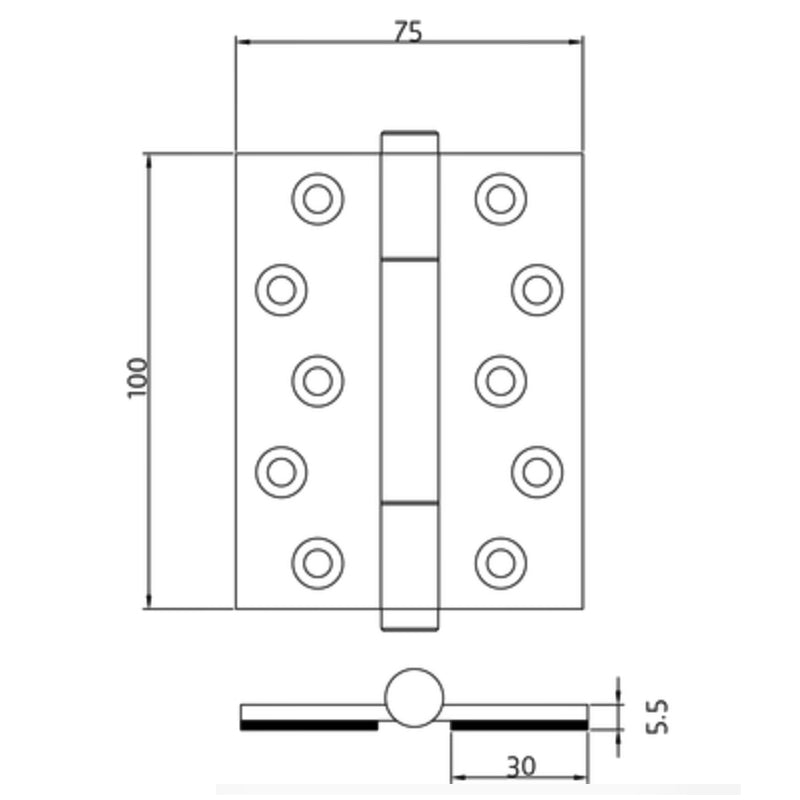

Dimensions
| Height (H) |
100mm
|
|---|---|
| Width (W) |
75mm
|
| Leaf Width |
30mm
|
| Thickness |
5.5mm (Including Intumescent Backing)
|
Finish
- Satin nickel
- Free delivery on orders over £100 (£5.95 below).
- 30-day returns
Describe this product detail here.
