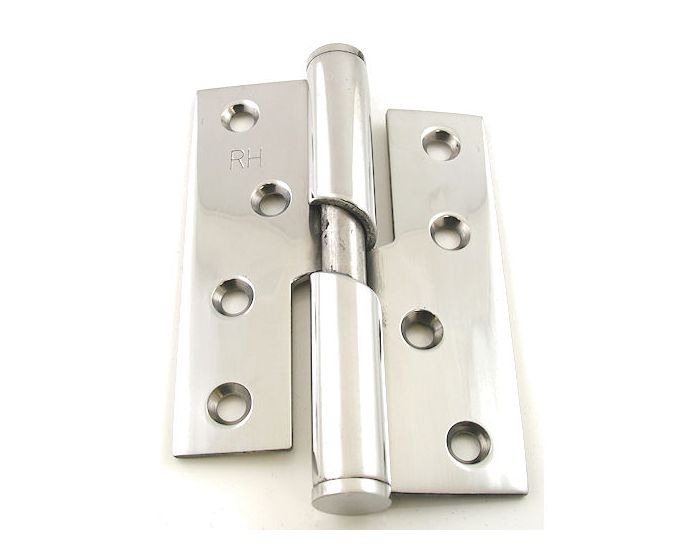

Rising Butt Hinges - 102mm x 76mm - Polished Stainless Steel

Catalogue Number:
20154
Full Description
Product Name Price Qty
20154.1 - Rising Butt Hinges - Polished Stainless Steel - 102mm x 76mm - Left Hand - Pair
£14.62 £12.18

Per Pair - (2 Hinges)
20154.2 - Rising Butt Hinges - Polished Stainless Steel - 102mm x 76mm - Right Hand - Pair
£14.62 £12.18

Per Pair - (2 Hinges)
  • Architectural quality stainless steel rising butt hinges
  • Suitable for internal or external doors that need to self close - (not suitable for use on fire doors)

Finish

  • Polished stainless steel

Dimensions

Diagram of a RIGHT hand rising butt hinge

ABOVE DIAGRAM SHOWS A RIGHT HAND RISING BUTT HINGE

Item Code
20154.1
20154.2
Dimension On Diagram
Height
102mm
102mm
A
Width
76mm
76mm
B
Leaf Width
30mm
30mm
C
When door is open at 90degrees rises by
5mm
5mm
D
Thickness
3mm
3mm
N/A

Important Info Before You Buy

  • Rising butt hinges are used on doors that need to be self closing but NOT fire rated
  • When the door is fully open at 90degrees the door will rise by approximately 5mm
  • Please note - rising butt hinges are handed left or right



  • The below diagram shows how to determine when a LEFT hand rising butt is required
Diagram showing when a LEFT hand rising butt is required





  • The below diagram shows how to determine when a RIGHT hand rising butt is required
Diagram showing when a RIGHT hand rising butt is required
  • Suitable for wooden doors
  • Base material is a stainless steel ideal for internal or external use



  • Sold and priced in pairs & Come supplied screws
More Information
Item 20154
Item Code 20154
Finish Polished Stainless Steel
Dimensions 102mm x 76mm
Sold Per Pair - (2 Hinges)
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
