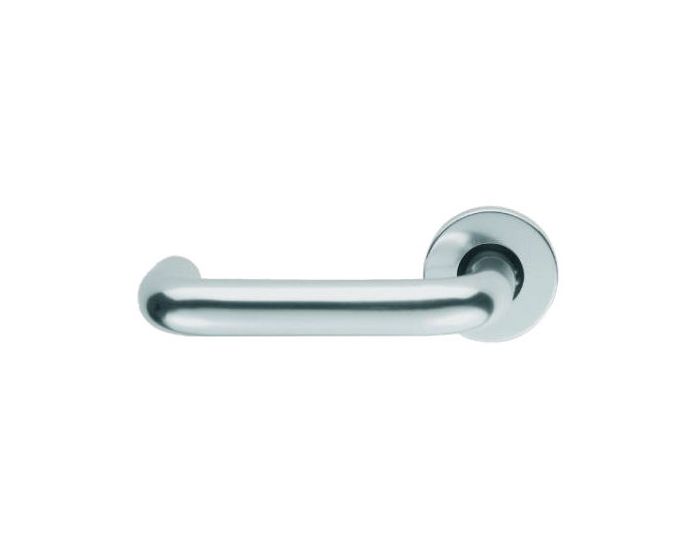

Safety Lever To BS:8300 / ADM - Collection Silver Anodised Aluminium - Suitable For Use With FD30 / FD60 Fire Doors

• 19mm diameter tubular levers with a "return to door" design with round rose.

• Made from aluminium with a silver anodised finish known as SAA.

• Suitable for domestic or commercial use.

• 10mm press on rose.

• Good quality for an economy range.

• Matching SAA accessories available including Standard escutcheons (keyhole covers), Euro profile escutcheons, a bathroom turn & release set and a disabled bathroom turn and release set.

How To Order Lever Handles With A Rose

• For Non-Locking Doors - 1 x (Pair) Lever Handles Only

• For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

• Standard escutcheon - (key hole cover to suit regular "chubb style locks")

• Euro profile escutcheon - (key hole cover to suit euro profile cylinders)

• Turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors)

Base Material

• Made from aluminium.

Finish Details

• SAA - Silver anodised aluminium.

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

• Rose Diameter - 52mm
• Rose Thickness - 8mm
• Lever Length - 145mm
• Lever Diameter - 19mm

Spindle Size

• 8mm x 8mm square - UK Standard.

Fixings

• Press on rose.
• Concealed bolt together fixing.
• Comes supplied with M4 male and female bolt through fixings and 8mm spindle.
• Grub screw fixing to spindle for extra strength once fitted to the door.

Usage

• Suitable for residential or commercial use.
• Suitable for internal or external use.

Standards This Product Conforms To

•
  Inclusive design - The shape and style of these lever handles are compliant to Approved Doc M (ADM) and meet the dimensional requirements of BS 8300. These handles are suitable for use in public buildings.

•
  Successfully type tested to the all the requirements of the European performance standard BS EN1906 2002

•
  These door handles have been included on a successful fire test to BS EN1634: Part 1 2000 - Assessed for use on 30 minute and 1 hour fire doors FD30 / FD60.

Unit Of Sale

• Lever handles are sold in pairs
