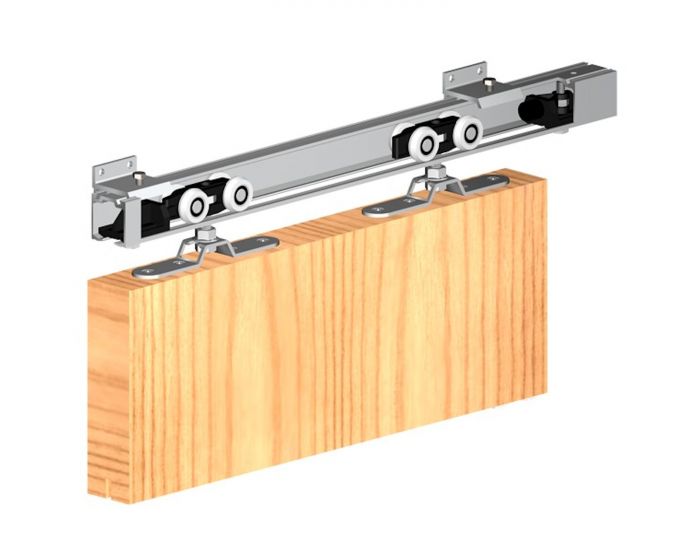

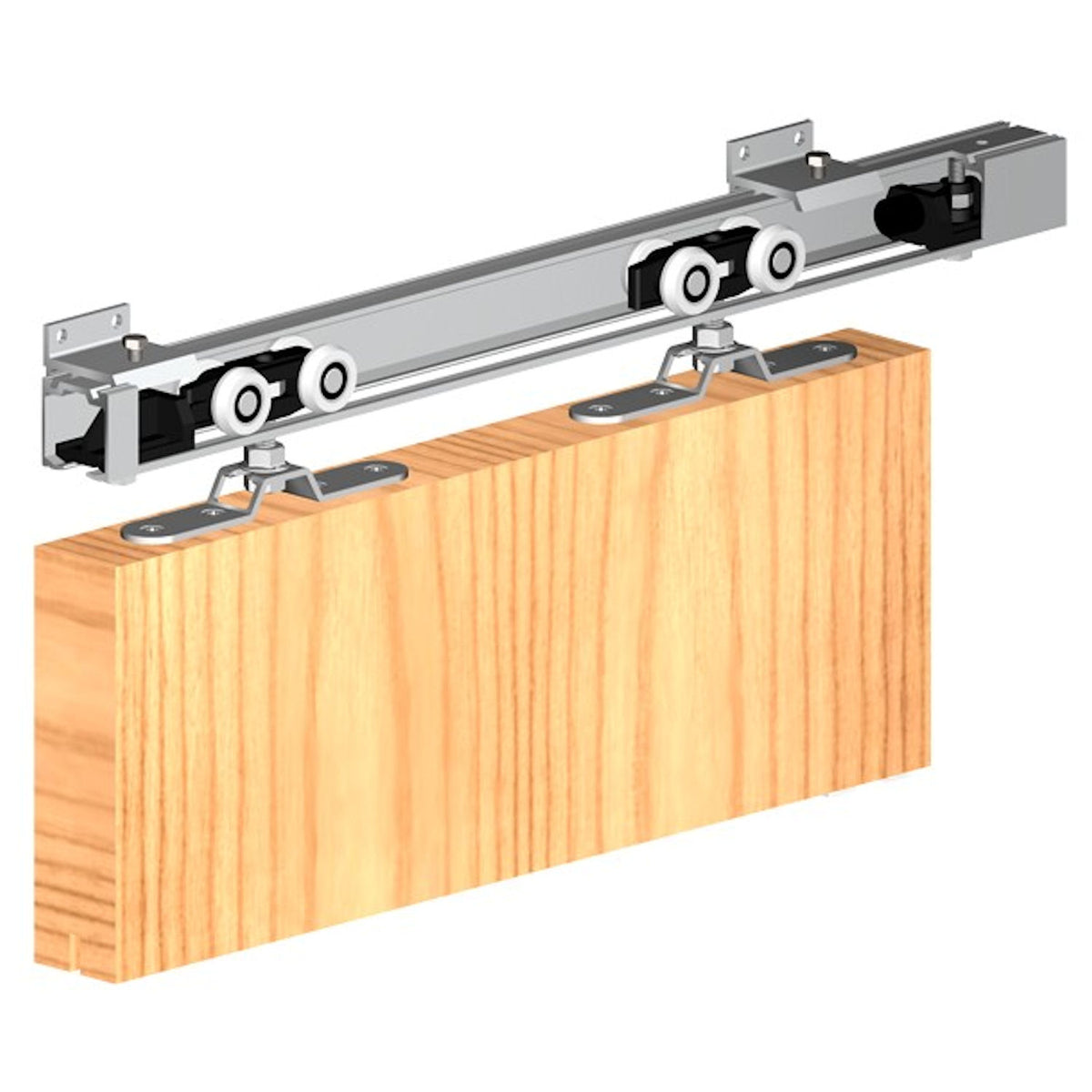

Sliding Door Gear System With Ball Bearing Rollers - For Timber Doors Up to 120kg In Weight

Catalogue Number:

31269

Full Description

Product Name Price Qty

31269.1 - 120kg - Sliding Door Gear System - For Doors 750mm Wide - 1500mm Track Length

£93.72 £78.10

Per Kit

31269.2 - 120kg - Sliding Door Gear System - For Doors 900mm Wide - 1800mm Track Length

£103.68 £86.40

Per Kit

31269.3 - 120kg - Sliding Door Gear System - For Doors 1000mm Wide - 2000mm Track Length

£109.73 £91.44

Per Kit

31269.4 - 120kg - Sliding Door Gear System - For Doors 1200mm Wide - 2400mm Track Length

£120.12 £100.10

Per Kit

31269.5 - 120kg - Sliding Door Gear System - For Doors 1500mm Wide - 3000mm Track Length

£133.01 £110.84

Per Kit

Enquire Now

Description

The ball bearing sliding door system is designed for use on timbers doors up to 120kg in weight.

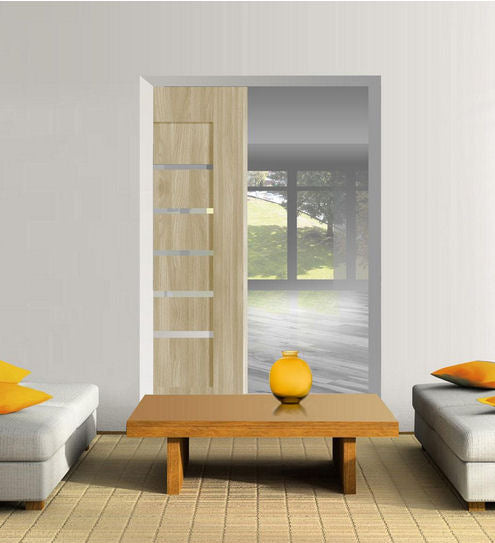

Suitable for use for sliding doors between rooms, wall openings or for entrances.

Each set includes all the main components needed to install a long lasting, smooth running soffit (celing) mounted sliding door.

For wall mounting the track, the wall mounted angle brackets must be purchased separately - see product 40278.

Aluminium pre-drilled track for a durable, long lasting finish and easy installation.

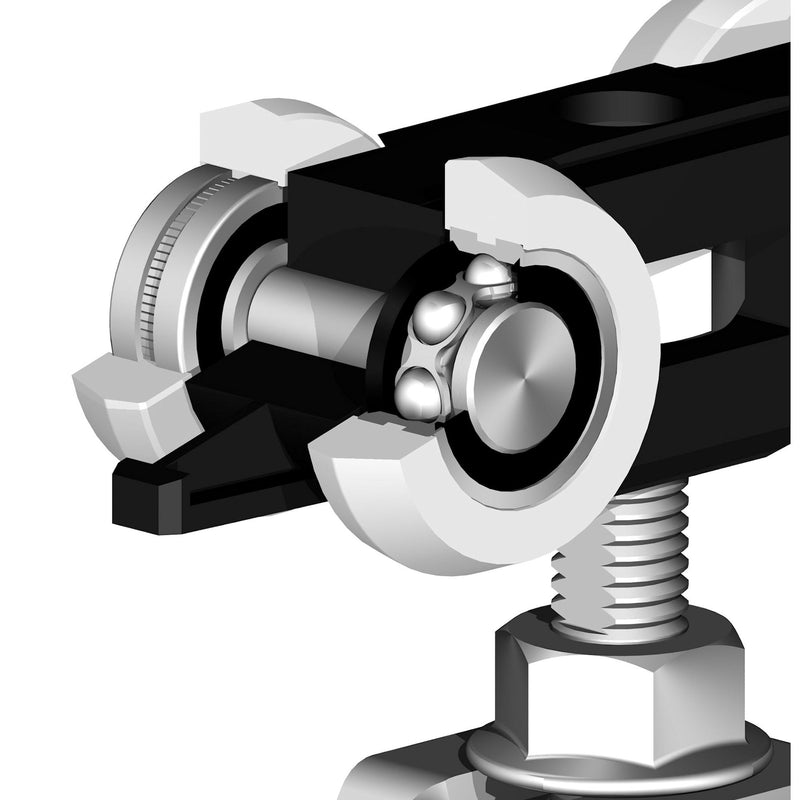

Hangers feature high quality ball bearing rollers for smooth and quiet running.

Anti-jump system means wheels will always run smooth.

Clear polycarbonate bottom guide - virtually invisible when installed.

Suitbale for use on timber doors

Single Sliding Doors

Diagram Showing A Single Sliding Door

Double Bi-Parting Doors

For doors up to 750mm wide a 3000mm track can be purchased with the extra door hanging kit - Product 40868

Foor doors over 750mm wide two kits can be fitted "end on" (next to each other) using the track joining bracket - Product 40864

Diagram Showing Two Sliding Door Kits Used Together For Use With Double Doors

Dimensions And Track Lengths Available

Diagram Showing How To Measure The Track Length Required For Sliding Doors

Item Code	Maximum Width Door (D)	Overall Track Length (L)	Maximum Door Weight (W)	Mimimum Door Thickness (T)
31269.1	750mm	1500mm	120kg	22mm
31269.2	900mm	1800mm	120kg	22mm
31269.3	1000mm	2000mm	120kg	22mm
31269.4	1200mm	2400mm	120kg	22mm
31269.5	1500mm	3000mm	120kg	22mm

Track Dimensions

Diagram showing track dimensions of the Herkules 60 sliding door gear system

Fixing Options

Designed for ceiling / soffit mounting as standard.

For wall mounting - the brackets must be purchased separatley - see product 40278.

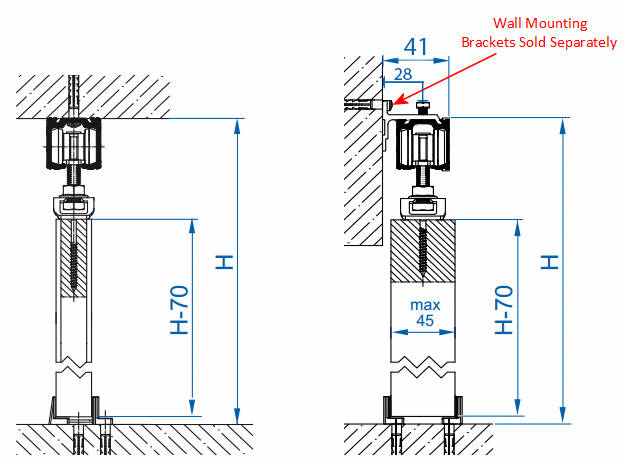

Diagram Showing Wall And Ceiling Mounted Fixing Option For The Herkules Sliding Door Gear

Clip On Pelmet Options

Clip on wrap around aluminium pelmet for use with wall mounted tracks - Product 40869.

Clip on bracket which allows for a custom made wooden pelmet to be fitted - Product 40865.

2 x clip aluminium pelmets used in conjunction with spacers for use when ceiling mounting the track - Product 40702.

Sliding-Door-Gear-System-With-Ball-Bearing-Rollers-For-Timber-Doors-Up-to-120kg-In-Weight

Floor Guide

The timber sliding door kit comes complete with a universal floor guide, fixed to the floor next to the door frame, this helps to guide the door insuring it runs straight.

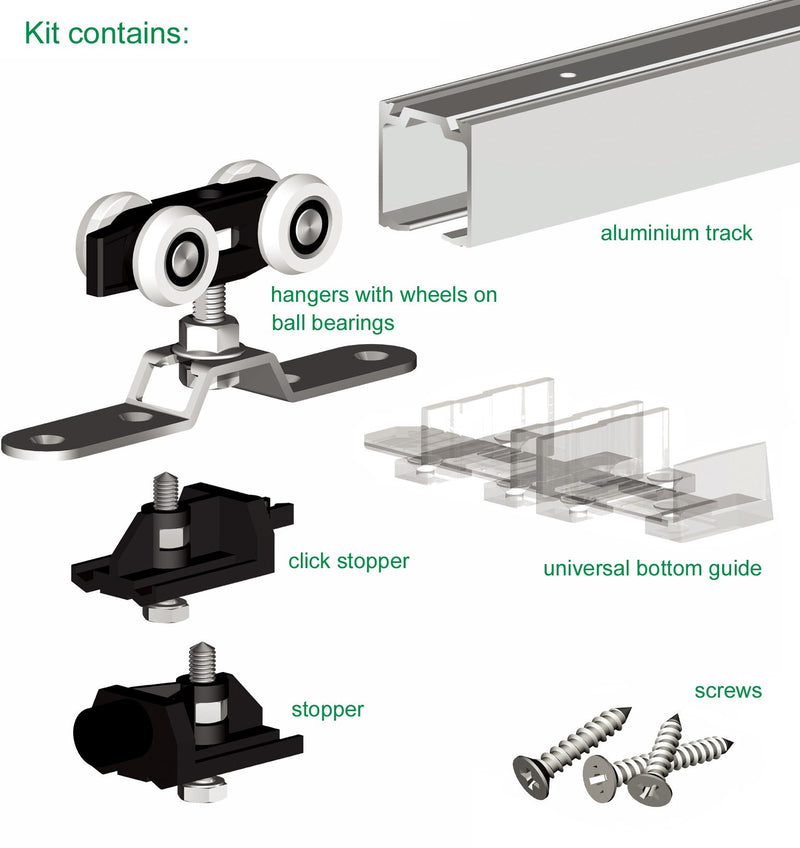

Items Included Within The Sliding Door Kit

1x Pre-drilled aluminium track
2x Ball bearing roller carriages
2x Buffer Door Stoppers
1x Universal floor guide

Product Video

Specification

More Information
Item	31269
Item Code	31269
Finish	Aluminium Track
Sold Per	Each
Availability	Non stock product - sent direct from factory - please allow 2-3 working days for delivery
