Eclisse Fire Rated Sliding Pocket Door System - Single Fire Door FD30 Kit - 100mm Finished Wall Thickness - Supplied With White Intumescent Seals

Catalogue Number:
40161
Full Description Related Products
Product Name Price Qty
40161.1 - Eclisse Sliding Pocket Door - Single FD30 - 100mm Finished Wall Thickness - Door Size - 610mm x 1981mm - Supplied With White Intumescent Seals
£534.60 £445.50

Per Kit
40161.2 - Eclisse Sliding Pocket Door - Single FD30 - 100mm Finished Wall Thickness - Door Size - 686mm x 1981mm - Supplied With White Intumescent Seals
£534.60 £445.50

Per Kit
40161.3 - Eclisse Sliding Pocket Door - Single FD30 - 100mm Finished Wall Thickness - Door Size - 762mm x 1981mm - Supplied With White Intumescent Seals
£534.60 £445.50

Per Kit
40161.4 - Eclisse Sliding Pocket Door - Single FD30 - 100mm Finished Wall Thickness - Door Size - 838mm x 1981mm - Supplied With White Intumescent Seals
£534.60 £445.50

Per Kit
40161.5 - Eclisse Sliding Pocket Door - Single FD30 - 100mm Finished Wall Thickness - Door Size - 914mm x 1981mm - Supplied With White Intumescent Seals
£534.60 £445.50

Per Kit
40161.6 - Eclisse Sliding Pocket Door - Single FD30 - 100mm Finished Wall Thickness - Door Size - 626mm x 2040mm - Supplied With White Intumescent Seals
£534.60 £445.50

Per Kit
40161.7 - Eclisse Sliding Pocket Door - Single FD30 - 100mm Finished Wall Thickness - Door Size - 726mm x 2040mm - Supplied With White Intumescent Seals
£534.60 £445.50

Per Kit
40161.8 - Eclisse Sliding Pocket Door - Single FD30 - 100mm Finished Wall Thickness - Door Size - 826mm x 2040mm - Supplied With White Intumescent Seals
£534.60 £445.50

Per Kit
40161.9 - Eclisse Sliding Pocket Door - Single FD30 - 100mm Finished Wall Thickness - Door Size - 926mm x 2040mm - Supplied With White Intumescent Seals
£534.60 £445.50

Per Kit
40161.10 - Eclisse Sliding Pocket Door - Single FD30 - 100mm Finished Wall Thickness - Door Size - 1026mm x 2040mm - Supplied With White Intumescent Seals
£534.60 £445.50

Per Kit
  • Eclisse sliding pocket door gear system for use with FD30 rated fire doors. Fully tested and approved to BS EN 1634-12008 by Cambridge Fire Research, UKAS approved testing authority.
  • Suitable for use with 30 minute (half hour) fire doors only.

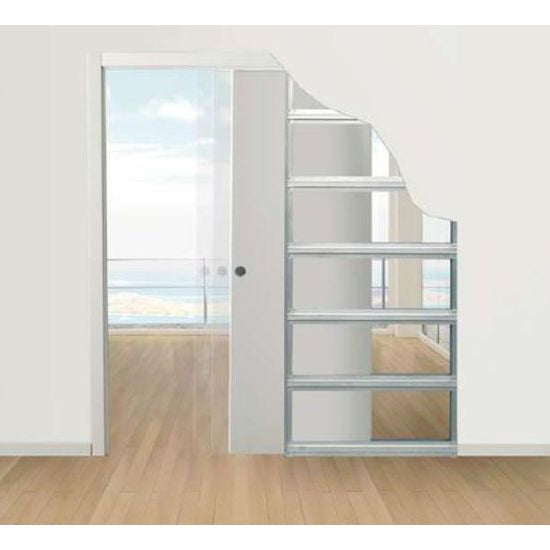

  • Allows an interior door to slide into a "pocket" within the wall cavity.

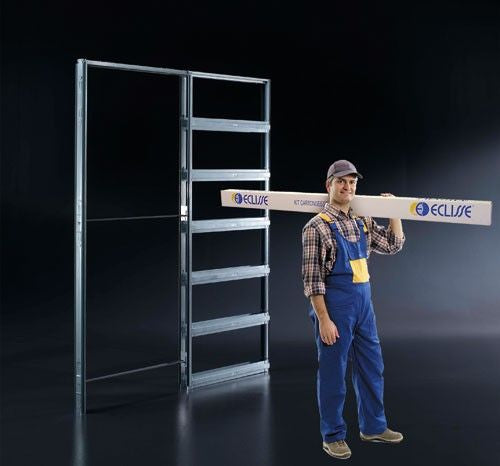

  • Each set includes all the main components needed to install a long lasting, smooth running sliding fire door including steel wrapped studs used to create the wall cavity or "pocket" for the door to slide into.
  • This high quality sliding door gear is suitable for residential and commercial applications. The unique design allows doors between 35mm-45mm thick to be installed with a finished wall of 100 mm.
  • Supplied as a kit to create the pocket, which can be fully fitted in under 60 minutes by a skilled installer.
  • Suitable for use with timber fire rated doors only - please note doors are supplied with white intumescent seals
  • Unlike other pocket door systems on the market the Eclisse fire rated system comes supplied complete with timber jambs and architraves.
  • 15mm x 4mm Intumescent fire seals must be fitted into the door jamb - supplied with white intumescent seals

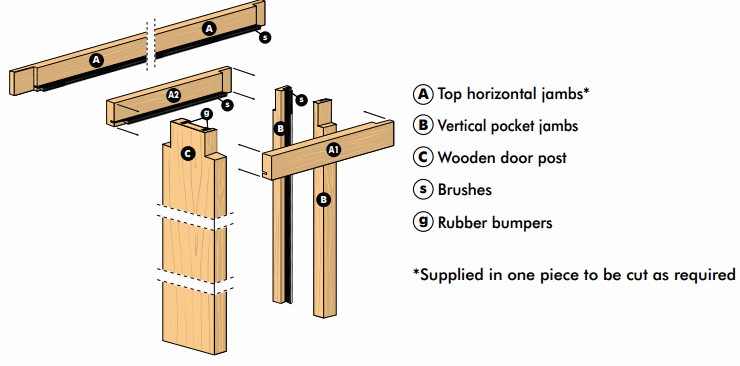

Diagram showing the wooden jamb kit supplied with the Eclisse FD30 Fire rated sliding pocket door system

Accessories Available To Suit Eclisse System

  • Anti-Slam / Soft close mechanism - to dampen softly close the sliding door - 43129.1 - (sold separately).

Features & Benefits

  • Space saving - sliding doors help create up to 8% more living more space within a property
  • Easy access
  • Quiet operation
  • Easy installation
  • Economical
  • Prefabricated components

Dimensions - Frame Sizes & Door Kit Sizes Available

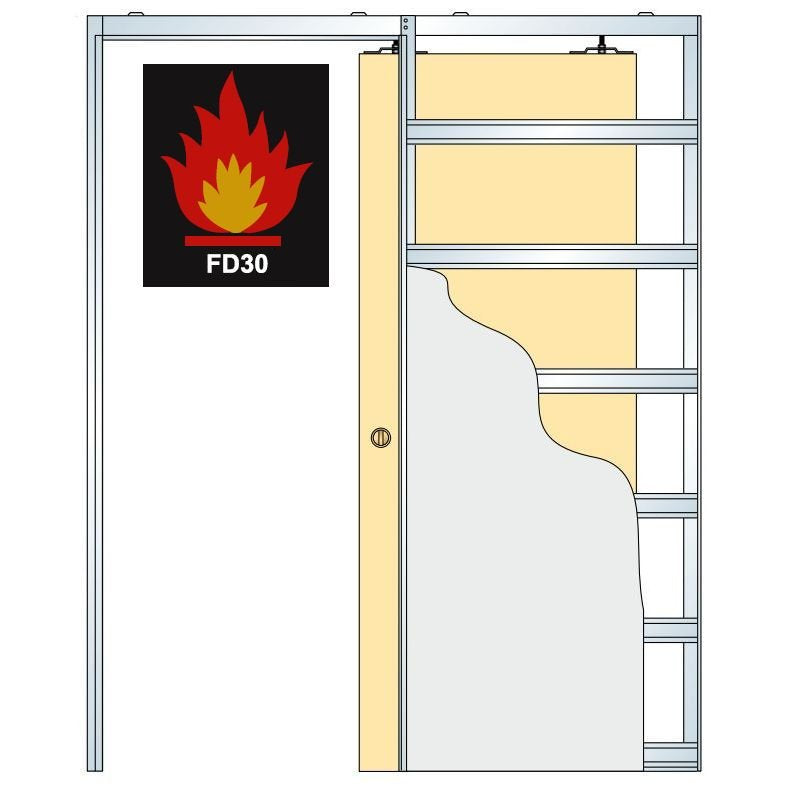

Diagram showing dimensions of the Eclisse fire rated sliding pocket door gear system for single FD30 fire doors

Item Code Door Size (DW x DH) Max Passage Size (PW x PH) Overall Frame Size (W x H) Finished Wall Thickness
40161.1  610mm x 1981mm - (2ft. 0in. x 6ft. 6in.) 563mm x 1951mm 1279mm x 2061mm  100mm
40161.2 686mm x 1981mm - (2ft. 3in. x 6ft. 6in.) 639mm x 1951mm 1455mm x 2061mm 100mm
40161.3 762mm x 1981mm - (2ft. 6in. x 6ft. 6in.) 715mm x 1951mm 1631mm x 2061mm 100mm
40161.4 838mm x 1981mm - (2ft. 9in. x 6ft. 6in.) 791mm x 1951mm 1707mm x 2061mm 100mm
40161.5 914mm x 1981mm - (3ft. 0in. x 6ft. 6in.) 878mm x 1951mm 1894mm x 2061mm 100mm

40161.6 626mm x 2040mm  578mm x 2010mm 1294mm x 2120mm 100mm
40161.7 726mm x 2040mm  678mm x 2010mm 1494mm x 2120mm 100mm
40161.8 826mm x 2040mm  778mm x 2010mm 1694mm x 2120mm 100mm
40161.9 926mm x 2040mm  878mm x 2010mm 1894mm x 2120mm 100mm
40161.10 1026mm x 2040mm 978mm x 2010mm 2094mm x 2120mm 100mm
  • Please note fire-board (fire rated plasterboard) is not provided with this kit and must be bought separately.
  •  15mm x 4mm Intumescent fire seals must be fitted into the door jamb - supplied with white intumescent seals


Items Included Within The Eclisse Pocket Sliding Door Kit

  • Metal frame work to create the "pocket"
  • Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
  • Roller bearing door hanger kit
  • Timber lining kit - (door jamb kit with integrated architraves)
  • 15mm x 4mm White intumescent fire seals



Installation Video

More Information
Item 40161
Item Code 40161
Finish -
Dimensions 100mm Wall Thickness
Fire Rated FD30 - Fire Rated
Sold Per Kit
Availability Non stock product - sent direct from factory - please allow 1-2 working days for delivery
Non stock product - sent direct from factory - please allow 1-2 working days for delivery
Download PDF Data Sheet
