Sliding Door Gear System For 8-12mm Thick Glass Doors Up to 100kg In Weight

Catalogue Number:
31278
Full Description Related Products
Product Name Price Qty
31278.1 - Glass Sliding Door Gear System For 8-12mm Thick Glass Doors Up to 1040mm Wide - 2000mm Track Length
£147.98 £123.32

Per Kit

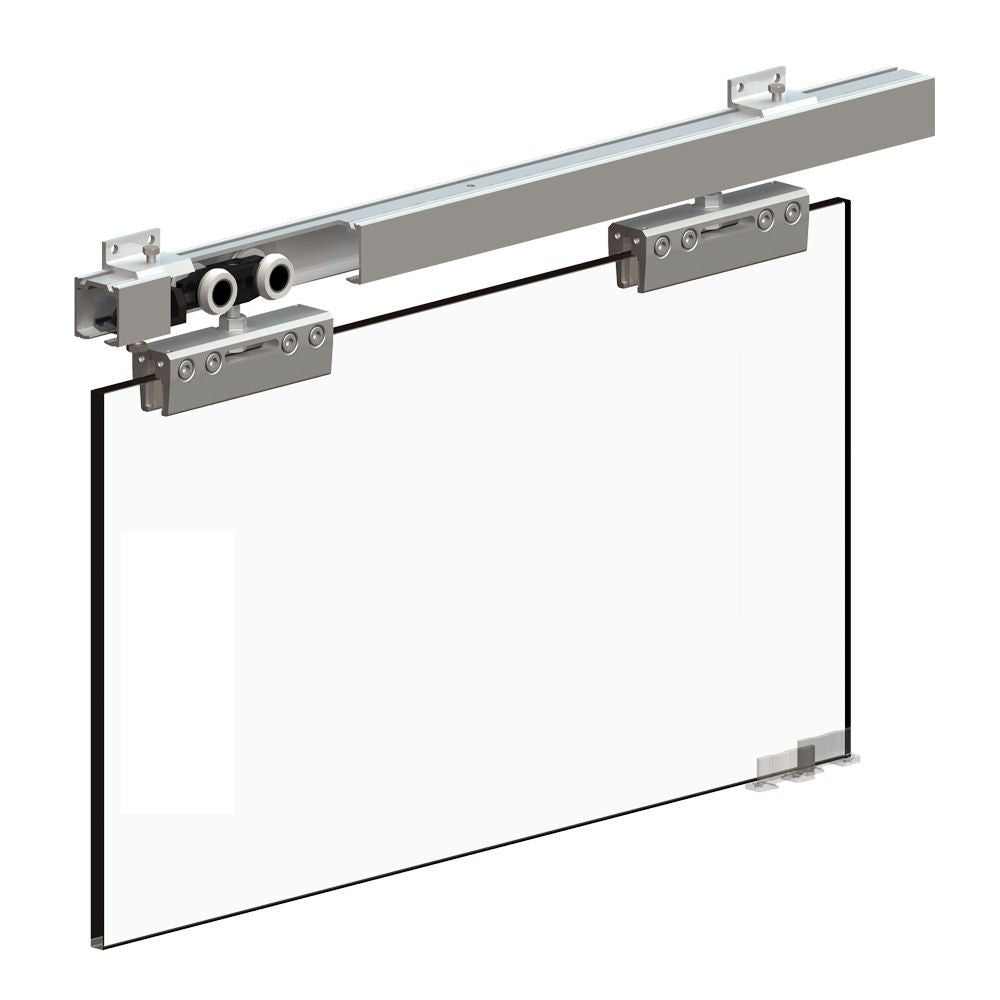

  • The Glass sliding door system is designed for use on 8-12mm thick glass doors up to 100kg in weight.
  • Suitable for use for glass sliding doors between rooms, wall openings or for entrances.

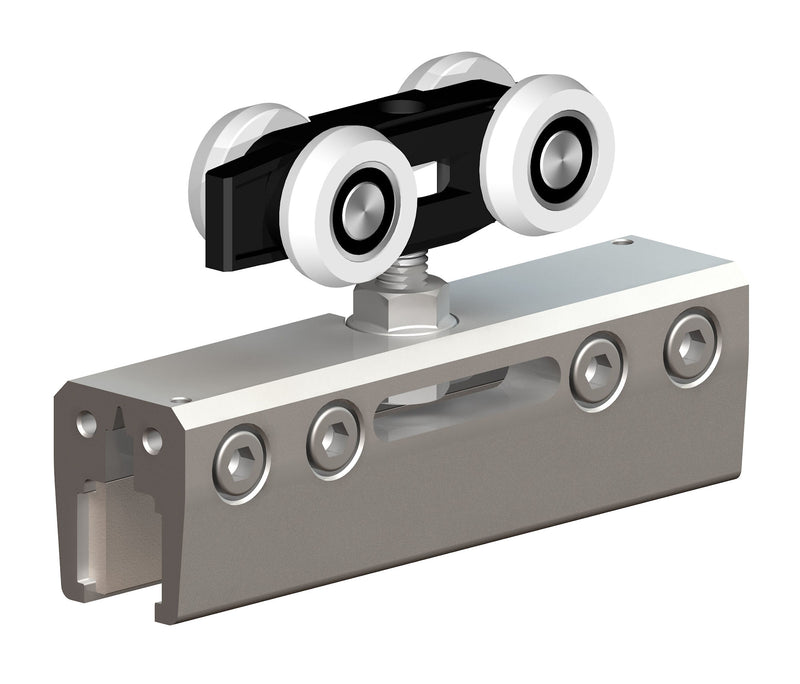

  • Small one-piece glass clamp has unique design and is extremely easy to fit and adjust. The clamps have settings for 8, 10 and 12mm door thickness and includes self adhesive spacers.
  • No need to cut or drill the glass, saving time and making installation much easier.
  • Each set includes all the main components needed to install a long lasting, smooth running glass sliding door.
  • Aluminium pre-drilled track for a durable, long lasting finish and easy installation. Track can be soffit / ceiling or wall mounted (wall brackets included).

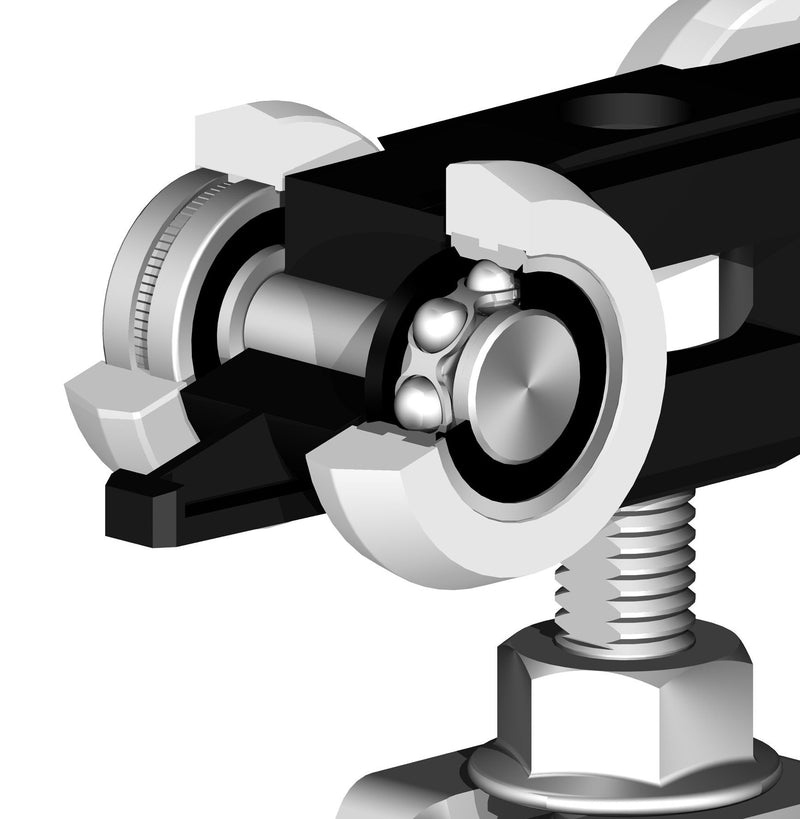

  • Hangers feature high quality ball bearing rollers for smooth and quiet running.
  • Anti-jump system means wheels will always run smooth.
  • Clear polycarbonate bottom guide - virtually invisible when installed.


Single Sliding Doors

Diagram Showing A Single Sliding Door





Double Bi-Parting Doors

  • Two kits can be fitted "end on" (next to each other) to allow for double doors.

Diagram Showing Two Sliding Door Kits Used Together For Use With Double Doors



Dimensions And Track Lengths Available

Diagram Showing How To Measure The Track Length Required For Sliding Doors



Item CodeMaximum Width Door (D)Overall Track Length (L)Maximum Door Weight (W)Glass Door Thickness (T)
31278.1 1040mm 2000mm 100kg 8mm - 12mm

Track Dimensions

Diagram showing track dimensions of the Herkules 60 sliding door gear system



Fixing Options

  • Designed for ceiling / soffit mounting as standard
  • Supplied with wall mounting brackets to allow the track to be face fixed to the wall (included within the pack).

Ceiling & Wall Mounting Options For Herkules Glass Sliding Door Gear



Clip On Pelmet Options

  • Clip on wrap around aluminium pelmet for use with wall mounted tracks - Product 40869.
  • Clip on bracket which allows for a custom made wooden pelmet to be fitted - Product 40865.
  • 2 x clip aluminium pelmets used in conjunction with spacers for use when ceiling mounting the track - Product 40702.


 Sliding-Door-Gear-System-For-8-12mm-Thick-Glass-Doors-Up-to-100kg-In-Weight

Floor Guide

  • The Glass sliding door kit comes complete with a universal floor guide, fixed to the floor next to the door frame, this helps to guide the door insuring it runs straight.
Diagram showing the universal floor guide for sliding door gear systems

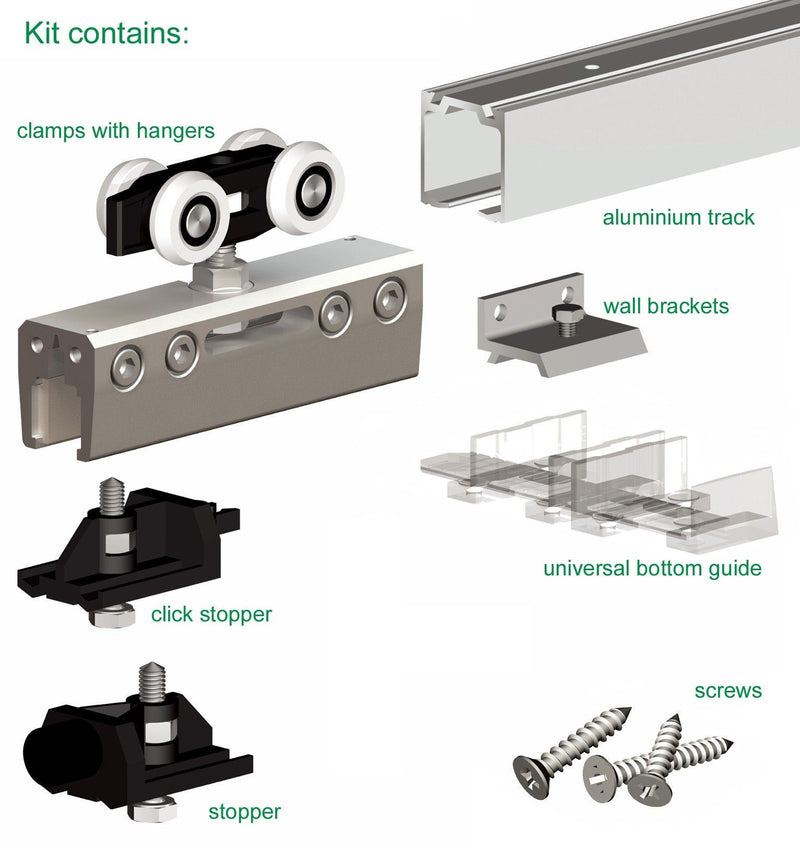

Items Included Within The Glass Sliding Door Kit

  • 1x Pre-drilled aluminium track
  • 2x Glass clamps
  • 2x Ball bearing roller carriages
  • 2x Buffer door stoppers
  • 1x Universal floor guide

Product Video

More Information
Item 31278
Item Code 31278
Finish Aluminium Track
Sold Per Kit
Availability Non stock product - sent direct from factory - please allow 2-3 working days for delivery
Non stock product - sent direct from factory - please allow 2-3 working days for delivery
Download PDF Data Sheet
