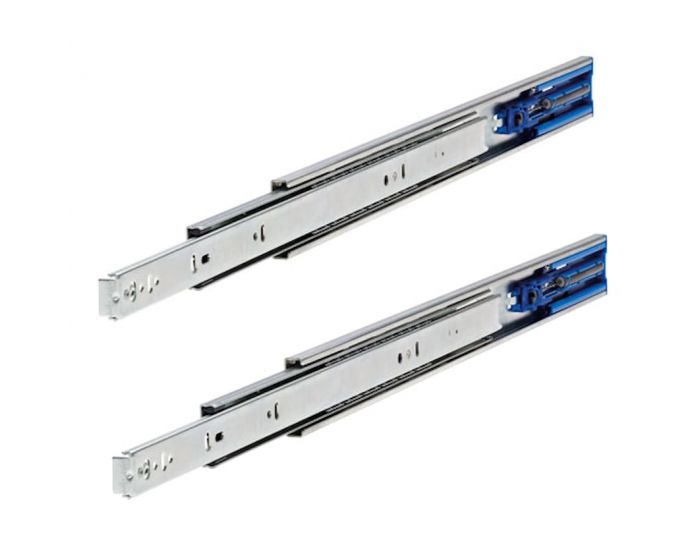

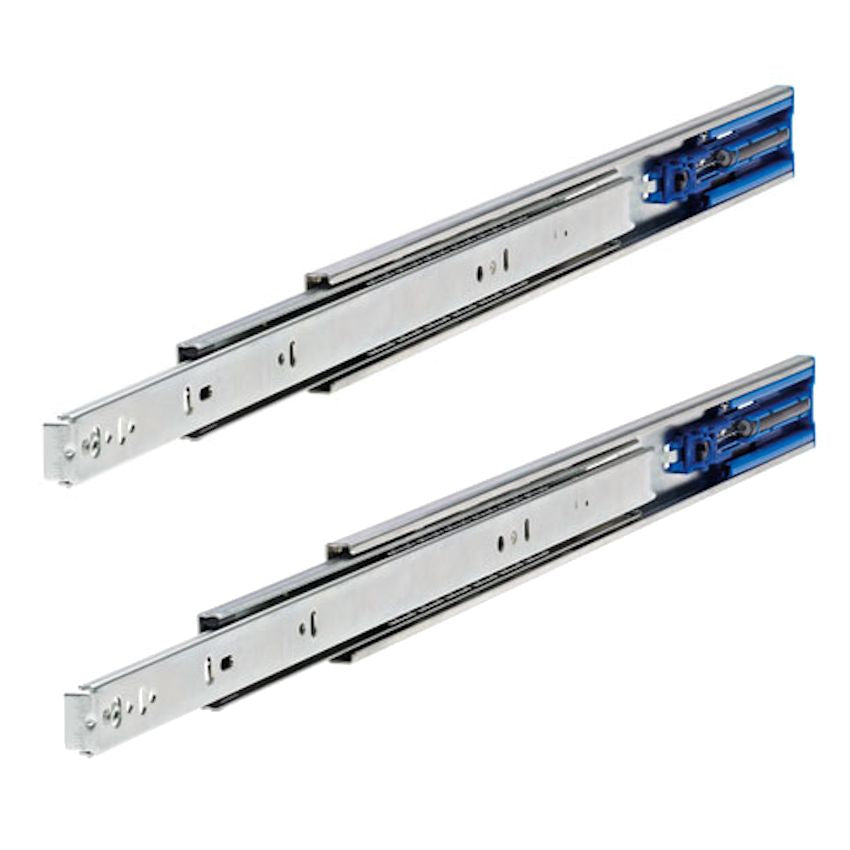

Soft Close - Ball Bearing Drawer Runners - Full Extension - Front Disconnect - 35kg Weight Limit - Zinc Plated

Catalogue Number:
31538
Full Description
Product Name Price Qty
31538.1 - Soft Close - Ball Bearing Drawer Runners - Full Extension - Zinc Plated - 350mm - Pair
£33.72 £28.10

Per Pair
31538.2 - Soft Close - Ball Bearing Drawer Runners - Full Extension - Zinc Plated - 400mm - Pair
£27.43 £22.86

Per Pair
31538.3 - Soft Close - Ball Bearing Drawer Runners - Full Extension - Zinc Plated - 450mm - Pair
£34.68 £28.90

Per Pair
Out of stock
31538.4 - Soft Close - Ball Bearing Drawer Runners - Full Extension - Zinc Plated - 500mm - Pair
£28.44 £23.70

Per Pair
31538.5 - Soft Close - Ball Bearing Drawer Runners - Full Extension - Zinc Plated - 550mm - Pair
£35.57 £29.64

Per Pair
31538.6 - Soft Close - Ball Bearing Drawer Runners - Full Extension - Zinc Plated - 600mm - Pair
£29.16 £24.30

Per Pair
31538.0 - Soft Close - Ball Bearing Drawer Runners - Full Extension - Zinc Plated - 300mm - Pair
£23.14 £19.28

Per Pair
Enquire Now

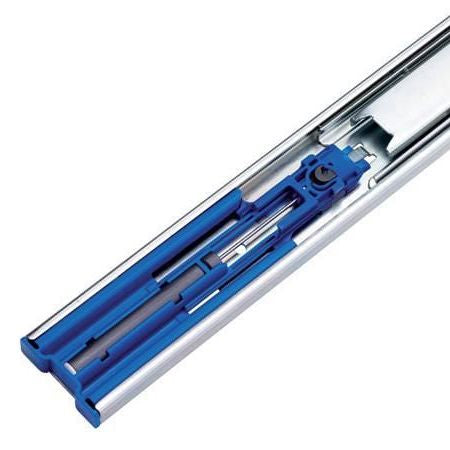

  • Ball bearing drawer runners with built-in soft closing mechanism.
  • Soft closing on last 45 mm of closing cycle.
  • Smooth and quiet operation.
  • Ideal for use with kitchen drawers, wardrobes and TV units.
  • Double (full) extension design allows the drawer to be pulled fully out from the cupboard / carcass.
  • 36kg weight limit.
  • Front disconnect feature allows the drawer to be removed from the cabinet by simply pressing the lever built into the runners.
  • Hold-in feature holds the closed drawer in place.
  • Cam adjuster offers installers a simple, yet precise mechanism for vertical drawer adjustment.
  • Side mounted - 13mm gap required between drawer side and carcass.
Diagram showing components of the soft closing ball bearing drawer runners
Diagram showing soft closing ball bearing drawer runners fitted to a drawer unit

Dimensions

Diagram Showing Dimensions Of The Ball Bearing Full Extension Soft Close Drawer Runners

  • Runner height - 46mm
  • Runner thickness (Installation Width Required) - 13mm

Drawer runner lengths available
Diagram showing extension lengths and installation lengths of the ball bearing drawer runners
Item CodeInstalled Length (A)Extension Length (B)Max Weight
31538.0 300mm 260mm 32kg
31538.1 350mm 350mm 33kg
31538.2 400mm  400mm 34kg
31538.3 450mm  450mm  35kg
31538.4 500mm  500mm  35kg
31538.5 550mm 550mm  35kg
31538.6 600mm  600mm 35kg

Base Material

  • Made from steel.

Finish Details

  • Bright zinc plated.

Unit Of Sale

  • These ball bearing drawer runners are sold as pair (two runners).
More Information
Item 31538
Item Code 31538
Finish Zinc Plated
Sold Per Pair
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
