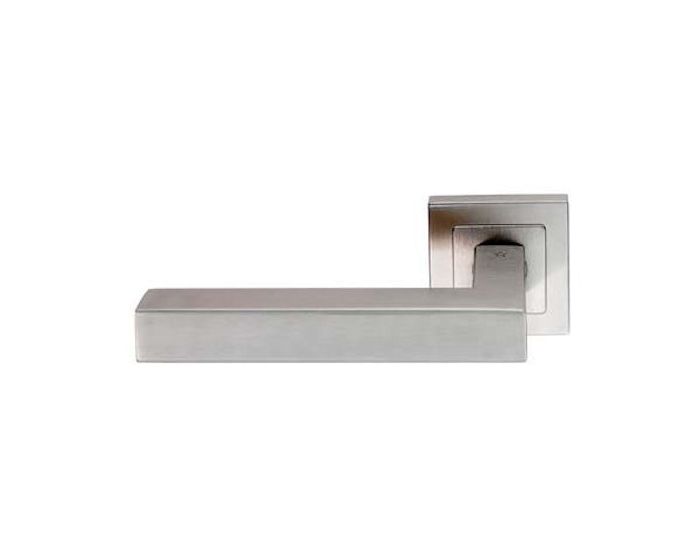

Square Lever On Square Rose - Suitable For Use On FD30 / FD60 Fire Doors - Satin Stainless Steel

Catalogue Number:
30223
Full Description Related Products
Product Name Price Qty
30223.1 - Square Lever On Square Rose Lever Handles Only - Tested For Use With FD30 / FD60 Fire Doors - Satin Stainless Steel - Pair
£28.25 £23.54

Per Pair
Enquire Now
  • SSL1401 STEELWORX lever handles from the Eurospec door handle collection, a modern square design lever fitted to a square shape fixing rose.
  • Made from grade 304 stainless steel.
  • Satin (brushed finish) stainless steel.
  • Economy range with clip on rose, ideal for those on a budget looking for a contemporary design handle.
  • Suitable for residential use.
  • Matching square stainless steel accessories available including Standard escutcheons (keyhole covers), Euro profile escutcheons and a bathroom turn & release set.

How To Order Lever Handles With A Rose

  • For Non-Locking Doors - 1 x (Pair) Lever Handles Only

Diagram showing levers handle only for non-locking doors

  • For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

Diagram showing lever handles and standard escutcheons for locking doors

  • For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

Diagram showing lever handles with euro profile escutcheon for doors locking via Euro profile cylinder

  • For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Diagram showing lever handles with a bathroom turn and emergency release set for locking bathroom doors

Matching Accessories

  • Standard escutcheon - (key hole cover to suit regular "chubb style locks") - SSP1405SSS/DUO

  • Euro profile escutcheon - (key hole cover to suit euro profile cylinders)SSE1405SSS/DUO

  • Turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors) - SST1415SSS

Base Material

  • Made from grade 304 stainless steel.

Finish Details

  • Satin stainless steel - a grey colour with very slight golden undertones. The raw stainless steel has been satinised "brushed" to produce visible brush marks in the surface of the item.

Operation

  • Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

  • Rose Diameter - 50mm
  • Rose Thickness - 6mm
  • Lever thickness - 19mm x 19mm square
  • See technical information tab for diagram and further details.

Spindle Size

  • 8mm x 8mm square - UK Standard.

Fixings

  • Clip on rose.
  • Concealed bolt together fixing.
  • Comes supplied with M4 male and female bolt through fixings and 8mm spindle.
  • Grub screw fixing to spindle for extra strength once fitted to the door.

Usage

  • Suitable for residential use.
  • Suitable for internal or external use.

Standards This Product Conforms To

  • This door handle has been tested to the European performance standard BS EN 1906 2002
    Successfully type tested to the all the requirements of the European performance standard BS EN1906 2002
  • This door handle has been included on a successful fire test to BS EN 1634 Part 1 2000
    These door handles have been included on a successful fire test to BS EN1634: Part 1 2000 - Assessed for use on 30 minute and 1 hour fire doors FD30 / FD60.

Unit Of Sale

  • Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
  • Escutcheons (key hole covers) are sold individually (each.)
  • Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
More Information
Item 30223
Item Code 30223
Finish Satin Stainless Steel
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Pair
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
