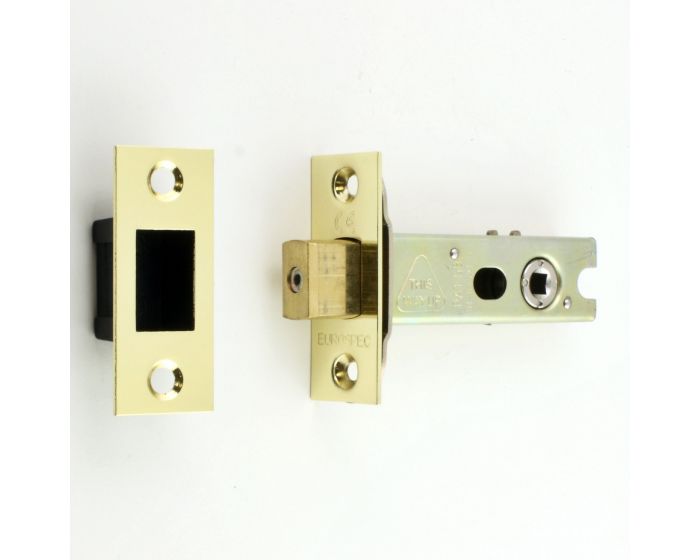

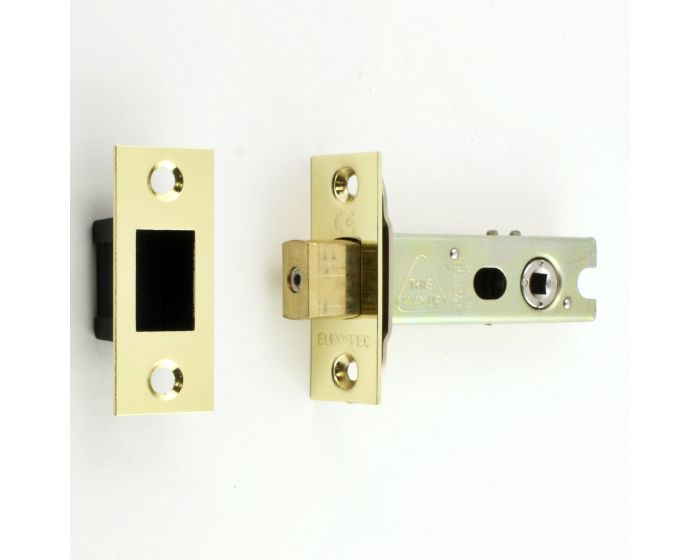

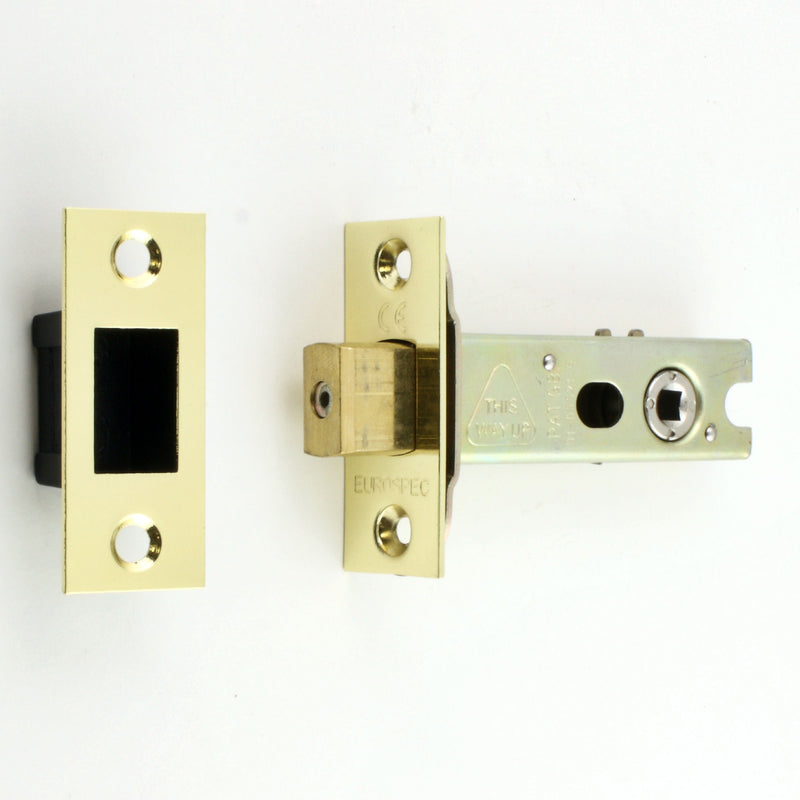

Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - Polished Brass PVD Plated

Catalogue Number:
20081
Full Description Related Products
Product Name Price Qty
20081.4 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 64mm Case Depth (44mm Backset) - Polished Brass PVD Plated
£7.63 £6.36

Per Each
20081.1 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 76mm Case Depth (57mm Backset) - Polished Brass PVD Plated
£7.63 £6.36

Per Each
20081.2 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 102mm Case Depth (82mm Backset) - Polished Brass PVD Plated
£10.06 £8.38

Per Each
20081.3 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 125mm Case Depth (108mm Backset) - Polished Brass PVD Plated
£11.45 £9.54

Per Each
Enquire Now
  • Tubular style mortice deadbolt.

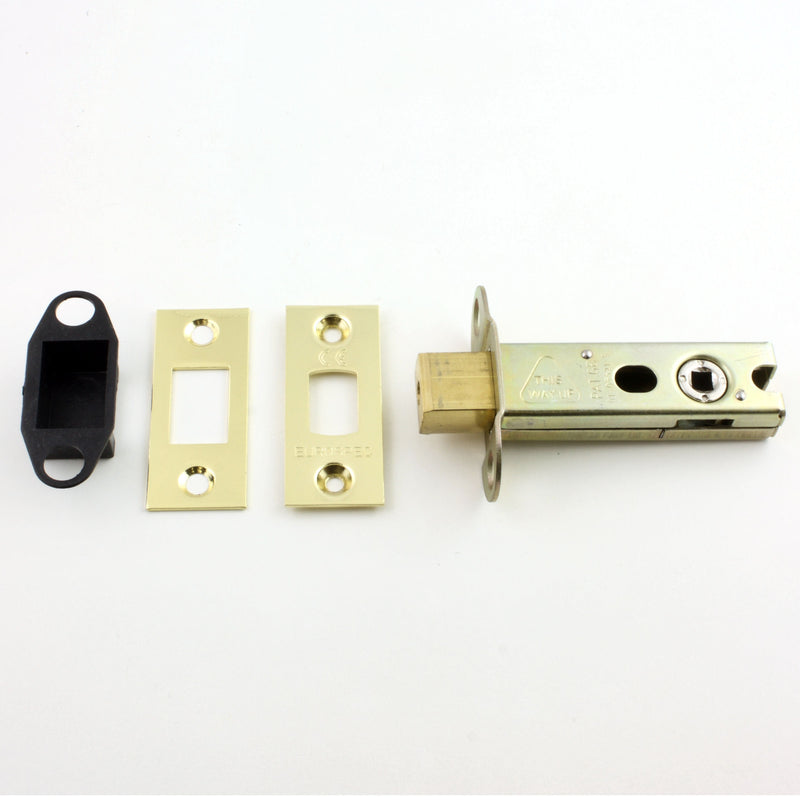

  • Supplied with a PVD brass (shiny finish) forend and frame mounted receiver plate including black plastic back box.
  • 5mm follower designed for used with UK style bathroom turn & release sets.
  • Twisting the follower a quarter is enough to throw and withdraw the deadbolt.
  • 38mm bolt through holes allows turn and release sets to be bolted together for extra strength when fitted to the door.
  • Architectural quality.
  • Designed for use on bathroom doors, WC's and toilet doors
  • Can also be used as a heavy duty security bolt for front and back doors when used in conjunction with the SDB5010EB key and escutcheon pack.


Operation

  • Deadbolt is locked and un-locked by using a bathroom thumbturn and emergency release set.

Features

  • Solid brass deadbolt with anti-saw rollers.
  • Bolt through facility for bolt together fixing furniture with 38mm fixing centres.
  • 5mm x 5mm spindle follower (to suit standard UK size turn & release spindles).



Security Level

  • Medium security architectural range.
  • Suitable for use on internal doors in residential, commercial or public buildings.

Finish

  • PVD brass.



Alternative Finishes Available

  • Polished stainless steel.
  • Satin stainless steel.
  • Florentine bronze.

Dimensions

Diagram and dimensions of a easi-t mortice deadbolt
Item CodeCase Depth (A)Backset To Follower (B)
20081.4 64mm 44mm
20081.1 76mm 57mm
20081.2 102mm 82mm
20081.3 125mm 108mm

Standards This Product Conforms To

  • Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 3H810F-BG00.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
  • Certifire approved.
  • CE Marked / UKCA Marked.
  • Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

  • This dead bolt is also available to order with radius (rounded shape) forend and receiver plates. Please contact us for lead times and prices.
  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.



Rebate Kit For Double Rebated Doors

  • No rebate kit available to suit this dead bolt.


Unit Of Sale

  • Each - (1 x dead bolt supplied with forend, receiver plate and plastic back box).
More Information
Item 20081
Item Code 20081
Finish Polished Brass PVD Plated
Dimensions 64mm. 76mm, 102mm or 125mm Case Depth
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
Download PDF Data Sheet
