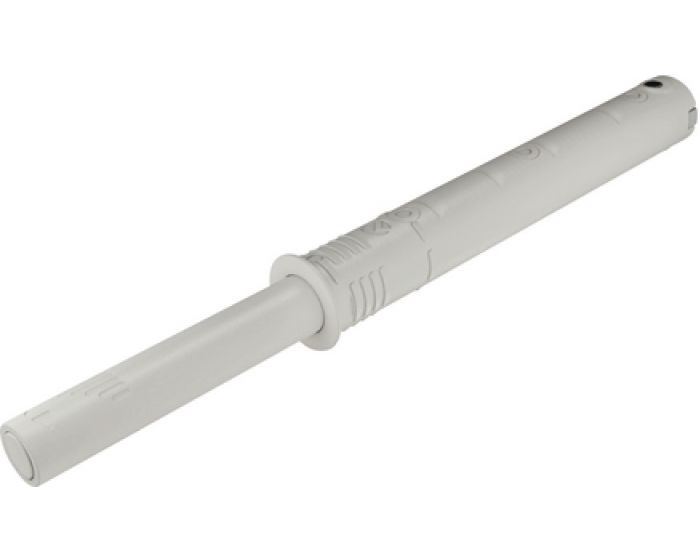

Heavy sprung pressure catch for use on cabinet and cupboard doors with no handles.
Dual fixing options - surface mounted or concealed drill-in.
This strong powerful touch latch has been specially developed for use with sprung style concealed kitchen hinges (Blum style hinges).
The door is automatically opened by simply applying pressure to the door itself, thus activating the release spring in the fitting.
Light finger pressure on the door is sufficient to close it again. No receiver plate is needed as the sprung hinges fitted to the cabinet will keep the door held closed.
This spring catch can be use on overlay or inset doors.
Concealed fixings, this item is sold with a mounting plate that is screwed to the sides or top / bottom of the cabinet door frame. The catch then clips onto the mounting plate hiding the fixing screws.
Supplied as two part item 1 x touch latch and 1 x surface mounted housing.
PLEASE NOTE - This touch latch is only suitable for use with sprung blum style kitchen hinges.
Ideal for use on kitchen cabinet doors, wardrobes and cupboard doors.

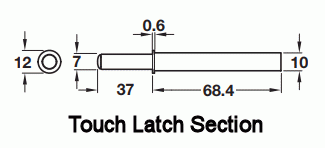

Dimensions
Base Material
Plastic
Finish Details
Grey plastic casing.
Fixings

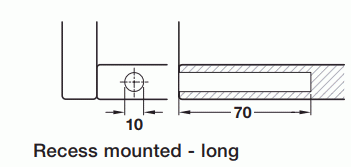

This touch latch can be recessed into the carcass for concealed fixing by drilling a 10mm diameter x 70mm long hole.

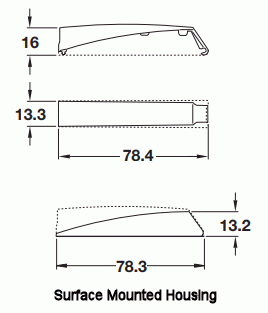

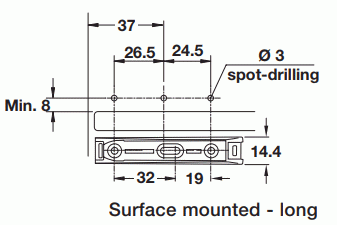

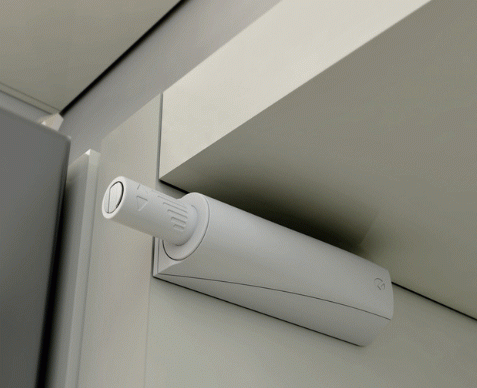

This touch latch can also be surface mounted by using the supplied housing.
Usage

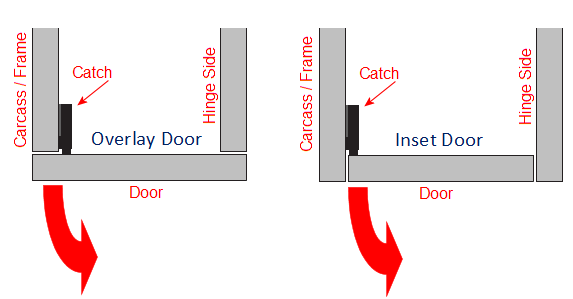

Suitable for use on overlay doors (doors that sit on top of the carcass or frame.)
Suitable for use on inset doors (doors that sit inside that carcass or door frame.)
Please note this touch latch is best used with sprung blum style kitchen hinges. (a sprung blum hinge "snaps" the door closed).
The door must be able to be pushed inwards by a minimum of 1.8mm for the spring to release.
Unit Of Sale
Sold individually - (Each)
Supplied with optional surface mounted housing plate.
