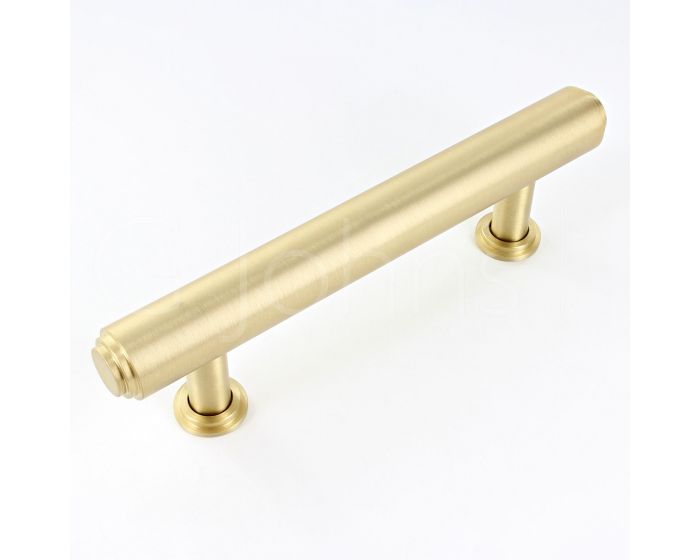

Tubular T Bar Cabinet Pull Handle With Stepped Ends With Optional Base Rose - Satin Brass (Lacquered)

Catalogue Number:
44692
Full Description Related Products
Product Name Price Qty
44692.1 - Tubular T Bar Cabinet Pull Handle With Stepped Ends - 145mm Length (96mm Centres) - With Optional Base Rose - Satin Brass (Lacquered) - Each
£48.46 £40.38

Per Each
44692.2 - Tubular T Bar Cabinet Pull Handle With Stepped Ends - 177mm Length (128mm Centres) - With Optional Base Rose - Satin Brass (Lacquered) - Each
£50.18 £41.82

Per Each
44692.3 - Tubular T Bar Cabinet Pull Handle With Stepped Ends - 273mm Length (224mm Centres) - With Optional Base Rose - Satin Brass (Lacquered) - Each
£77.33 £64.44

Per Each
Enquire Now
  • Tubular shape T-bar cabinet pull handle with stepped ends
  • Supplied with optional base roses
  • Available in three lengths, 145mm, 177mm, 273mm
  • Supplied with M4 fixing bolts
  • Contemporary design ideal for use on modern units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers

Size Details

Item codeOverall Length(B) Fixing Centres Width(A)Projection(C)
44692.1 145mm 96mm 18mm 42mm
44692.2 177mm 128mm 18mm 42mm
44692.3 273mm 224mm 18mm 42mm

Tubular-D-Shape-Cabinet-Pull-Handle-With-Stepped-Ends-Dimensions-Diagram

Base Material

  • Made from solid brass

Finish Details

  • Satin brass

Fixings

  • This handle is fitted via M4 bolts from the rear of the door / drawer - see below diagram

Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer

  • Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors
  • Supplied with M4 (diameter) x 25mm (long) bolts - Suitable for use on 18mm thick doors
  • For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately

Usage

  • Suitable for internal use.

Unit Of Sale

  • This cabinet handle is sold individually - (Each)
More Information
Item 44692
Item Code 44692
Finish Satin Brass (Lacquered)
Dimensions Available In Three Lengths
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
