Narrow Pattern Locking Fitch Fastener - For Double Glazed Sliding Sash Windows - Polished Brass

Catalogue Number:
15251
Full Description
Product Name Price Qty
15251.1 - Narrow Locking Fitch Fastener - For Double Glazed Sash Windows - Polished Brass - Each
£4.20 £3.50

Per Each

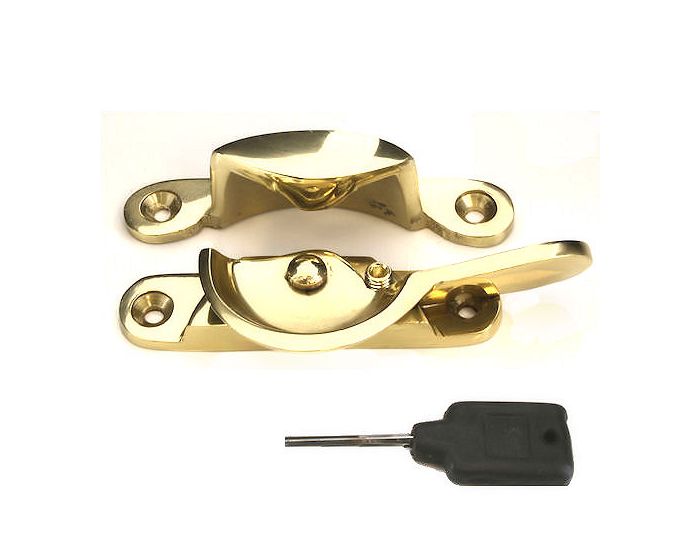

  • Narrow pattern locking fitch fastener for sliding sash windows
  • Narrow back plate pattern is designed for use on modern double glazed sliding sash windows with very narrow meeting rails
  • 13mm deep back plate
  • Lockable via alun key and grub screw - when the grub screw is protruding from the back plate, the arm can not be twisted open
  • When the fastener is in the closed position (when the arm is engaged in the receiver plate by twisting it through 180 degrees) the sliding sash window can not be opened

Finish

  • Polished brass

Dimensions

Diagram showing dimensions of the JV89L narrow pattern fitch fastener for double glazed sliding sash windows

15251.1
Dimension On Diagram
Receiver Plate Depth
12mm
A
Receiver Plate Length
69mm
B
Back Plate Depth
15mm
C
Back Plate Length
64mm
D

Important Info Before You Buy

  • Suitable for wooden sliding sash windows
  • This style of fastener is suitable for sash windows with flush fitting meeting rails (Where the two sashes meet in the middle they must be level or very close)
  • Comes supplied with fixing screws, alun key and grub screw
  • Sold individually
More Information
Item 15251
Item Code 15251
Finish Polished Brass
Sold Per Each
Availability Stock Item
Download PDF Data Sheet
