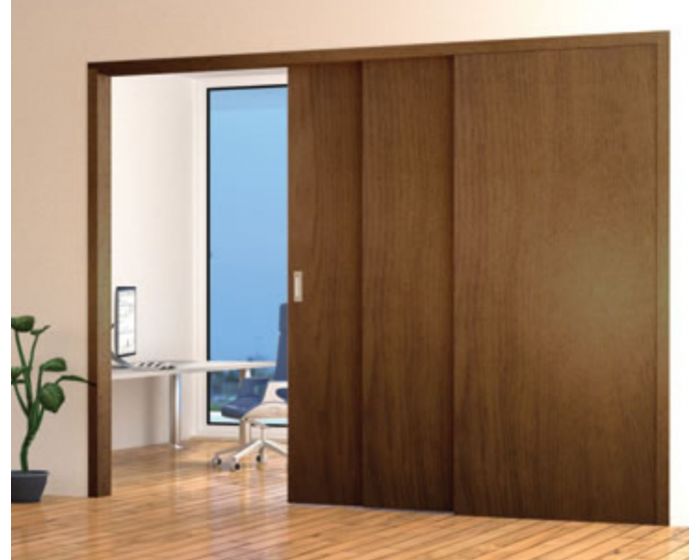

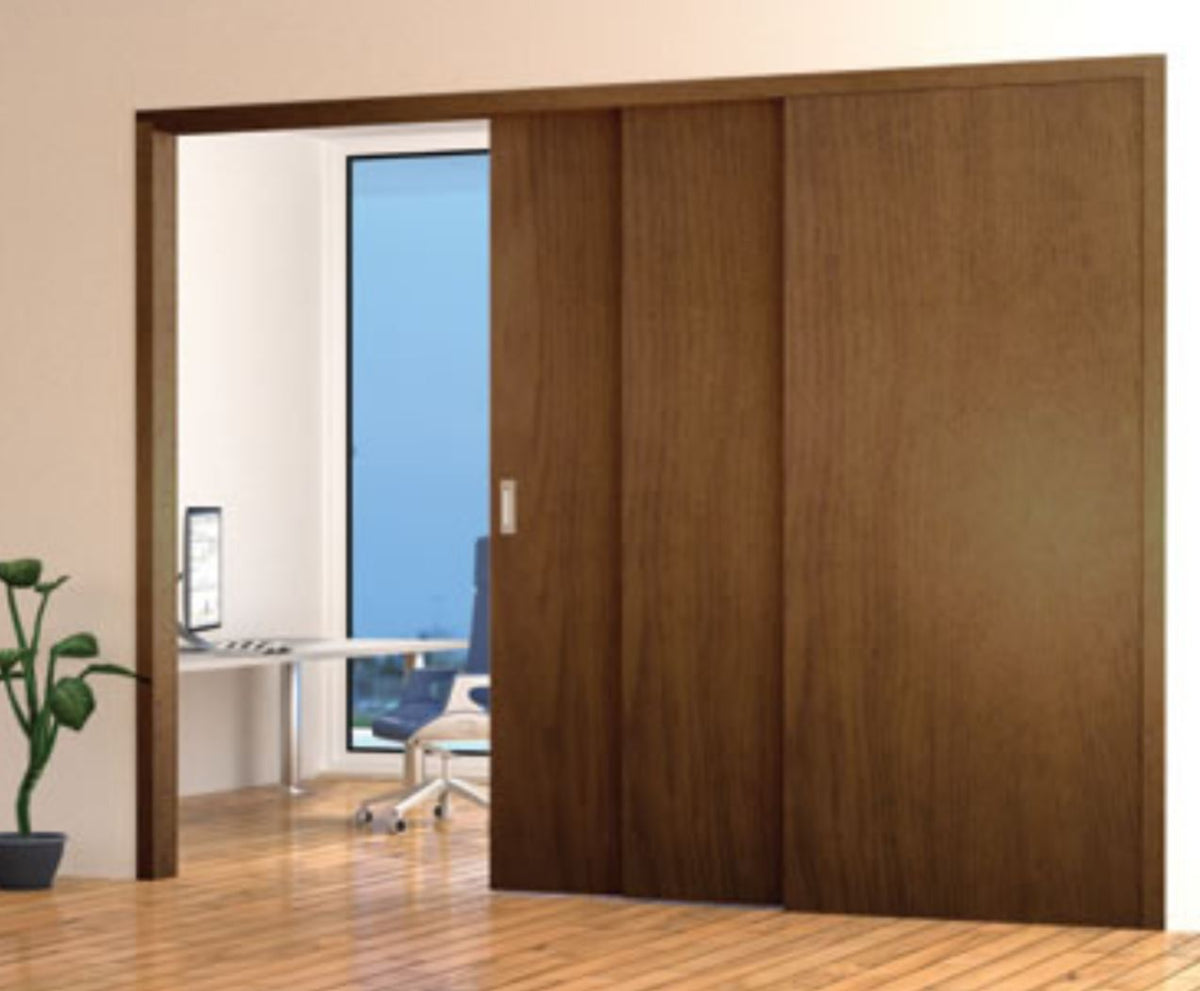

3 Door Telescopic Sliding Door Track Kit - Max Door Width Per Panel 1200mm - To Cover A Maximum Opening Of 3460mm - Max Panel Weight 80kg

Catalogue Number:
43514
Full Description Related Products
Product Name Price Qty
43514.1 - 3 Door Telescopic Sliding Door Track Kit - Max Door Width Per Panel 1200mm - To Cover A Maximum Opening Of 3460mm - Max Panel Weight 80kg (Per Panel)
£1,110.80 £925.67

Per Kit
Enquire Now
  • Non stock product - sent direct from factory - please allow 3-4 weeks for delivery



  • 3 Door telescopic sliding door track kit to cover a maximum opening width of 3460mm
  • Ideal system for where sliding doors are required to cover a large opening width.
  • Doors stack to one side of the opening for extra space saving. Ideal for situations where there is not enough wall space for one large door.
  • Allows 3 x doors to travel simultaneously

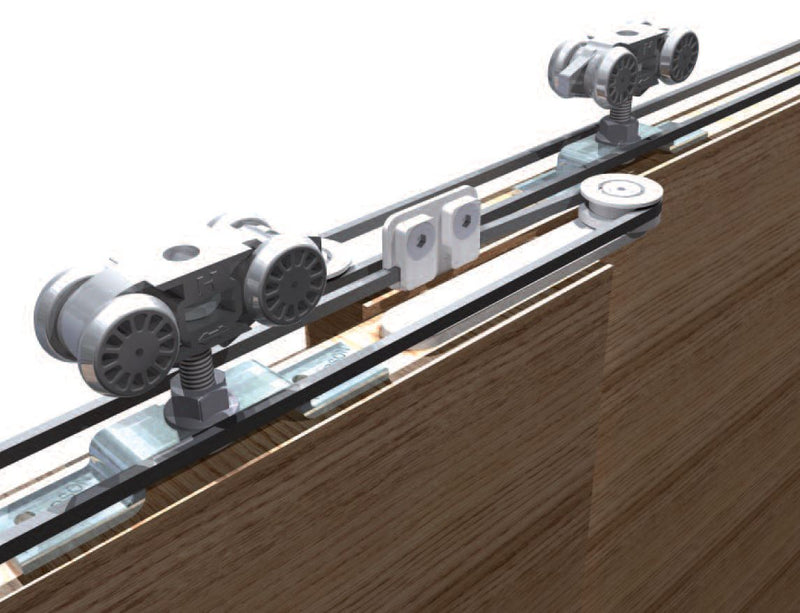

  • The three door leaves are linked together via a toothed belt and pulley system.
  • No guide channel required, allowing for a seamless walkway between rooms.
  • Ideal for sliding partitions as doors can be neatly stacked to one side of the opening.
  • Includes all the components needed to install a long lasting, smooth running soffit (ceiling) mounted 3 door telescopic sliding door system.
  • Supplied with anodised aluminium pre-drilled track for a durable, long lasting finish and easy installation.
  • Suitable for use with timber doors.
  • Doors not included.



Door Specifications

  • Maximum door leaf weight 80kg (per door panel),
  • Minimum door width 500mm (per door panel).
  • Maximum door width 1200mm (per door panel).
  • Door thickness 32mm - 47mm.



Track Lengths & Dimensions

  • 1 x 2500mm length track for the 1st door panel (follower door).
  • 1 x 4000mm length track for the 2nd door panel (follower door).
  • 1 x 6000mm length track for the 3rd door panel (lead door).
  • Please note the aluminium tracks can be cut to length on site using a standard hacksaw.

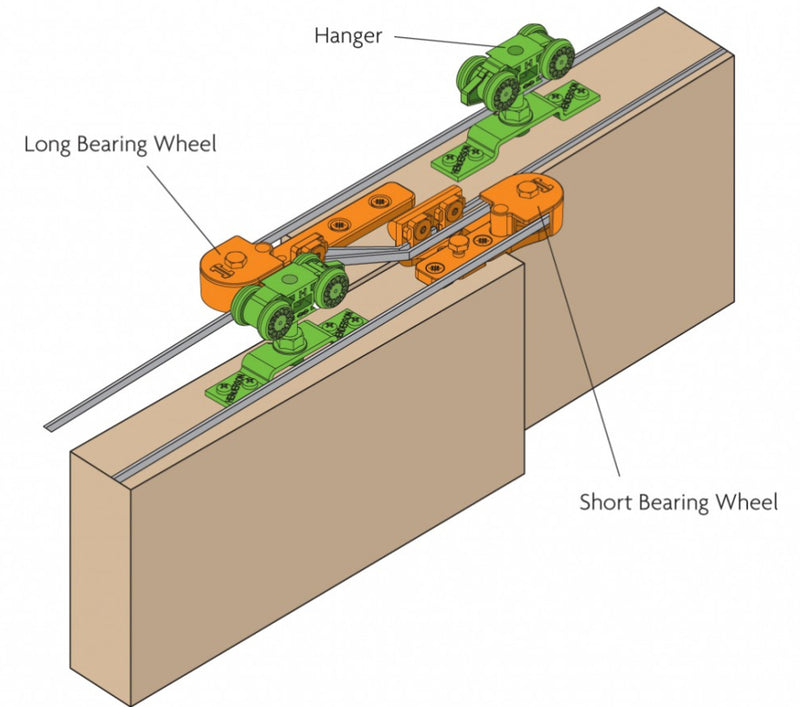

Diagram Showing Details Of The 3 Door Sliding Telescopic Door Track Kit



Ceiling Mounted

  • Ceiling mounted tracks.
  • Please note a return wall section is required to install the belt fixing unit.



Diagram Showing The Dimensions Of The 3 Door Sliding Telescopic Door Kit



Alternative Kits

  • 2 door telescopic kit to cover a maximum opening width of 2330mm - see related product 43513.1.
  • 4 door double telescopic kit (2 x pairs of doors sliding in each direction) to cover a maximum opening width of 4660mm - see related product 43515.1.


Floor Guides

  • No floor channel required, allowing for a seamless walkway between rooms. Meaning that there are no dust traps and therefore easier to install across a variety of applications
  • "T" shape floor guide is used for the 1st door panel which is fixed to the floor next to the door frame.
Diagram showing the universal floor guide for sliding door gear systems
  • "L" shape door guide is installed at the bottom (near the leading edge) of the 1st door panel and guides the 2nd door panel.

Bottom Of Door Guide For Telescopic Sliding Door Track Kits



Items Included Within The 2 Door Telescopic Sliding Door Kit

  • 6 x Hangers & apron plates
  • 2 x Short bearing wheel assembly
  • 2 x Door mounted belt fixing bracket
  • 1 x Length of toothed belt
  • 2 x Following door guide
  • 1 x Fixed base floor guide
  • 2 x Long bearing wheel assembly
  • 1 x Wall mounted belt fixing
  • 1 x 2500mm length anodised aluminium track
  • 1 x 4000mm length anodised aluminium track
  • 1 x 6000mm length anodised aluminium track



Product Video

More Information
Item 43514
Item Code 43514
Finish SAA - Silver Anodised Aluminium
Dimensions Max Door Width Per Panel 1200mm - To Cover A Maximum Opening Of 3460mm
Sold Per Kit
Availability Non stock product - sent direct from factory - please allow 3-4 weeks for delivery

Non stock product - sent direct from factory - please allow 3-4 weeks for delivery

Download PDF Data Sheet
