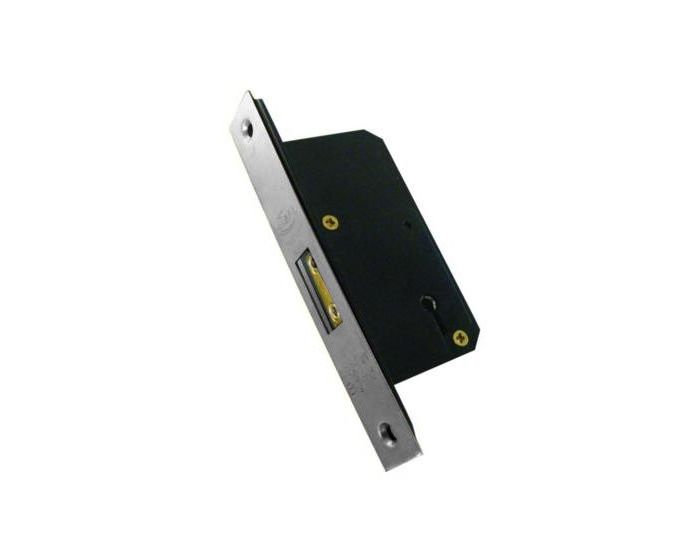

5 Lever Narrow Case Dead Lock - 50mm Case Depth (35mm Backset) - Satin Stainless Steel

Catalogue Number:
40696
Full Description
Product Name Price Qty
40696.1 - 5 Lever Narrow Case Dead Lock - Satin Stainless Steel - 50mm Case Depth (35mm Backset) - Each
£96.85 £80.71

Per Each
Enquire Now
  • Please note This lock is not a British Standard (BS 3621) rated lock.


  • ASEC narrow style dead lock.
  • Medium level security 5 lever lock.
  • Ideal for use on traditional French doors and windows with very narrow wooden stiles where larger sash locks are too deep to fit.
  • For use on doors that require door handles and need to be locked via a standard "chubb" style key.
  • Comes supplied with a satin stainless steel (brushed finish) forend and frame mounted strike plate.

Operation

  • Deadbolt is locked and un-locked via the supplied cut keys.
  • Key differed - if ordering more than one lock each lock will come with different keys.

Features

  • Solid brass deadbolt with anti-saw rollers.



Security Level

  • Medium security range.
  • 5 lever - not BS rated (this lock does not meet the British Standard BS 3621).

Finish

  • Satin stainless steel.



Alternative Finishes Available

  • Polished brass.

Dimensions

  • Case depth - 50mm
  • Backet - 35mm
  • Case height - 108mm
  • Forend length - 165mm
  • Forend width - 25mm

Item Code Lock Case Depth (A) Backset To Keyhole (B)
AS11355 50mm 35mm

Standards This Product Conforms To

  • All though this lock is a 5 lever lock, it is not kite marked nor BS rated. If you need to fit this size lock to any external doors in your property, you should disclose this information to your insurance company as this lock is not "insurance rated".

Rebate Kit For Double Rebated Doors

  • AS1076 - 13mm satin chrome rebate kit for use with the ASEC 50mm narrow pattern 5 lever dead lock.


Unit Of Sale

  • Each - (1 x lock case supplied with forend, strike plate and 3 keys).
More Information
Item 40696
Item Code 40696
Finish Satin Stainless Steel
Dimensions 50mm Case Depth - (35mm Backset)
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
