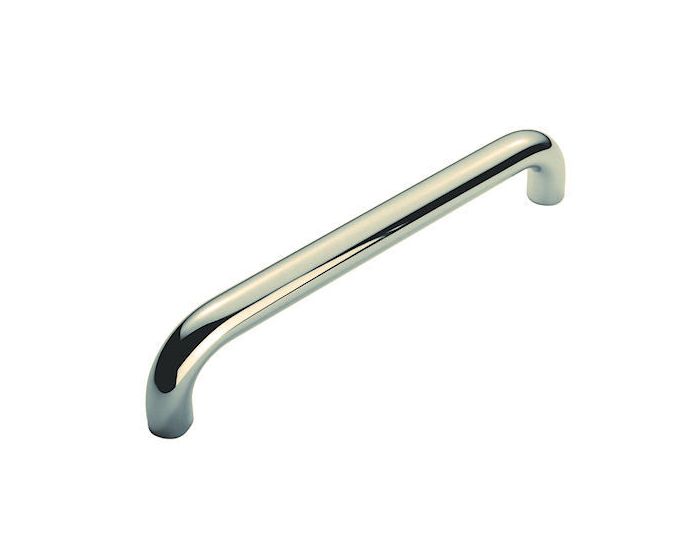

D Shape Bolt Through Pull Handles - Grade 316 Satin Stainless Steel - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:

20538

Product Name Price Qty

20538.1 - D Shape Bolt Through Pull Handle - Tested For Use With FD30 / FD60 Fire Doors - 150mm Centres x 19mm Diameter - Grade 316 Satin Stainless Steel - Each

Trade Price £9.50 £7.92 Regular Price £10.56 £8.80

Per Each

20538.2 - D Shape Bolt Through Pull Handle - Tested For Use With FD30 / FD60 Fire Doors - 225mm Centres x 19mm Diameter - Grade 316 Satin Stainless Steel - Each

Trade Price £10.69 £8.91 Regular Price £11.88 £9.90

Per Each

20538.3 - D Shape Bolt Through Pull Handle - Tested For Use With FD30 / FD60 Fire Doors - 300mm Centres x 19mm Diameter - Grade 316 Satin Stainless Steel - Each

Trade Price £11.88 £9.90 Regular Price £13.20 £11.00

Per Each

20538.4 - D Shape Bolt Through Pull Handle - Tested For Use With FD30 / FD60 Fire Doors - 450mm Centres x 19mm Diameter - Grade 316 Satin Stainless Steel - Each

Trade Price £13.07 £10.89 Regular Price £14.52 £12.10

Per Each

20538.7 - D Shape Bolt Through Pull Handle - Tested For Use With FD30 / FD60 Fire Doors - 300mm Centres x 25mm Diameter - Grade 316 Satin Stainless Steel - Each

Trade Price £18.36 £15.30 Regular Price £20.40 £17.00

Per Each

20538.8 - D Shape Bolt Through Pull Handle - Tested For Use With FD30 / FD60 Fire Doors - 1800mm Centres x 30mm Diameter - Grade 316 Satin Stainless Steel - Each

Trade Price £100.22 £83.52 Regular Price £111.36 £92.80

Per Each

20538.9 - D Shape Bolt Through Pull Handle - Tested For Use With FD30 / FD60 Fire Doors - 450mm Centres x 30mm Diameter - Grade 316 Satin Stainless Steel - Each

Trade Price £33.70 £28.08 Regular Price £37.44 £31.20

Per Each

20538.1 - D Shape Bolt Through Pull Handle - Tested For Use With FD30 / FD60 Fire Doors - 600mm Centres x 30mm Diameter - Grade 316 Satin Stainless Steel - Each

Trade Price £39.85 £33.21 Regular Price £44.28 £36.90

Per Each

Enquire Now

Description

High architectural quality D shape stainless steel pull handle

High grade 316 stainless steel ideal for internal doors and external entrance doors

Suitable for use on half hour FD30 and one hour FD60 fire doors tested and passed to BS EN 1634-1 2000

Bolt through the door design see below diagram

Diagram showinh how a D shape bolt through pull handle fits

Above diagram shows how a bolt through pull handle is fitted to a wooden door

Alternative Fixing Options:

Bolt through fixing with cover caps (where no finger plate is wanted on the reverse side) - see related product - 43478.

Back to back pair (kit for fitting pull handles to both sides of the door) - see related product - 43480.

Face fixing with roses (kit for situations where the handle cannot be fixed from the rear) - see related product - 43484.

Finish

Satin stainless steel

Alternative Finishes Available

Polished stainless steel

Dimensions

Item	Bolt centers (A)	Diameter (B)	Projection (C)
20538.1	150mm	19mm	64mm
20538.2	225mm	19mm	64mm
20538.3	300mm	19mm	64mm
20538.4	450mm	19mm	64mm

20538.6	225mm	25mm	70mm
20538.7	300mm	25mm	70mm

20538.9	450mm	30mm	85mm
20538.10	600mm	30mm	85mm
20538.8	1800mm	30mm	85mm

Important Info Before You Buy

Suitable for wooden doors

Pull handles are best suited for areas of high or heavy use such as offices, schools and public buildings

This pull handle is sold individually

Download

Download PDF Data Sheet

Specification

More Information
Item	20538
Item Code	20538
Finish	Satin Stainless Steel
Fire Rated	FD30 / FD60 - Fire Rated
Sold Per	Each
Availability	Non stock product - please allow 3-7 days for delivery

Delivery

Non stock product - please allow 3-7 days for delivery
