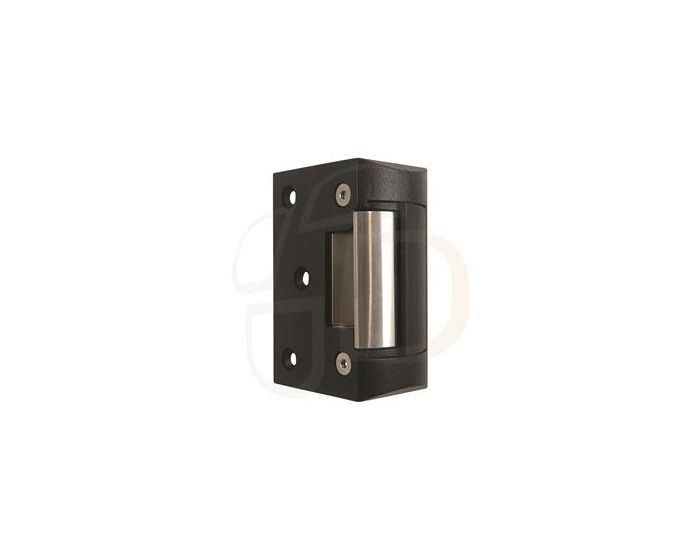

ES150 is a surface mounted electric strike suitable for use with rim or surface type dead latches. This strike is easy to install and can be simply controlled by a keypad, keyswitch or integrated into any access control system.
ES150 offers high levels of security and features usually provided by more expensive electric locking solutions. The electric strike can be easily installed on steel and wooden door frames. A weather resistant version is also available for exterior applications.
Key Features
- Fail safe/fail secure changeable on site
- Easy installation suitable for steel and wooden door frames
- Stainless steel striker for extra strength and durability
- Available in 12Vdc
- Solenoid rated for continuous use
- IP56 weather resistant
- Australian designed
- TRICARE® 5 Year Warranty
Applications
- Surface or rim mounted applications
- Suitable for use with all access control systems
- Exposed areas
Standards and Compliance
- CE Approved
- C-Tick Certified
- IP56 Rated
Size
- Height 176mm
- Width28.5mm
- Jaw height38mm
- Jaw depth14mm
- Jaw width17mm
Operation
- Fail locked/secure applying current to the strike causes the jaw to pivot back, allowing the latch to clear the strike and the door to be opened from the outside
- Fail unlocked/safe the jaw remains locked while a current is applied to it. When the current is broken, the jaw pivots back, allowing the latch to clear the strike and the door to be opened from the outside
- Current can be controlled by keypad, keyswitch or any access control system
Notes
- Power failure modeReversible Fail Safe/Secure
- Suitable for Fire Rated Doors
- Low power consumption
- Template for faster installation
- Rated solenoid can be continuously powered
- High security - tamper resistant with 3 hardened locking pins
Voltage
12Vdc
Current
243mA @ 12Vdc
Solenoid
Solenoids rated for continuous use.
Monitoring
None
Holding Force
680kg Static Strength Rating
Endurance
Cycle tested to 1,000,000 operations
Environment
Operational temperature range - 20°C to +60°C
Weather resistant (IP56)
Body
Solid Stainless Steel Construction
Keeper
Stainless Steel
Specification Statement
The electric strike must be suitable for surface mount applications for use with rim or surface mount door locks. Where Power To Lock and Power To Open functions may be required in the same building, an individual strike is interchangeable from either "Power to Lock" or "Power to Open" on site.
The electric strike should not consume current greater than 243mA @ 12Vdc. Certifications must include CE and C-Tick.
The strike should be tested to 1 million operations and have a minimum holding force not less than 680kg.
| Item | 40738 |
|---|---|
| Item Code | 40738 |
| Sold Per | Each |
| Availability | Non stock product - please allow 3-7 days for delivery |
Non stock product - please allow 3-7 days for delivery
-
