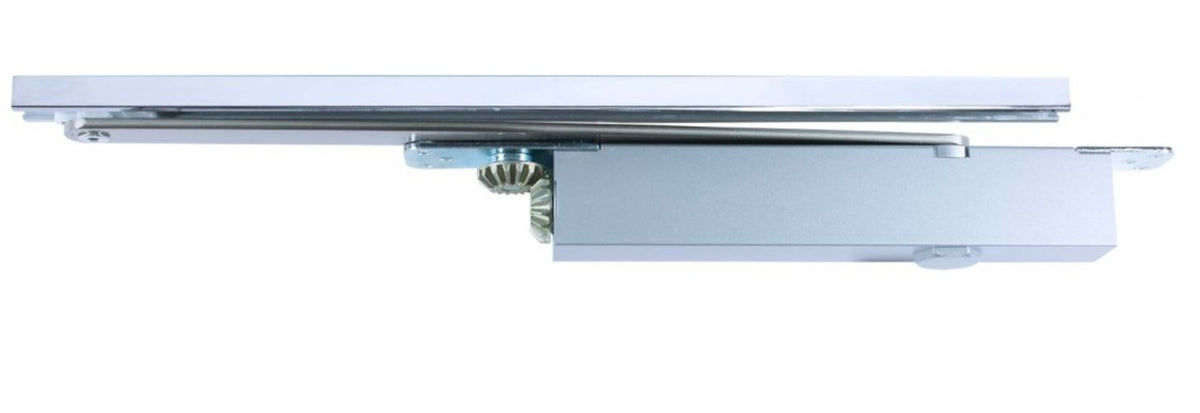

CAM Action Concealed Overhead Door Closer - Power Size 2-4, Certifire Approved

CAM Action Concealed Overhead Door Closer Features

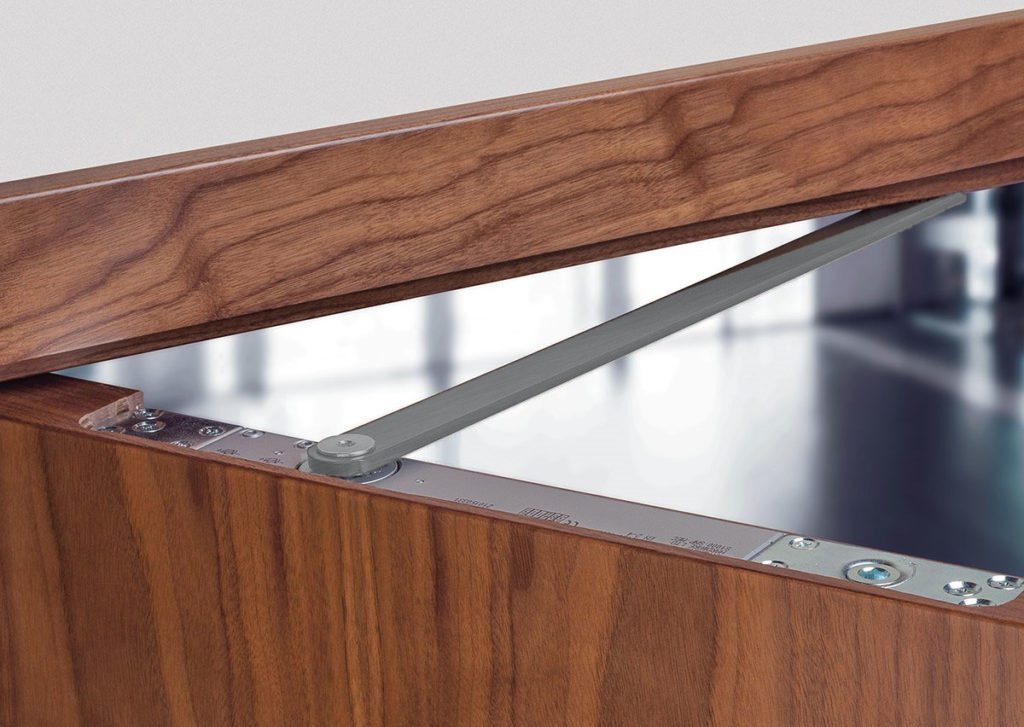

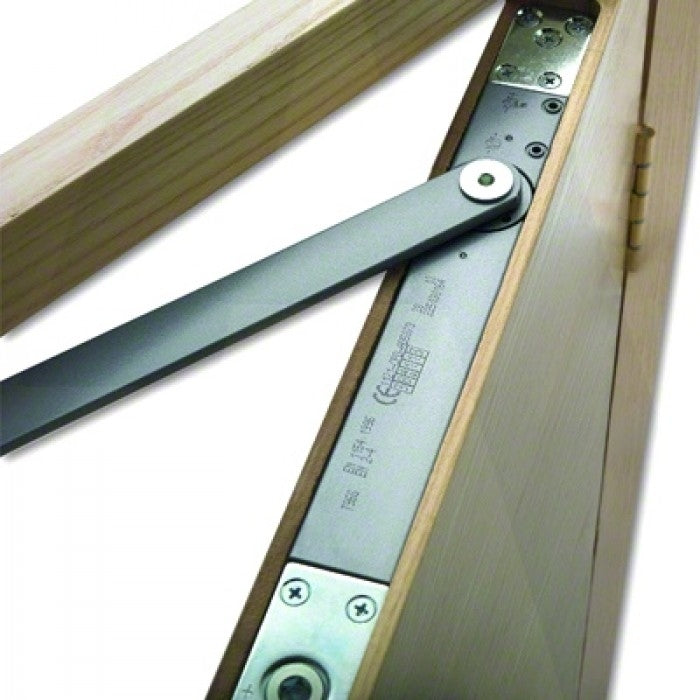

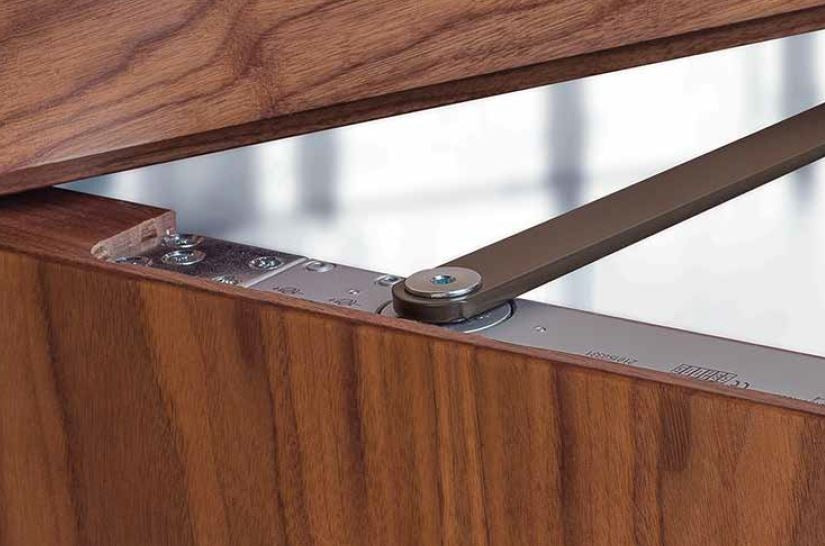

• This compact overhead door closer unit allows the closer body and slide channel to be installed discreetly out of sight, reducing the risk of abuse and providing a more aesthetically pleasing solution for the specifier.

• Our concealed door closer incorporates a highly efficient cam-action technology that guarantees a reliable closing force for fire door applications and also ensures ease of opening, particularly important for children, the disabled, and the elderly, who encounter minimal resistance when opening the door.

• The product is ideal in meeting the demands and needs of the healthcare, education and commercial sectors. The result is a product that meets the requirements for fire and smoke control doors and also provides easy operation for accessibility.

• The components used are highly engineered to ensure the product performs efficiently. High-quality hydraulic fluid that ensures consistent performance over temperatures from -15° to +40 °. The door closer mechanism is highly reliable and will provide product durability and long-life performance.

• Suitable for doors of 44mm thickness and above, this concealed closer has been performance tested and meets the requirements of BS EN1154, fire tested to BS EN1634 Part 1 on timber doors to achieve 30 and 60 minutes fire rating when installed with the approved intumescent gasket set, sold separately (product 41663)

• This product is CE Marked / UKCA Marked and Certifire approved.

• The concealed design is ideal for architectural projects that require an invisible door closer, such as high-end residential apartments and offices.

Power Adjustment Via Spring:

• Power adjustment by means of an allen key (adjustment screws are located on the top of the body). It can be adjusted to suit door maximum door widths of 850mm to 1100mm (EN power size 2-4).

Please view the "Downloads" tab to downloads available certificates.

• Fire Tested - to BS EN 1634 part 1 - tested for use on timber doors up to 60 minutes (suitable for FD30 and FD60 doors) when used with intumescent pack 41663

• Certifire Approved - Independent third-party testing by Warrington Certification Ltd - certificate number - CF5293

• Tested To EN 1154 -The European standard for controlled door closing devices.

• CE Marked / UKCA Marked - 1121-CPD-AD5192 - Fully CE Marked / UKCA Marked against EN 1154 in all three power sizes
• DoP - Declaration of performance available DOP-SHLC-DC61
• EN1154 Classification Code: – 384 / 2113

BS8300 & Approved Doc M (ADM) Compliance:

• The variable power, high efficiency CAM action closer offers a lesser resistance to opening by the frail, disabled or encumbered, whilst providing power size 3 (producing a minimum closing force of 18NM) for fire doors as laid down in BS  EN 1154.

• This high efficiency helps fire door sets to comply with an opening force of 30N or less as specified in Approved Document M.

• Building Regulations Approved Document M - ADM ("Access & Facilities for Disabled People") is the code of practice for the Disability Discrimination Act (DDA) which came into force in the UK on 1st October 2004.
• This concealed door closer meets the above requirements when fitted to a door measuring a minimum of 777mm in power size 3

Intumescent Pack For Fire Doors:

• When installed on a fire door the intumescent pack 41663 must be used in order to comply with the fire test evidence.
