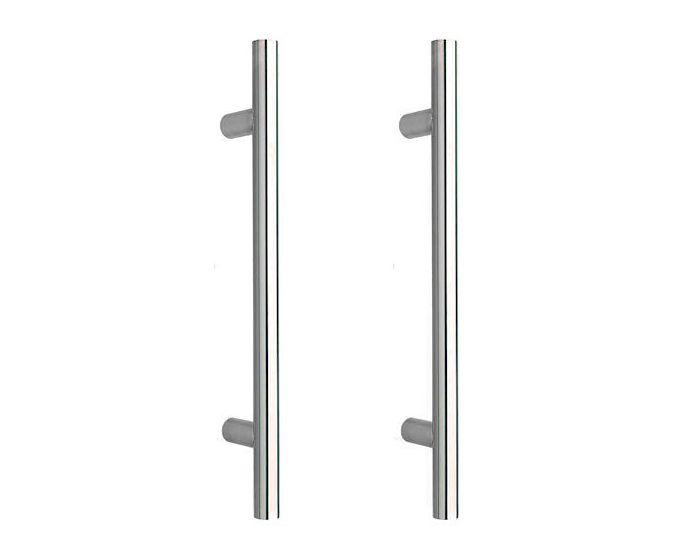

T-Bar Shape Guardsman Style Pull Handles - Back To Back Fixing Pair - Polished Stainless Steel

Catalogue Number:
31221
Full Description
Product Name Price Qty
31221.1 - T-Bar Pull Handles - Back To Back - Polished Stainless Steel - 325mm Length (225mm Centres) x 19mm Diameter
£22.49 £18.74

Per Pair
31221.2 - T-Bar Pull Handles - Back To Back - Polished Stainless Steel - 400mm Length (300mm Centres) x 19mm Diameter
£27.62 £23.02

Per Pair
31221.3 - T-Bar Pull Handles - Back To Back - Polished Stainless Steel - 1000mm Length (900mm Centres) x 19mm Diameter
£73.20 £61.00

Per Pair
31221.4 - T-Bar Pull Handles - Back To Back - Polished Stainless Steel - 400mm Length (300mm Centres) x 25mm Diameter
£43.79 £36.49

Per Pair
31221.5 - T-Bar Pull Handles - Back To Back - Polished Stainless Steel - 600mm Length (450mm Centres) x 25mm Diameter
£65.29 £54.41

Per Pair
31221.6 - T-Bar Pull Handles - Back To Back - Polished Stainless Steel - 750mm Length (650mm Centres) x 25mm Diameter
£80.00 £66.67

Per Pair
31221.7 - T-Bar Pull Handles - Back To Back - Polished Stainless Steel - 1000mm Length (900mm Centres) x 25mm Diameter
£90.02 £75.02

Per Pair
Enquire Now
  • Guardsman style T-Bar shape stainless steel pull handle
  • Shiny polished stainless steel ideal for internal doors and external entrance doors
  • Back to back fixing pair allows for handles to be fitted to both sides of the door
  • Suitable for use on timber, metal or glass doors.
  • To suit doors between 6mm - 44mm thick.

Diagram showing howback to back fixing pull handle fit

Above diagram shows how a bolt through pull handle is fitted to a wooden door

Finish

  • Polished stainless steel



Alternative Finishes Available

  • Satin stainless steel

Dimensions

Diagram showing dimensions a D shape pull handle
ItemBolt centers (A)Diameter (B)Projection (C)Overall Length (D)Post Diameter (E)
31221.1 225mm 19mm 63mm 325mm 16mm
31221.2 300mm 19mm 63mm 400mm 16mm
31221.3 900mm 19mm 63mm 1000mm 16mm

31221.4 300mm 25mm 70mm 400mm 22mm
31221.5 450mm 25mm 70mm 600mm 22mm
31221.6 650mm 25mm 70mm 750mm 22mm
31221.7 900mm 25mm 70mm 1000mm 22mm

Important Info Before You Buy

  • Pull handles are best suited for areas of high or heavy use such as offices, schools and public buildings
  • Sold as a back to back pair (2 handles).
More Information
Item 31221
Item Code 31221
Finish Polished Stainless Steel
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Pair
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
