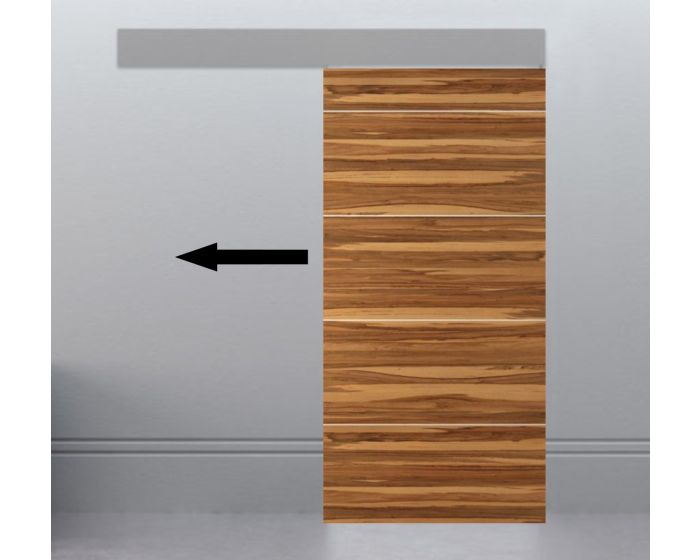

Automatic Electronic Sliding Door Track System - For Single Internal Wooden Doors Up To 1600mm Wide - 80kg Max Door Weight

Catalogue Number:
43520
Full Description
Product Name Price Qty
43520.1 - Automated Electronic Sliding Door Track System - For Single Wooden Doors Between 675mm - 1100mm Wide - 2000mm Track Length - 80kg Max Door Weight - Supplied With 2x Control Panels
£1,992.04 £1,660.03

Per Kit
43520.2 - Automated Electronic Sliding Door Track System - For Single Wooden Doors Between 675mm - 1600mm Wide - 3000mm Track Length - 80kg Max Door Weight - Supplied With 2x Control Panels
£2,071.78 £1,726.48

Per Kit
Enquire Now
  • Automated electronic sliding door gear system for use on internal timber / wooden doors up to 80kg in weight.
  • The sliding door can opened by the push of a wall mounted button (supplied as standard), remote control or by activation of a movement sensor – offering the utmost in sophistication and convenience
  • Designed for use in residential properties including bathrooms and en-suites.
  • Exceptionally smooth and reliable automatic system.
  • Includes push and go, configurable closing speeds and an auto closing delay timer.
  • Works as regular sliding doors in the event of no power.
  • Obstacle detection and safe low voltage operation.
  • Supplied with two wall mounted control panels.
  • Can be soffit (ceiling) fixed or face (wall) fixed as standard.
  • Each set includes all the main components needed to install a long lasting, smooth running electronic automated sliding door track.
  • Suitable for internal wooden doors only.
  • Doors not included.
  • Please note this kit should not be used to operate doors that are subject to building regulations such as fire doors, smoke control doors, escape doors or doors on escape routes. Suitable for domestic use only.

Alternative Kits Available:

  • Bi-parting double door kit for wooden doors - see related product - 43521
  • Single door kit for glass doors - see related product - 43522
  • Bi-parting double door kit for glass doorssee related product - 43523



Standard Operation Options

  • Push and go - the sliding door kit can be configured so that the door only needs to be pulled / pushed open a small amount before the automation takes over to open the door / close the door. This option is included as standard.
  • Adjustable closing speeds - the closing / opening speeds of the door can be adjusted. This option is included as standard.
  • Auto closing delay timer - a timer can be set so that the door automatically closes after being opened. This option is included as standard.
  • Wall mounted button - a simple push of a button will automatically open / close the sliding door. 2 x Wall mounted buttons are included as standard



Alternative Operation Options

  • Remote control - a wire-free option to remotely open and close the sliding door - see related product - 43524.1
  • Motion sensor - a radar sensor that detects motion, allows the sliding door to automatically open when a user walks up to it - see related product - 43525.1



Drive Unit Specification

  • Operation Voltage: 24V safety – low voltage via external power unit.
  • Maximum Operating Speed: 26 cm/s variable.
  • Running Performance: Soft start and stop.
  • Safety Function: Includes obstacle detection in both directions.



Single Sliding Door Kit

Diagram Showing A Single Sliding Door



Dimensions And Track Lengths Available



Item Code Maximum Width Door Minimum Width Door Overall Track Length Maximum Door Weight (W) Door Thickness
43520.1 1100mm* 675mm 2000mm 80kg 30mm - 50mm***
43520.2 1600mm** 675mm 3000mm 80kg 30mm - 50mm***

* Maximum clear opening width 1020mm

** Maximum clear opening width 1520mm

*** For doors over 40mm thick a timber spacer will need to be installed

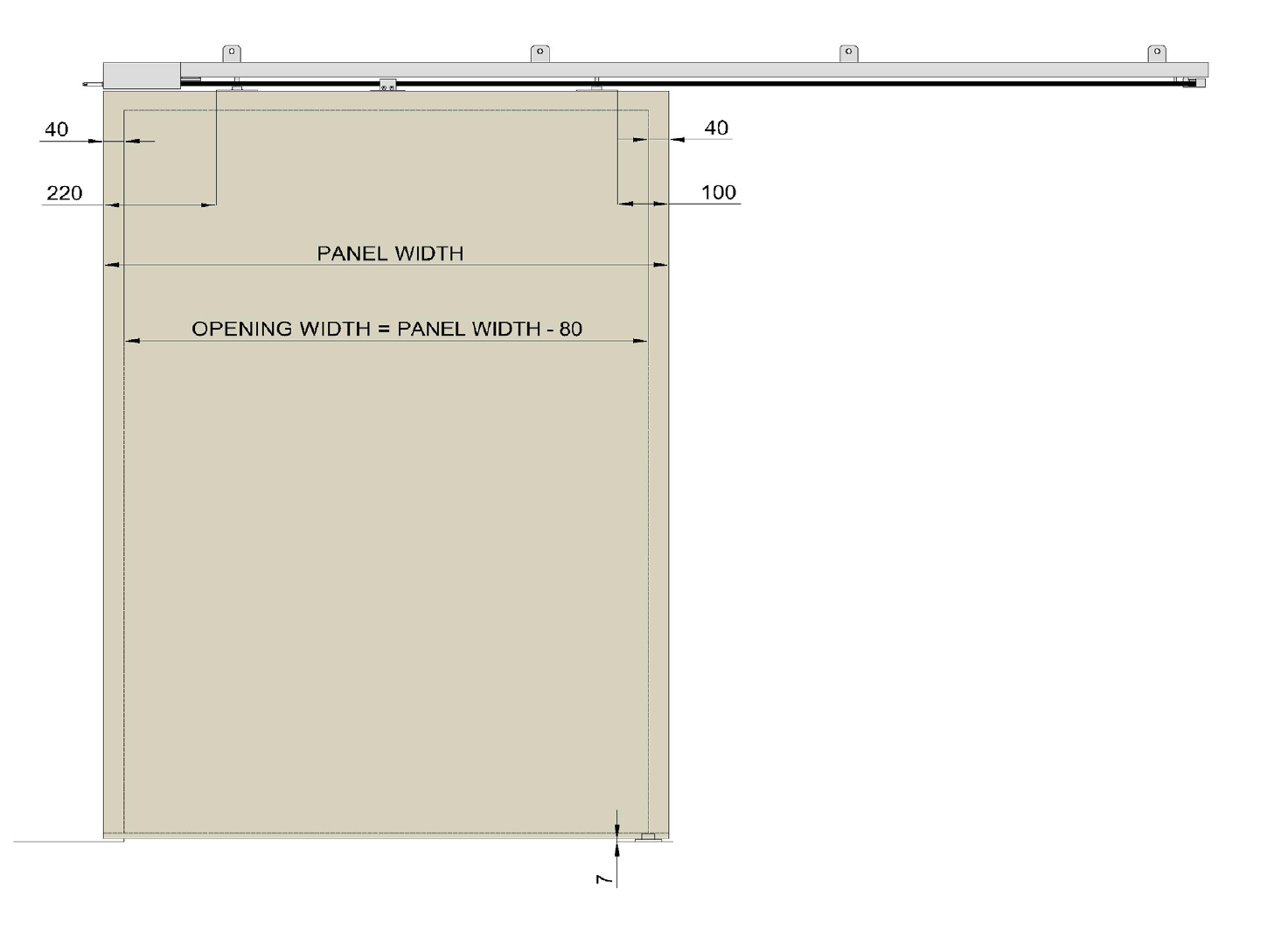

Diagram showing the clear opening width achievable with the automated electronic sliding door gear track for timber doors

Fixing Options

  • Ceiling / soffit mounted - track is pre-drilled to allow for ceiling mounting as standard.
  • Wall / surface mounted - this kit is supplied with brackets that attach to the top of the track to allow for wall mounting.



Track Dimensions Of The Automated Electronic Sliding Door Track Kit For Timber Doors



Floor Guide

  • Supplied with a "T" shape floor guide, fixed to the floor next to the door frame, this helps to guide the door insuring it runs straight.



Diagram showing the universal floor guide for sliding door gear systems



Items Included Within The Automated Electronic Sliding Door Track Kit Fo Single Doors

  • 1 x Aluminium track (2000mm or 3000mm)
  • 2 x Timber door hangers
  • 2 x Track stops
  • 1 Toothed belt
  • 1 x Belt clamp
  • 1 x Tension wheel
  • 4 x Face fix brackets (for the 2000mm track) and 5 x Face fix brackets (for the 3000mm track)
  • 1 x Motor (with 1.5m cable length)
  • 1 x 24V transformer
  • 2 Wall mounted control panel buttons

Important Information Before You Purchase

  • The installation is intended to be carried out by professionally competent personnel only. The mounting must be done by technically educated, trained and qualified personnel. Electrical wiring's have to be completed by a suitably qualified specialist.
  • The installation instructions detail how the system can be safely installed, to comply with the appropriate European Standards and allow the installer to ‘CE mark’ the system once complete.
  • The specifications must be respected, especially maximum weight restriction of the door leaf. Any other use of this product is considered inappropriate use. It is not guaranteed that this product will work in combination with fittings, motors or other electronic devices supplied by other manufacturers.
  • This kit should not be used to operate doors that are subject to building regulations such as fire doors, smoke control doors, escape doors or doors on escape routes.

More Information
Item 43520
Item Code 43520
Finish SAA - Silver Anodised Aluminium
Dimensions 2000mm or 3000mm Track Length - For Doors Between 675mm - 1600mm Wide
Sold Per Kit
Availability Special order product - send direct from factory - please allow 6 weeks for delivery

Special order product - send direct from factory - please allow 6 weeks for delivery
