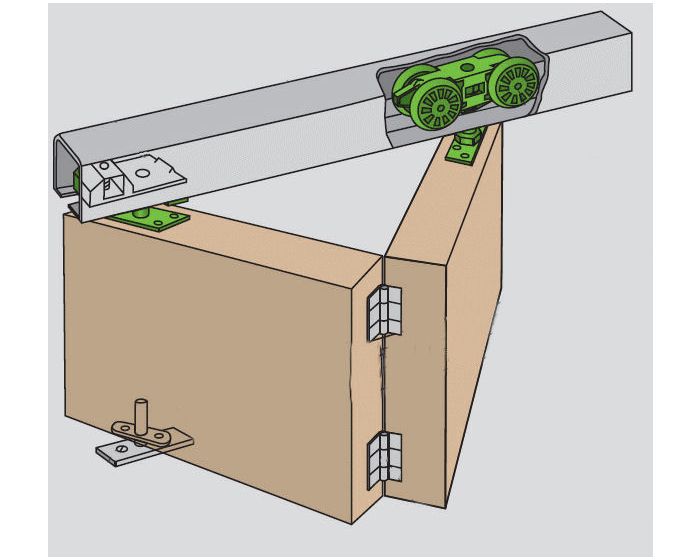

Husky 25 - Folding Door Gear System For Bi-Folding Medium Weight 25kg Internal Doors Up To 44mm Thick

• The Husky 25 Folding door system provides a simple and flexible solution for both light and medium weight residential Bifolding doors and room dividers.

• Designed for use with internal timber doors.

• The Henderson Husky Folding 25 can support doors of up to 25kg in weight and 600mm wide without a floor channel. Its concealed fixings and robust floor gear allow the partitions to be neatly stacked to one side of the opening.

• Silent and easy to fix with attractive aluminium top track.

•  Supplied with zinc plated hinges as standard, alternative finishes can be purchased separately.

Kits Available To Suit Two Leaf Bi-Folding Door Systems

Kits Available To Suit Four Door Bi-Folding Door Systems

• Please note the 4 door kit will only allow for all 4 doors to fold in one direction (as shown in the diagram below).

• If you require 2 doors to fold to the left and 2 doors to fold to the right please contact us as additional items will need to be purchased.

Track Lengths Available

Fixing Options

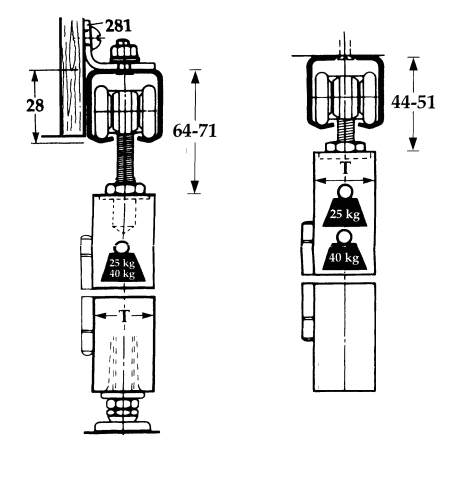

• This folding door kit can be ceiling / soffit mounted or face fixed to a wall.

Items Included Within The Henderson Husky 25 Folding Door Kit

• Top track
• Top and bottom pivots for fixing into the end panel
• 4 Wheeled adjustable nylon hangers
• Zinc plated hinges
• Adjustable bottom pivot assembly
