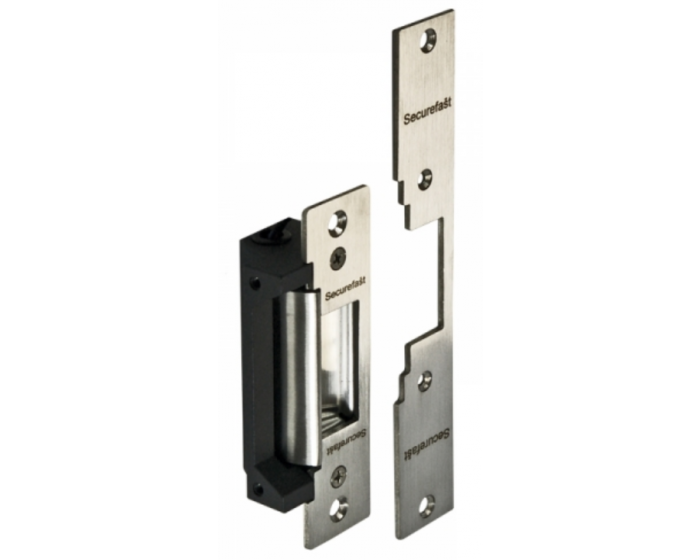

ANSI Pattern Electronic Release - FD30 / FD60 Fire Rated - Stainless Steel / Black

Catalogue Number:
48227
Full Description Related Products
Product Name Price Qty
48227.1 - ANSI Pattern Electronic Release - FD30 / FD60 Fire Rated - Fail Locked/Unlocked - Supplied With Long And Short Face Plates - Stainless Steel / Black
£93.58 £77.98

Per Each
Enquire Now
  • The AL900 series electric releases are an ANSI style door release, complete with stainless steel short or long faceplates for use in metal or timber frame applications.
  • Fire rated* - suitable for use on FD30 and FD60 fire doors * when used with the intumescent kit 48228 (see related products)
  • The electric release is designed to work with most leading brand mortice night latch locks.
  • Fail Locked/Unlocked with long and short face plate.
  • This electronic releases can also be set 12V or 24V by simply reconfiguring the wires in a different order.

Features & Benefits

  • 1000lbs Holding Force
  • Fire rated for use on 30min timber doors opening inward and outward – Report No 419607 by Warrington Fire
  • Fire rated for use on 60 min timber doors (Report with GE Door Manufacturer)
  • Performance tested to EN14846
  • CE Marked / UKCA Marked and EMC tested
  • Easy installation
  • 12/24V AC / DC on site settable
  • AC Fail Secure only selectable
  • DC Fail Safe/Fail Secure selectable
  • Long and short faceplates are included
  • Easy replacement for most leading brand ANSI electric releases
  • Supplied with 250mm of cable
  • 10, 25 & 50mm extension lips available

Finish

  • Satin Stainless Steel
  • Black Dust Box

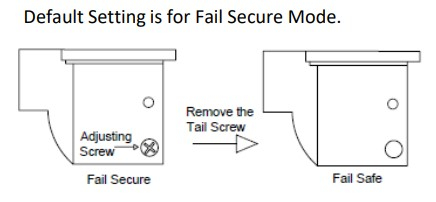

Changing from Fail Secure to Fail Safe

Changing-from-Fail-Secure-to-Fail-Safe-Diagram

  • This electric release is supplied as fail secure operation but can easily be changed to fail safe by the simple removal of a screw.

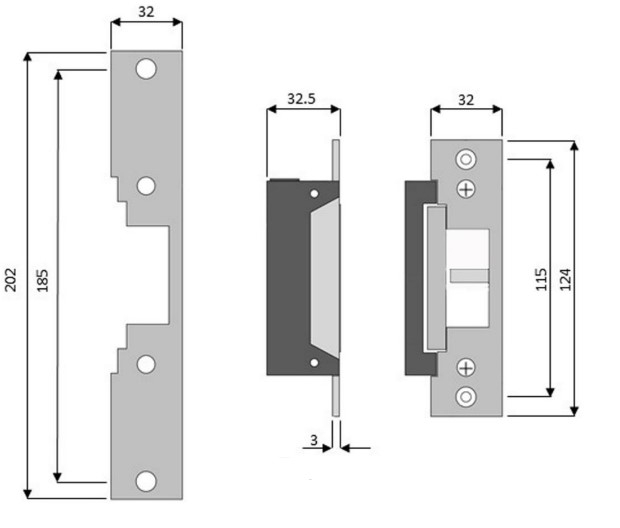

Dimensions

ansi-pattern-electronic-release-fd30-fd60-fire-rated-diagram

  • Height - 202mm
  • Width - 32mm
  • Depth - 33mm

Important Info Before You Buy

  • Fire rated* - suitable for use on FD30 and FD60 fire doors * when used with the intumescent kit 48228 (see related products)
More Information
Item 48227
Item Code 48227
Finish Stainless Steel / Black
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
