Buster & Punch Diamond Cut Knurled Pattern Pull Bar Handle With Back Plate - Available In Three Sizes - Satin Stainless Steel

Catalogue Number:

48283

Product Name Price Qty

48283.1 - Diamond Cut Knurled Pattern Pull Bar Handle With Back Plate - 160mm Length (125mm Fixing Centres) x 18mm Diameter Grip - 200mm x 23mm Back Plate - Satin Stainless Steel - Each

£96.00 £80.00

Per Each

48283.2 - Diamond Cut Knurled Pattern Pull Bar Handle With Back Plate - 260mm Length (225mm Fixing Centres) x 18mm Diameter Grip - 300mm x 23mm Back Plate - Satin Stainless Steel - Each

£107.00 £89.17

Per Each

48283.3 - Diamond Cut Knurled Pattern Pull Bar Handle With Back Plate - 360mm Length (325mm Fixing Centres) x 18mm Diameter Grip - 400mm x 23mm Back Plate - Satin Stainless Steel - Each

£117.00 £97.50

Per Each

Enquire Now

Description

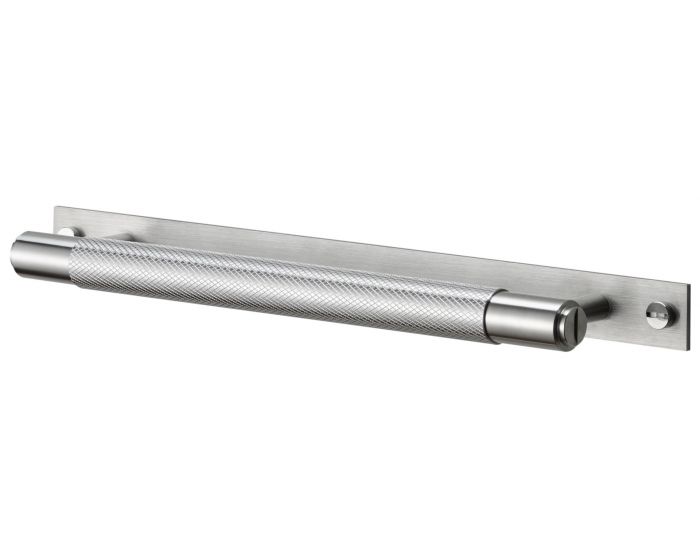

Buster & Punch knurled pattern cabinet pull bar handle with rectangular back plate, satin stainless steel.

Chunky industrial design with diamond cut knurled pattern grip.

Ideal for use on, kitchen cabinet doors, wardrobes, cupboard doors and drawers.

Size Details

Available in three sizes:

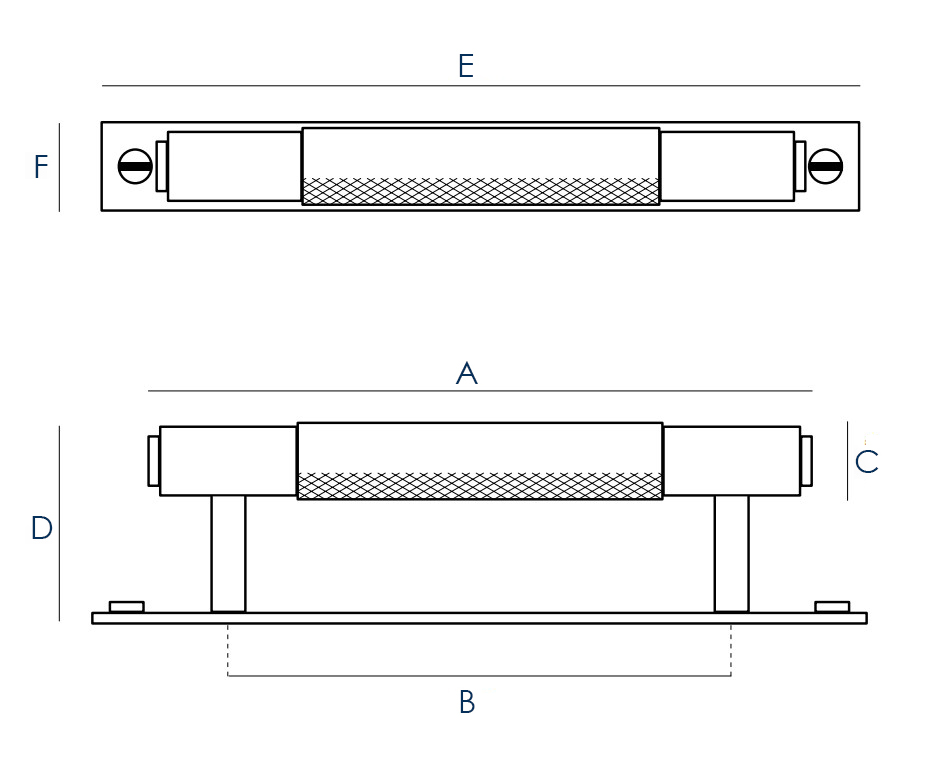

Buster & Punch Pull Bar Cabinet Handle With Back Plate - Dimensions Diagram

Item Code	Overall Length (A)	Fixing Centres (B)	Bar Diameter (C)	Projection (D)	Backplate Length (E)	Backplate Width (F)
48283.1	160mm	125mm	18mm	50mm	200mm	23mm
48283.2	260mm	225mm	18mm	50mm	300mm	23mm
48283.3	360mm	325mm	18mm	50mm	400mm	23mm

Finish Details

Satin Stainless Steel

Fixings

This cupboard handle is fitted via M5 bolts from the rear of the door / drawer - see below diagram.

Bolt through fixings provide a superior strong fixing allowing this knob to be fitted to tall or heavy doors.

Supplied with a 30mm long bolt - suitable for use on 18mm thick doors.

For doors thicker then 18mm, longer M5 fixing bolts are required, please contact us with your requirements.

Unit Of Sale

Each - (1 x cupboard handle).

Download

Download PDF Data Sheet

Specification

More Information
Item	48283
Item Code	48283
Finish	Satin Stainless Steel
Dimensions	160mm / 260mm / 360mm Lengths x 18mm Diameter
Sold Per	Each
Availability	Non stock product - please allow 5-7 days for delivery
