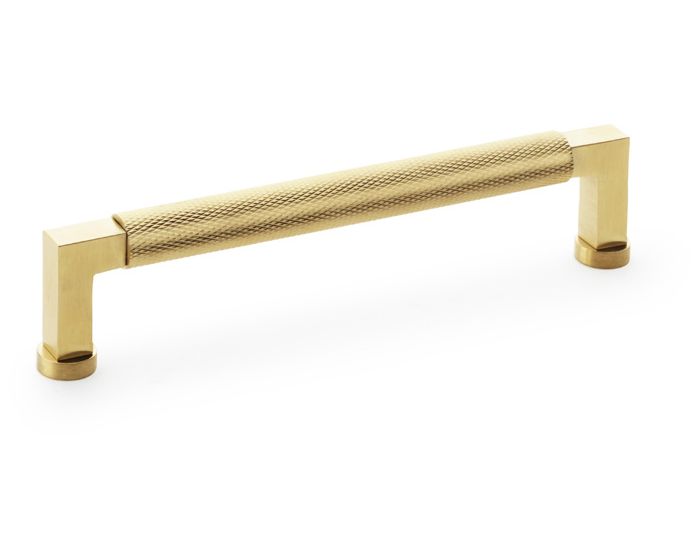

Camille Knurled Cabinet Handle - Satin Brass PVD

Catalogue Number:

51170

Product Name Price Qty

51170.1 - Camille Knurled Cabinet Handle - 176mm Overall Length (160mm Fixing Centres) - Satin Brass PVD - Each

£40.91 £34.09

Per Each

Suitable for use on kitchen cabinet doors, wardrobes, cupboard doors and drawers.

Diagram-Showing Dimensions Of A T-Bar Shape Cabinet Pull Handle

Bolt centers (A)	Overall Length (B)	Projection (C)	Diameter (D)
160mm	176mm	40mm	15mm

This handle is fitted via M4 bolts from the rear of the door / drawer - see below diagram.

Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer

Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors.
Comes supplied with M4 (diameter) x 25mm (long) bolts - Suitable for use on 18mm thick doors.
For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately. (See related products below).

T-bar handles are suitable for internal use.
For doors thicker then 18mm please purchase longer M4 fixing bolts. (See related products below).

More Information
Item	51170
Item Code	51170
Finish	Satin Brass PVD
Dimensions	176mm Overall Length (160mm Fixing Centres)
Sold Per	Each
Availability	Non stock product - Please allow 2 - 4 days for delivery
