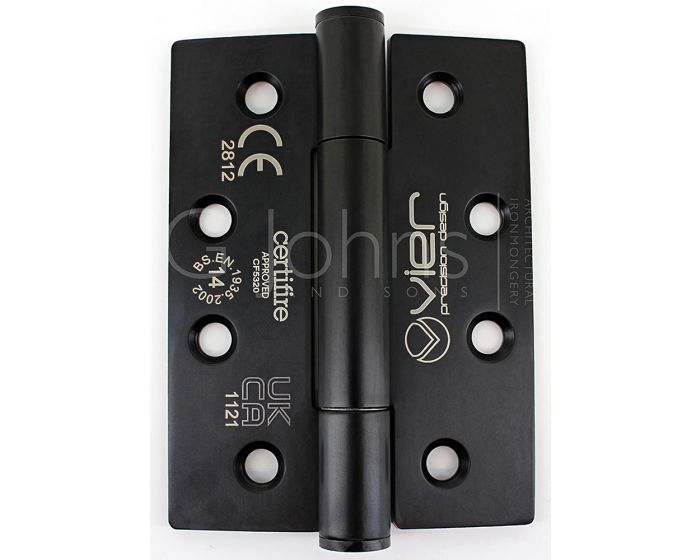

Polymer Bearing Grade 14 Hinges - Self Lubricating - CE Marked / UKCA Marked - Fired Rated - Certifire Approved - 160kg Weight Limit - 102mm x 76mm - Matt Black

• Grade 14 concealed polymer bearing self-lubricating hinges.
• Fire rated, CE Marked / UKCA Marked and Certifire approved.
• These Hi-Load matt black hinges have been designed and tested for high use, heavy commercial-grade doors.
• Designed to "Fit and Forget" these concealed door hinges have excellent wear-ability with self-lubricating polymer bearings.
• Tested and passed to British standard EN.1935 2002 overall grade 14.
• Tested to grade 7 door mass suitable for doors up to 160kg in weight.
• The bearing avoids metal to metal movement by using polymer bushes in the knuckle, impregnated with a specially formulated lubricant. This construction eliminates the wear and regular maintenance required by other types of hinges.
• Made from stainless steel, with a matt black finish.

Dimensions

Standards This Product Conforms To

• Tested and passed to BS EN 1935* the British / European standard requirements and testing methods covering single axis hinges. Classification number - 4-7-7-1-1-4-0-14.
• *To meet this standard 2mm thick intumescent liners should be fitted behind each leaf of the hinge.
• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. These hinges have been assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.
• CE Marked / UKCA Marked
• Certifire approved

Usage

• Suitable for use 44mm and 54mm thick wooden doors
• To pass fire regulations three hinges must be fitted per door (pair and a half).

Unit Of Sale

• The hinges are sold and priced in pairs (2 hinges). Hinges are also supplied with fixing screws.
