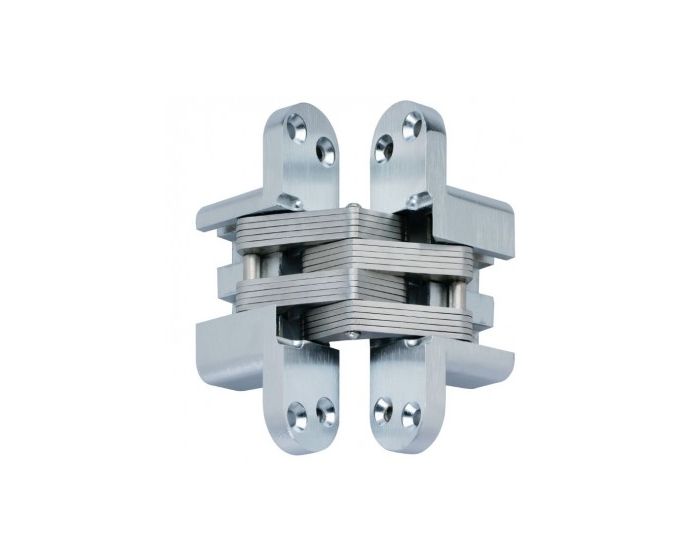

Concealed SOSS Style Hinges - 137.2mm x 33.6mm - Satin Chrome
Catalogue Number:
31522
- Concealed SOSS style hinges
- Size - 137.2mm x 33.6mm
- For door thickness 47mm - 51mm
- Opening angle 180 degree one way
- Zinc alloy hinge body and links
- Satin chrome plated finish
- Max door weight (per 3 hinges) - 70kg
- Complete with fixing Screws
- PLEASE NOTE THE SOSS STYLE CONCEALED HINGES ARE SOLD INDIVIDUALLY - (EACH HINGE)
Dimensions
| Item Code | Height (H) | Leaf Width (W) | To Suit Door Thickness (DT) |
Max Door Weight- (Per 3 Hinges) | Distance To Door Edge (X) | Plate Thickness (A) | Mortice Depth (B) | Mortice Height (C) |
|---|---|---|---|---|---|---|---|---|
| 31522.1 | 137.2mm | 33.6mm | 47mm - 51mm | 70kg | 7.5mm | 11.1mm | 49.3mm | 73.3mm |
| Item | 31522 |
|---|---|
| Item Code | 31522 |
| Finish | Satin Chrome |
| Dimensions | 137.2mm x 33.6mm |
| Sold Per | Each |
| Availability | Stock product - please allow 1-3 days for delivery |
Stock product - please allow 1-3 days for delivery
