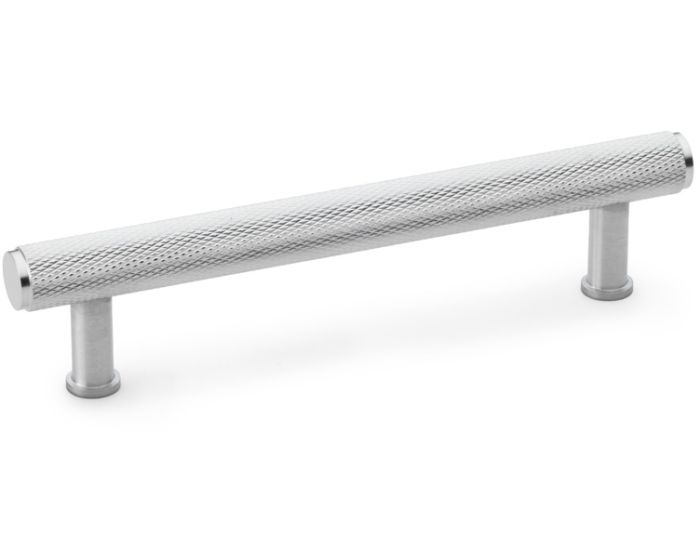

Crispin Knurled T-bar Cabinet Handle - Available In Three Sizes - Satin Chrome

Catalogue Number:

51181

Product Name Price Qty

51181.1 - Crispin Knurled T-bar Cabinet Handle - 166mm Overall Length (128mm Fixing Centres) - Satin Chrome - Each

£25.90 £21.58

Per Each

51181.2 - Crispin Knurled T-bar Cabinet Handle - 198mm Overall Length (160mm Fixing Centres) - Satin Chrome - Each

£30.71 £25.59

Per Each

51181.3 - Crispin Knurled T-bar Cabinet Handle - 262mm Overall Length (224mm Fixing Centres) - Satin Chrome - Each

£37.20 £31.00

Per Each

Suitable for use on kitchen cabinet doors, wardrobes, cupboard doors and drawers.

Diagram-Showing Dimensions Of A T-Bar Shape Cabinet Pull Handle

Item Code	Bolt centers (A)	Overall Length (B)	Projection (C)	Diameter (D)
51181.1	128mm	156mm	38mm	15mm
51181.2	160mm	198mm	38mm	15mm
51181.3	224mm	260mm	38mm	15mm

This handle is fitted via M4 bolts from the rear of the door / drawer - see below diagram.

Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer

Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors.
Comes supplied with M4 (diameter) x 25mm (long) bolts - Suitable for use on 18mm thick doors.
For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately. (See related products below).

T-bar handles are suitable for internal use.
For doors thicker then 18mm please purchase longer M4 fixing bolts. (See related products below).

More Information
Item	51181
Item Code	51181
Finish	Satin Chrome
Dimensions	166mm Overall Length (128mm Fixing Centres), 198mm Overall Length (160mm Fixing Centres), 262mm Overall Length (224mm Fixing Centres)
Sold Per	Each
Availability	Non stock product - Please allow 2 - 4 days for delivery
