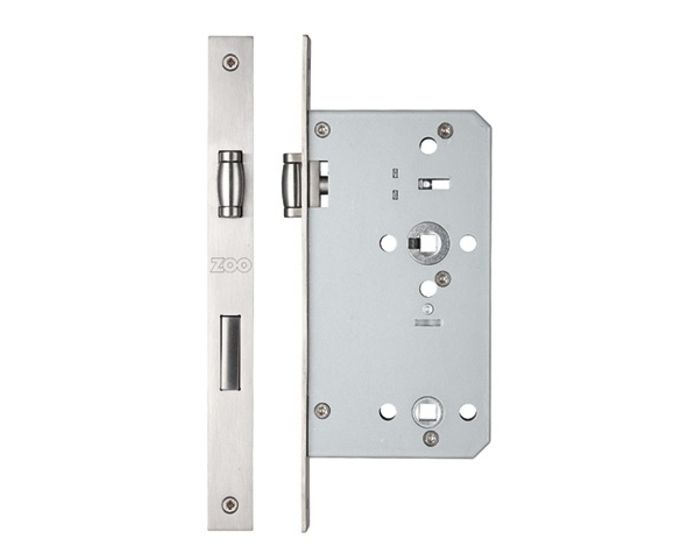

DIN Style Roller Ball Bathroom Mortice Lock - 60mm Backset - (78mm Centres) - Satin Stainless Steel

• DIN standard roller ball bathroom mortice lock.

• 5mm follower for use with standard UK bathroom snib turn & release systems

• Brushed satin stainless steel finish.

• Case size 165mm x 90mm.

• 60mm backset with 78mm centers between the lever spindle hole and the bathroom spindle hole.

• Satisfies BS 8300 and Approved Doc M (ADM). - Suitable for use in public and commercial buildings.

• For use on bathroom and WC doors that require lever door handles and need to be locked via a snib turn & release system.

• Comes supplied with satin (brushed) stainless steel forend and frame mounted strike plate.

Operation

• Latch is withdrawn via a lever handle from either side of the door. (handles sold separately).

• Deadbolt is thrown and withdrawn (locked & unlocked) in two ways
• 1. Via a bathroom snib turn & emergency release set (sold separately).
• 2. Via a lifting an unsprung lever handle up and down through 90 degrees.

• Suitable for use on inward or outward opening doors.

Features

• Heavy duty lock case and stainless steel striker plate for the door frame.

• Solid stainless roller ball latch and deadbolt.

• Bolt through facility for bolt together fixing of lever handles and accessories at 38mm centers.

• 10 year mechanical guarantee as standard.

• Reversible and adjustable strike plate.

• Complete with black plastic frame box keep to sit behind the strike plate.

Finish

• Satin stainless steel - (brushed finish).

Dimensions

Options Available To Order

• This lock is also available to order with radius (rounded shape) forened and strike plates. Please contact us for lead times and prices.

Extra Items Required For This Lock

• Lever door handles.

• A turn & emergency release set - (used to lock and unlock the door).

Unit Of Sale

• Each - (1 x lock case supplied with forend, strike plate and black plastic back box).
