Eclisse Sliding Pocket Door System - Single Door Kit - 95mm Finished Wall Thickness

Catalogue Number:
49291
Full Description Related Products
Product Name Price Qty
49291.1 - Eclisse Sliding Pocket Door System - Single Door - 95mm Finished Wall Thickness - Door Size - 610mm x 1981mm
£298.80 £249.00

Per Kit
49291.2 - Eclisse Sliding Pocket Door System - Single Door - 95mm Finished Wall Thickness - Door Size - 686mm x 1981mm
£310.80 £259.00

Per Kit
49291.3 - Eclisse Sliding Pocket Door System - Single Door - 95mm Finished Wall Thickness - Door Size - 762mm x 1981mm
£310.80 £259.00

Per Kit
49291.4 - Eclisse Sliding Pocket Door System - Single Door - 95mm Finished Wall Thickness - Door Size - 838mm x 1981mm
£322.80 £269.00

Per Kit
49291.5 - Eclisse Sliding Pocket Door System - Single Door - 95mm Finished Wall Thickness - Door Size - 914mm x 1981mm
£322.80 £269.00

Per Kit
49291.6 - Eclisse Sliding Pocket Door System - Single Door - 95mm Finished Wall Thickness - Door Size - 626mm x 2040mm
£298.80 £249.00

Per Kit
49291.7 - Eclisse Sliding Pocket Door System - Single Door - 95mm Finished Wall Thickness - Door Size - 726mm x 2040mm
£310.80 £259.00

Per Kit
49291.8 - Eclisse Sliding Pocket Door System - Single Door - 95mm Finished Wall Thickness - Door Size - 826mm x 2040mm
£310.80 £259.00

Per Kit
49291.9 - Eclisse Sliding Pocket Door System - Single Door - 95mm Finished Wall Thickness - Door Size - 926mm x 2040mm
£322.80 £269.00

Per Kit
49291.11 - Eclisse Sliding Pocket Door System - Single Door - 95mm Finished Wall Thickness - Door Size - 1026mm x 2040mm
£334.80 £279.00

Per Kit
Enquire Now
  • The Eclisse sliding door gear system is designed for use with sliding internal pocket hideaway doors weighing up to 80kg.
  • Allows an interior door to slide into a "pocket" within the wall cavity.
  • Each set includes all the main components needed to install a long lasting, smooth running sliding door including steel wrapped studs used to create the wall cavity or "pocket" for the door to slide into.
  • This high quality sliding door gear is suitable for residential and commercial applications. The unique design allows doors between 35mm-45mm thick to be installed with a finished wall of 95mm.
  • Supplied as a kit to create the pocket, which can be fully fitted in under 60 minutes by a skilled installer.
  • Suitable for use with timber doors only - door not included.
  • Unlike other pocket door systems on the market the Eclisse system comes supplied complete with timber lining - jamb kits.
Diagram showing the wooden jamb kit supplied with the Eclisse sliding pocket door system





Accessories Available To Suit Eclisse System

  • Soft close mechanism - to dampen softly close the sliding door. - (sold separately).
  • Self closing mechanism - automatically pulls the door closed each time the door had been opened. - (sold separately).
  • Motorised units - to automatically open the door. (sold separately).

Features & Benefits

  • Space saving - sliding doors help create up to 8% more living more space within a property
  • Easy access
  • Quiet operation
  • Easy installation
  • Economical
  • Prefabricated components

Dimensions - Frame Sizes & Door Kit Sizes Available

Eclisse-Sliding-Pocket-Door-System-Frame-And-Door-Dimensions-Diagram

Item Code Door Size (DW x DH) Max Passage Size (PW x PH) Overall Frame Size (W x H) Finished Wall Thickness
49291.1  610mm x 1981mm - (2ft. 0in. x 6ft. 6in.) 585mm x 1971mm 1279mm x 2061mm  95mm*
49291.2 686mm x 1981mm - (2ft. 3in. x 6ft. 6in.) 661mm x 1971mm 1455mm x 2061mm 95mm*
49291.3 762mm x 1981mm - (2ft. 6in. x 6ft. 6in.) 737mm x 1971mm 1631mm x 2061mm 95mm*
49291.4 838mm x 1981mm - (2ft. 9in. x 6ft. 6in.) 813mm x 1971mm 1707mm x 2061mm 95mm*
49291.5 914mm x 1981mm - (3ft. 0in. x 6ft. 6in.) 900mm x 1971mm 1894mm x 2061mm 95mm*

49291.6 626mm x 2040mm  600mm x 2030mm 1294mm x 2120mm 95mm*
49291.7 726mm x 2040mm  700mm x 2030mm 1494mm x 2120mm 95mm*
49291.8 826mm x 2040mm  800mm x 2030mm 1694mm x 2120mm 95mm*
49291.9 926mm x 2040mm  900mm x 2030mm 1894mm x 2120mm 95mm*
49291.11 1026mm x 2040mm 1000mm x 2030mm 2094mm x 2120mm 95mm*
  • * Single door kit to suit a 115mm finished wall thickness also available - see product 49292
  • Please note plasterboard is not provided with this kit and must be bought separately.

Finshed Wall Thickness

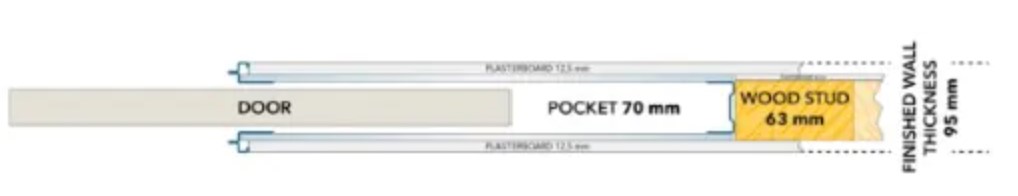

  • 95mm finished wall thickness - designed for use with 63mm wooden studwork.

Eclisse-95mm-Finished-Wall-Thickness-Studwork-Diagram



Items Included Within The Eclisse Pocket Sliding Door Kit

  • Metal frame work to create the "pocket"
  • Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
  • Roller bearing door hanger kit
  • Timber lining kit - (door jamb kit) including brush seals and rubber bumpers.



Eclisse Standard Pocket Door Kit - Installation Video

Eclisse Jamb Kit - Installation Video

More Information
Item 49291
Item Code 49291
Finish -
Dimensions 95mm Finished Wall Thickness
Sold Per Kit
Availability Non stock product - sent direct from factory - please allow 1-2 working days for delivery
Non stock product - sent direct from factory - please allow 1-2 working days for delivery
Download PDF Data Sheet
