Architectural Quality Euro Profile Mortice Sash Lock Case - CE / UKCA Marked - Fire Rated - Certifire Approved - Polished Brass PVD Plated

Catalogue Number:
30128
Full Description Related Products
Product Name Price Qty
30128.1 - Architectural Quality Euro Profile Sash Lock Case - CE / UKCA Marked - Fire Rated - Certifire Approved - 64mm Case Depth - (44mm Backset) - Polished Brass PVD Plated
£24.12 £20.10

Per Each
30128.2 - Architectural Quality Euro Profile Sash Lock Case - CE / UKCA Marked - Fire Rated - Certifire Approved - 76mm Case Depth - (57mm Backset) - Polished Brass PVD Plated
£24.12 £20.10

Per Each
Enquire Now
  • Architectural quality Euro profile mortice sash lock case from the Eurospec - E*S - Easi-T range.
  • For use on doors that require door handles and need to be locked via a Euro profile cylinder.
  • 47.5mm Euro centres.
  • Must be used in conjunction with some form of door handle and Euro cylinder.

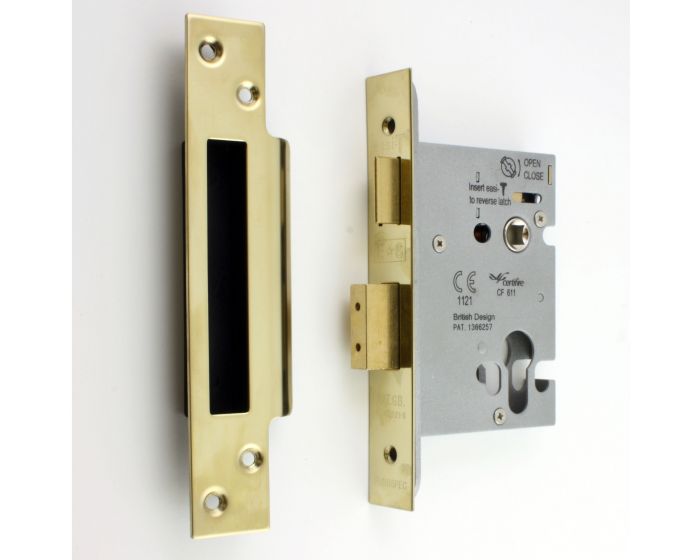

  • Comes supplied with a PVD brass (shiny finish) forend and frame mounted strike plate including black plastic back box.

Operation

  • Latch is withdrawn via a lever handle from either side of the door (handles sold separately).
  • Deadbolt is locked and un-locked via a  Euro profile cylinder (sold separately).

Features

  • Solid brass guided latch.
  • Solid brass deadbolt with anti-saw rollers.
  • Medium to heavy weight springing.
  • Adjustable spring strength, ideal for use with sprung or un-sprung lever furniture. (Spring strength can be adjusted by simply removing a screw on the edge of the lock case).
  • Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
  • 8mm x 8mm spindle follower (to suit standard UK size spindles).
  • Patented Easi-T latch reversal mechanism - the latch can be reversed on site without taking the lock case apart.
  • Reversible and adjustable strike plate.



Security Level

  • Medium security architectural range.
  • Suitable for use on internal doors in residential, commercial or public buildings.

Finish

  • PVD brass.



Alternative Finishes Available

  • Polished stainless steel.
  • Satin stainless steel.
  • Florentine bronze.

Dimensions

  • Available in two sizes
  • 64mm case depth (44mm backset).
  • 76mm case depth (57mm backset).

dimensions of the Eurospec E*S - architectural quality Euro profile mortice sash lock case


Item CodeLock Case Depth (A)Backset To Keyhole (B)Euro Centres
ESS5325PVD64mm44mm47.5mm
ESS5330PVD76mm57mm47.5mm

Standards This Product Conforms To

  • Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F2BA20.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
  • Certifire approved.
  • CE Marked / UKCA Marked.
  • Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

  • This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.
  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.

Rebate Kit For Double Rebated Doors

  • ARS5105PVD - 13mm PVD brass rebate kit for use with Eurospec architectural sash locks.

Unit Of Sale

  • Each - (1 x lock case supplied with forend, strike plate and plastic back box).
More Information
Item 30128
Item Code 30128
Finish Polished Brass PVD Plated
Dimensions 64mm or 76mm Case Depth - (47.5mm Euro Centres)
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
