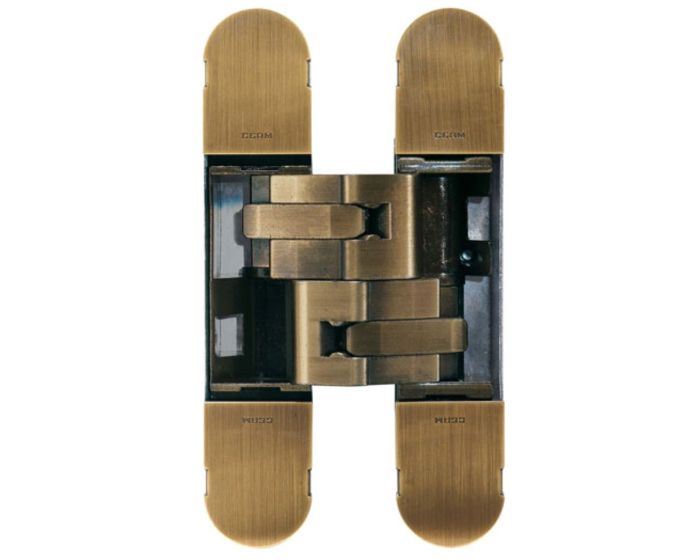

Fire Rated Concealed Adjustable Hinge For Invisible Doors - Tested To FD30 / FD60 - 160mm x 32mm - Antique Brass (Lacquered)

Catalogue Number:
43438
Full Description Related Products
Product Name Price Qty
43438.1 - Concealed Adjustable Hinge For Invisible Doors - FD30 / FD60 Fire Rated - 160mm x 32mm - Antique Brass (Lacquered) - Each - (1 Hinge)
£80.26 £66.88

Per Each
Enquire Now
  • 160mm x 32mm fire rated* adjustable concealed door hinge
  • Fire rated* - suitable for use on FD30 and FD60 fire doors * when used with the 43426 intumescent kit (see related products) *
  • Antique bronze finish.
  • Minimum door thickness 38mm.
  • Ideal for use with fire rated flush doors, where an invisible or hidden door look is required.
  • Cover caps hide the adjustment and fixing screws for an a minimalist look.
  • Totally recessed making the gap between door and frame very small.
  • Easy to install and maintain
  • 3D adjustable design (door can be adjusted vertically, horizontally and laterally).
  • Opening angle up to 180 (when used with architrave free door frames).



Weight Limits

  • Max door weight with 2 x hinges fitted - 80kg
  • Max door weight with 3 x hinges fitted (hinges fitted top,middle and bottom) - 120kg
  • Max door weight with 3 x hinges fitted (hinges fitted 2 x top,and 1 x bottom) - 140kg



Finish

  • Antique bronze.

Dimensions
  • 160mm height x 32mm width x 29mm depth.




Diagram Showing Dimensions The Fire Rated FD30 / FD60 Concealed Invisible Hinge 160mm x 32mm

  • 3D Adjustable
  • +/- 3mm Side
  • +/- 3mm Height
  • +/- 1.5mm Compression

Installation & Adjustment Videos




More Information
Item 43438
Item Code 43438
Finish Antique Brass (Lacquered)
Dimensions 160mm x 32mm
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each - (1 Hinge)
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
