Full Overlay Concealed Kitchen And Wardrobe Hinges Antique Brass Plated

Shop Our Blum-Style Soft Close Hinges

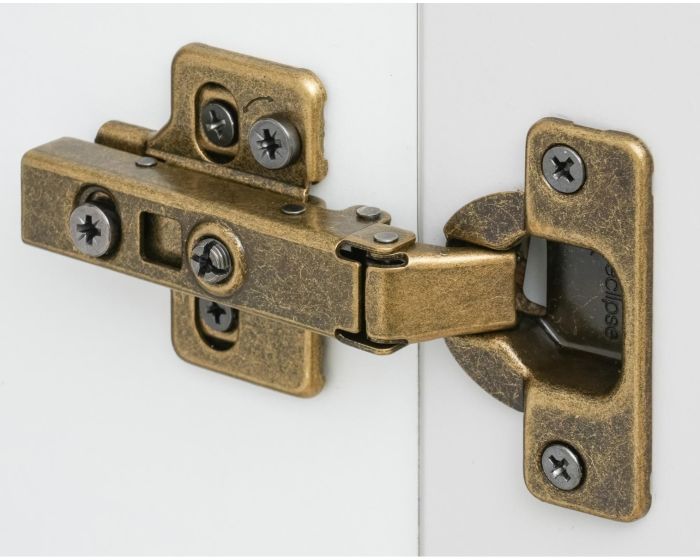

• Antique brass plated concealed Blum-style soft close hinge and 3-way adjustable clip-on mounting plate.
• Our  soft-close hinges are suitable for doors that overlay the carcass only. (Overlay doors sit on top of the cupboard door frame.
• Featuring a high architectural quality clip-on design with a built-in soft closing device. No more slamming cupboard doors, just a gentle push and the cabinet door will self close coming to a controlled soft stop.
• 3-way adjustability the door can be adjusted vertically (moving the door up and down), horizontally (moving the door side to side) and in and out (moving the door from or towards the carcass).
• The sprung hinge keeps the door held closed. There is no need for any kind of cupboard catch.
• Standard 35mm diameter cup with a 105-degree opening angle
• Our soft close hinges come supplied adjustable clip-on mounting plate.

Suitable For Use On Overlay Style Doors Only

• Overlay soft-close hinges are suitable for doors that sit on top of the cabinet carcass.
• The diagram below shows how an overlay hinge is fitted. (Notice how the door sits in front of the cupboard frame).

Clip On Design

• This hinge is supplied with an adjustable clip-on mounting plate. This plate allows the door to be fully adjusted and quickly removed by simply pushing a small button at the very tip of the hinge.
• The diagram below shows how the concealed Blum-style hinge clips on and off from the mounting plate.

Base Material

• Our concealed soft close hinges are made from steel.

Finish Details

• Antique brass plated (supplied with black screws).

3 Way Adjustable Hinge

• This overlay soft close hinge can be adjusted in 3 directions. - (see below diagram).
• Lateral adjustment - turning the screw nearest to the cup allows the door to move side to side with a total movement of 5mm possible.
• Front-to-back adjustment - turning the screw at the tip of the hinge adjusts the door away from or toward the carcass with a total movement of 3.5mm possible.
• Vertical adjustment - turning the cam-operated screw on the mounting plate adjusts the height of the door up and down with a total movement of 4mm possible.

Size Details

• Standard 35mm diameter cup. (Hole diameter required to be drilled into the door).
• To suit doors 18mm - 22mm thick
• 105-degree opening angle.

Unit Of Sale

• Sold individually as a pack of two
• Supplied with an adjustable clip-on mounting plate and black screws.
