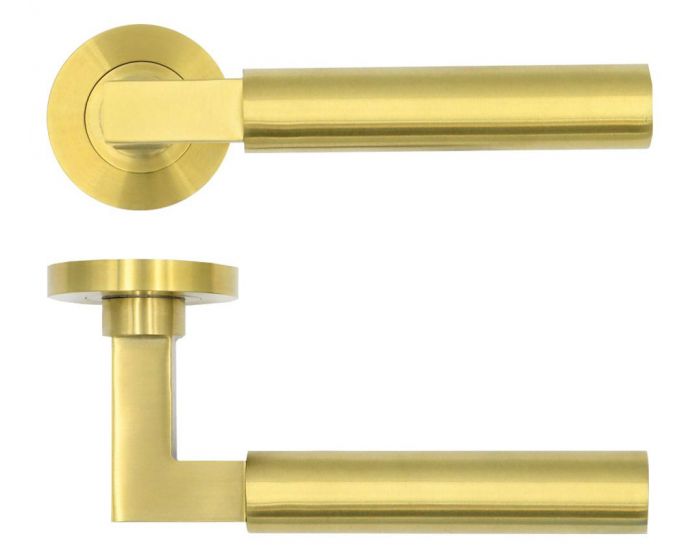

• Garda tubular lever door handles with square section neck and round rose lever handles
  • Suitable for commercial projects and public buildings
  • Concealed bolt through fixings via screw on rose.
  • Matching accessories available including standard escutcheons (keyhole covers) and a bathroom turn & release set.

How To Order Lever Handles With A Rose

  • For Non-Locking Doors - 1 x (Pair) Lever Handles Only

Diagram showing levers handle only for non-locking doors

  • For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

Diagram showing lever handles and standard escutcheons for locking doors

  • For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

Diagram showing lever handles with euro profile escutcheon for doors locking via Euro profile cylinder

  • For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Diagram showing lever handles with a bathroom turn and emergency release set for locking bathroom doors

Matching Accessories

  • Standard escutcheon - (key hole cover to suit regular "chubb style locks")
  • Euro profile escutcheon - (key hole cover to suit euro profile cylinders)
  • Turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors)

Base Material

  • Brass

Finish

  • PVD Satin Brass

Operation

  • Both levers are sprung to ensure the lever always returns to its starting position.

Dimensions

Garda-Tubular-Lever-Door-Handles-And-Round-Rose-Diagram

  • Rose Diameter - 50mm
  • Rose Thickness - 8mm
  • Lever Length - 135mm

Spindle Size

  • 8mm x 8mm square - UK Standard.

Fixings

  • Concealed bolt together fixings via male and female bolts.
  • Grub screw fixing to spindle for extra strength once fitted to the door.
  • Comes supplied with male and female bolt through fixings and 8mm heso fixing spindle.

Usage

  • Suitable for heavy duty commercial use.
  • Suitable for internal or external use.

Unit Of Sale

  • Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand).
More Information
Item 49307
Item Code 49307
Finish Satin Brass PVD Plated
Dimensions 50mm Rose Diameter
Sold Per Pair
Availability Non stock product - Please allow 3 - 4 days for delivery
Non stock product - Please allow 3 - 4 days for delivery
Download PDF Data Sheet
