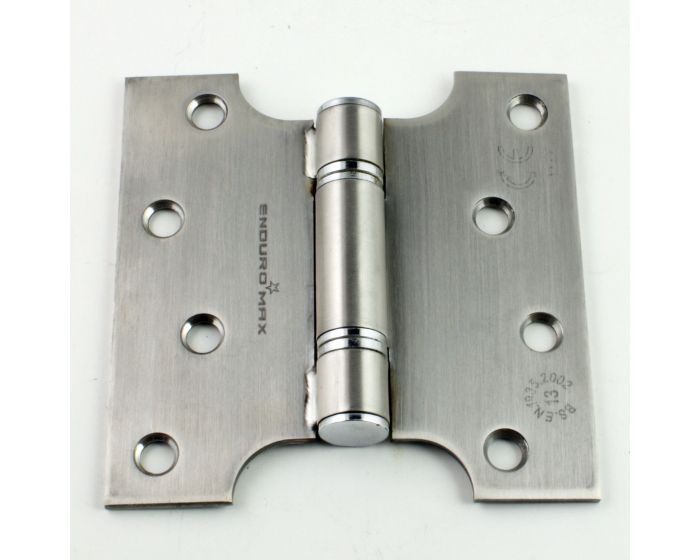

Fire Rated Parliament Projection Hinges - Grade 13 - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - Satin Stainless Steel
Fire Rated Parliament Projection Hinges - Grade 13 - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - Satin Stainless Steel
Full Description Related Products
Enquire Now
- Parliament projection hinges for double, patio and French doors.
- Projects doors clear of architraves, window boards or down pipes
- Hinges allow doors to fold back 180 degrees
- Parliament hinges suitable for doors up to 120kg (weight limit based on 3 x hinges)
- Heavy duty - for high use fire doors
- For exterior / interior use
- BS EN grade 13 - CE Marked / UKCA Marked
- These parliament hinges are suitable for 60 minute fire doors, when used in conjunction with intumescent hinge pad liners,
- Measurements are leaf height x inside clearance x fully open width
- Inside clearance measurement is between the wings of the hinge and is the maximum projection you can achieve on lightweight doors
- For glazed or solid doors, inset the hinge leaf an additional 15% each side, for example 30% less projection
- 25 year guarantee
Finish
Dimensions
![Diagram showing dimensions of the CE Marked / UKCA Marked fire rated parliament projection hinges - 102mm x 102mm]()
![Diagram showing dimensions of the CE Marked / UKCA Marked fire rated parliament projection hinges - 102mm x 127mm]()
Available in 3 Sizes
31143.1 - (102mm x 102mm x 4mm)
31143.2 - (102mm x 127mm x 4mm)
31143.3 - (102mm x 152mm x 4mm)
|
31143.1
|
31143.2
|
31143.3
|
Dimension On Diagram
|
Height |
102mm
|
102mm
|
102mm
|
A
|
Width |
102mm
|
127mm
|
152mm
|
B
|
Leaf Width |
26mm
|
26mm
|
26mm
|
C
|
Projection given |
50mm
|
76mm
|
102mm
|
D
|
Thickness |
4mm
|
4mm
|
4mm
|
N/A
|
Important Info Before You Buy
- Parliament hinges are used to help project or "throw" a door past an obstruction so it can fold back on it's self 180degrees
![Diagram of why regular hinges can't be used]()
- Suitable for wooden doors
- Hinges are sold and priced in pairs and come supplied with screws
More Information
Item |
31143 |
Item Code |
31143 |
Finish |
Satin Stainless Steel |
Fire Rated |
FD30 / FD60 - Fire Rated |
Sold Per |
Pair - (2 Hinges) |
Availability |
Non stock product - please allow 3-7 days for delivery |
