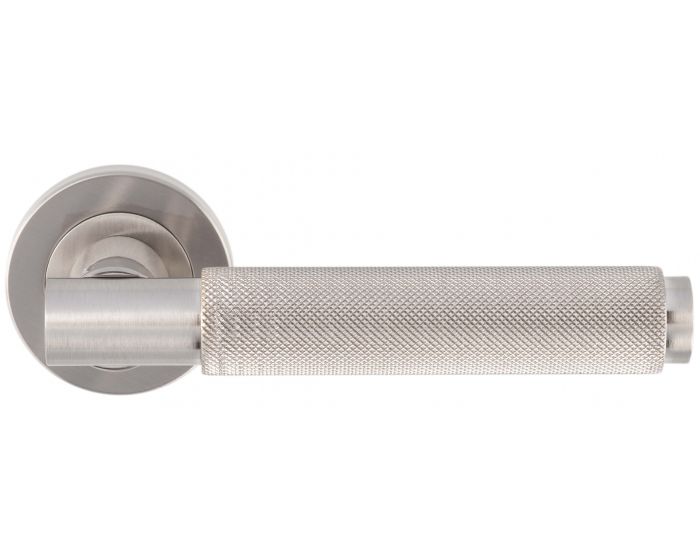

Knurled Design Lever Door Handles With Round Rose - Satin Nickel - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:
45061
Full Description Related Products
Product Name Price Qty
45061.1 - Knurled Design Lever Door Handles With Round Rose - Tested For Use With FD30 / FD60 Fire Doors - Satin Nickel - Pair
£112.98 £94.15

Per Pair
Enquire Now
  • Knurled round rose lever handles
  • Suitable for residential use or light commercial
  • Concealed bolt through fixings via three piece rose

How To Order Lever Handles With A Rose

  • For Non-Locking Doors - 1 x (Pair) Lever Handles Only

Diagram showing levers handle only for non-locking doors

  • For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

Diagram showing lever handles and standard escutcheons for locking doors

  • For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

Diagram showing lever handles with euro profile escutcheon for doors locking via Euro profile cylinder

  • For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Diagram showing lever handles with a bathroom turn and emergency release set for locking bathroom doors

Matching Accessories

  • Standard escutcheon - (key hole cover to suit regular "chubb style locks")
  • Euro profile escutcheon - (key hole cover to suit euro profile cylinders)
  • Turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors)

Base Material

  • Made from solid brass

Finish Details

  • Satin nickel

Operation

  • Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

Knurled Round Rose Lever Handles Diagram

  • Rose Diameter - 50mm
  • Rose Thickness - 10mm

Spindle Size

  • 8mm x 8mm square - UK Standard.

Fixings

  • Concealed bolt together fixings via male and female bolts
  • Grub screw fixing to spindle for extra strength once fitted to the door
  • Comes supplied with male and female bolt through fixings and 8mm spindle

Usage

  • Suitable for residential use
  • Suitable for internal or external use

Unit Of Sale

  • Lever handles are sold in pairs (One pair consists of 1x left hand and 1x right hand)
  • Escutcheons (key hole covers) are sold individually (each)
  • Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door)
More Information
Item 45061
Item Code 45061
Finish Satin Nickel
Dimensions -
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Pair
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
