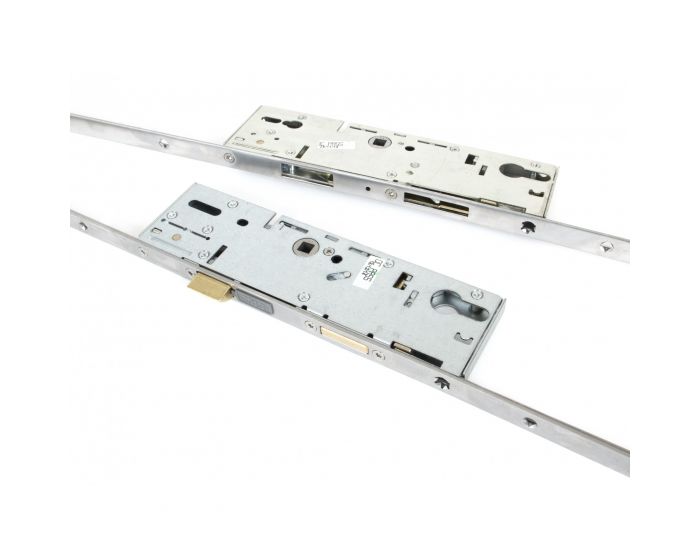

Multipoint Door Lock Set For External Timber / Wooden Double Doors 44mm To 57mm Thick - Lift Handle To Lock Operation

• Multipoint door lock set for external double timber / wooden doors.

• 7 point locking - 2 x hooks,1 x dead bolt, 4 x shoot bolts and 1 x latch,

• "Lift handle to lock" operation on both master and slave doors.

• Sold as a set which includes: main lock, slave lock, top & bottom bolts (x4), dead lock keeps (x4) and door latch strike plate.

• Must be used in conjunction with 2 x pairs of multi-point door handles and 2 x Euro profile cylinders - SOLD SEPARATELY.

• Options available to suit 44mm and 54mm thick doors.

• As standard these locks are suitable for doors up to 2115mm in height but can be extended to suit doors up to 2600mm in height by purchasing the extension rod 43964.1

Operation

• The slave door is locked via top and bottom shoot bolts which are activated and withdrawn via the use of multi-point door handles from either side of the door (handles sold separately). A Euro profile cylinder is then used to lock the shoot bolts in place (Euro cylinder sold separately).

• The master lock securely engages into slave mechanism.

• The hook bolts on the master lock are engaged and withdrawn via multipoint lever handles from either side of the door (handles sold separately).

• The deadbolt on the master lock is locked and un-locked via a Euro profile cylinder (sold separately).

Features

• No need for false (dummy) mullion.

• Suitable for use on left or right handed doors.

• Suitable for inward or outward opening doors.

• Medium weight springing, designed for use with spring assisted (sprung) door handles.

• Bolt through facility for standard multipoint door handles.

• 8mm x 8mm spindle follower (to suit standard UK size spindles).

• Latch can be reversed on site without taking the lock case apart.

Finish

• Stainless steel forend.

Dimensions

Unit Of Sale

• Double door kit which includes the following components:
• 1 x Master door multipoint lock (with 2 x hook bolts, latch and dead bolt).
• 1 x Slave door multipoint lock (with top and bottom shoot bolts).
• 4 x Shoot bolts (2 x top & bolts for the master door lock and 2 x top & bolts for the slave door lock).
• 4 x Shoot bolt keeps.
• 1 x Latch strike plate,
